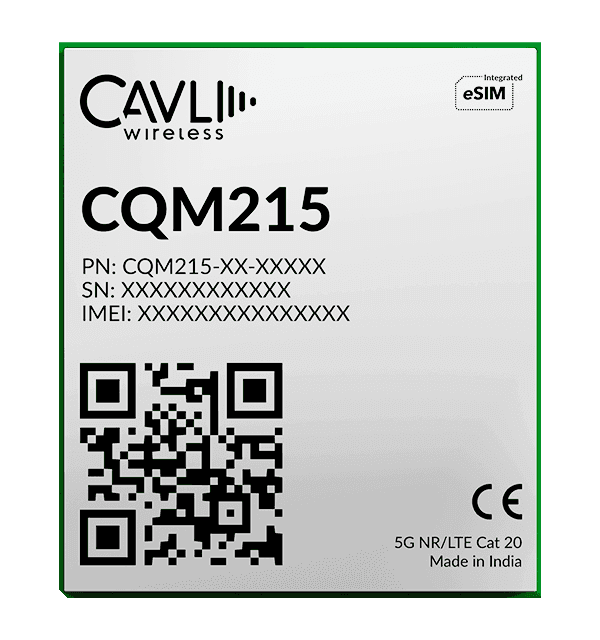

CQM215 5G NR IoT Module
CQM215 is a 5G-NR Advanced Sub-6 GHz module compliant with 3GPP Release 18 standards, designed for IoT and M2M applications. It delivers exceptional data throughput in 5G NR, offering up to 5.36 Gbps in downlink and 1.25 Gbps in uplink along with advanced carrier aggregation with 4CC capability. The module supports LTE Cat 20 fallback, ensuring reliable high-throughput connectivity in diverse network environments. With its global variant and LGA form factor, CQM215 is perfect for high-bandwidth applications requiring ultra-fast connectivity and location information. This makes it an ideal choice for use cases such as Industry 4.0, Smart Surveillance Solutions and more.
Key Highlights
5G NR
In-built GNSS
Open SDK Support
Integrated eSIM
OpenWrt OS
Cavli Hubble

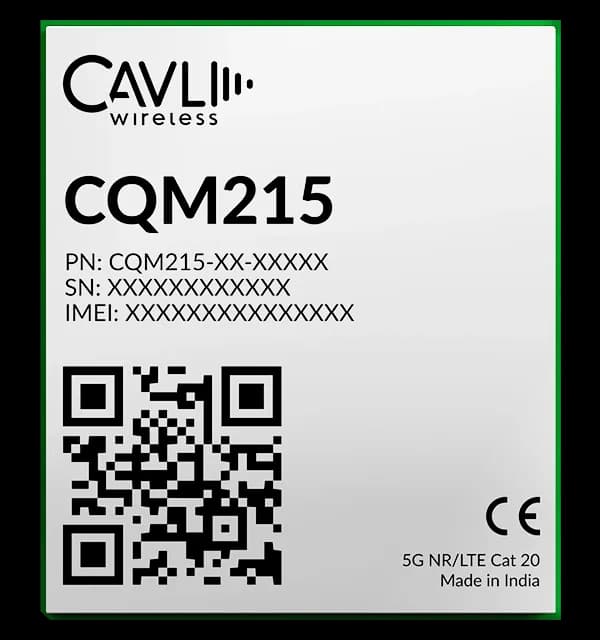

Available Form-Factors
formfactor
M.2
Technical Data
Cellular Bands Supported
5G : EA - n1/n3/n7/n8/n20/n28A/n38/n40/n41/n48/n75/n77/n78 NA - n2/n5/n7/n12/n13/n14/n25/n30/n48/n66/n71/n77/n78
4G : EA - B1/B3/B7/B8/B20/B28A/B32/B38/B40/B41/B42/B43/B48/B75 NA - B2/B4/B5/B7/B12/B13/B14/B17/B20/B25/B30/B42/B43/B48/B71
Supported Location Services
GPS, GLONASS, NavIC, BEIDOU, Galileo SBAS + QZSS Capable
OS
Linux / OpenWrt
Cellular Connectivity Download & Uplink Speed (* Peak Values)
5G NR : 7.01 Gbps (DL), 1.25 Gbps (UL)
4G : DL 2.0 Gbps, UL 211 Mbps
Packaging
Dimension : 45.0 x 52.0 x TBD, LGA FF
Interfaces
2xUART, 1xUSB2.0, 1xUSB3.1, 1xPCIe4.0, 2xPCIe3.0, 2xUSIM, 4xPWM, 2xSGMII, 1xI2S, 2xI2C, 2xSPI, 1xLCD, 1xADC, 1xJTAG, 11xGPIO, 4xNetworkStatus, 1xGNSS_ANT, 8xMAIN_ANT
Applicable Industries
Energy & Utilities
Manufacturing
Safety Security
Smart City
Automotive Logistics
