CQM211 5G NR IoT Module

CQM211 is a 5G-NR Advanced Sub-6 GHz module compliant with 3GPP Release 16, designed for IoT and M2M applications. It delivers up to 3.4 Gbps downlink and 550 Mbps uplink, with LTE Cat 16 fallback for reliable high-throughput connectivity across diverse networks. Powered by an Arm Cortex-A7 processor with up to 1 GB RAM and 512 MB ROM, the module runs Linux/OpenWrt and supports application development without an external host MCU. It also integrates GNSS with L1+L5 support for high-precision tracking. With a global variant and compact LGA form factor, CQM211 is ideal for high-bandwidth applications such as Industry 4.0 and smart surveillance.

Key Highlights

5G NR Advanced

Integrated GNSS

USB 3.1/2.0 Interface

ARM CortexA7 Processor

SDK Support

LTE Fallback

OpenWrt OS

Available Form-Factors

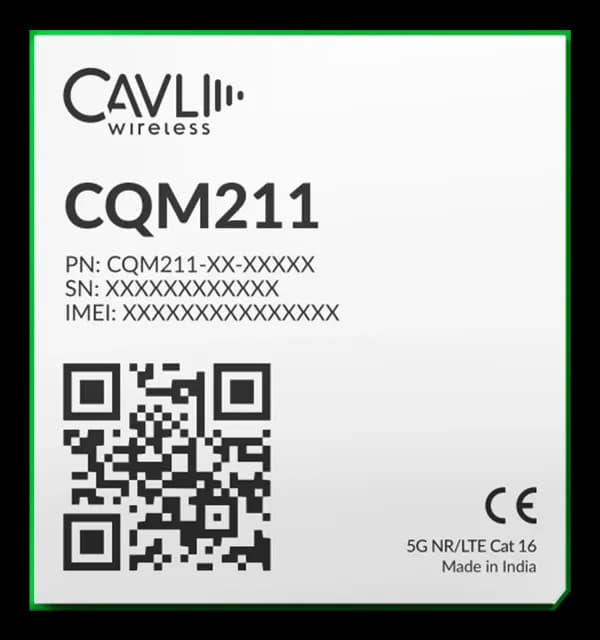

LGA

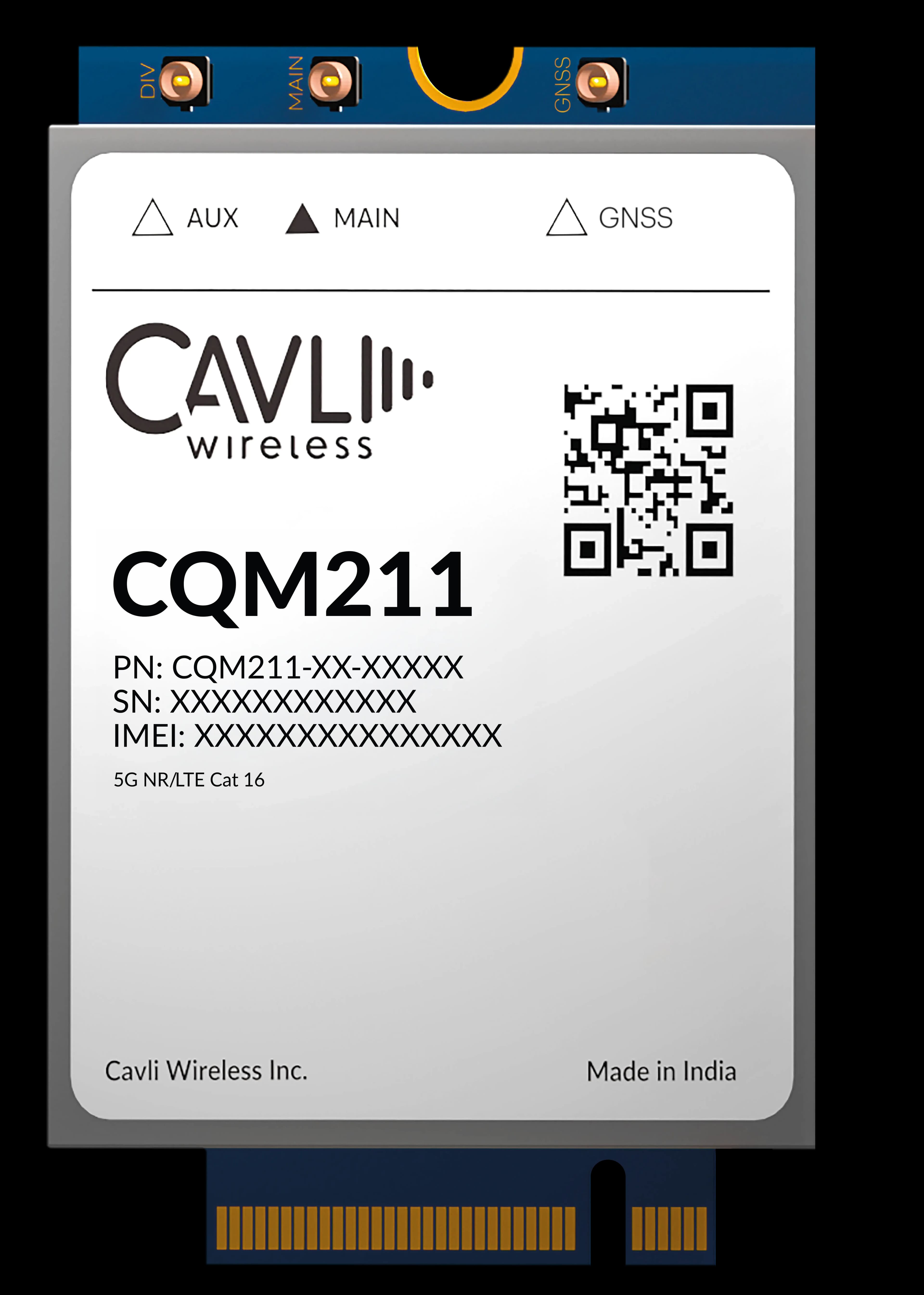

M.2

Technical Data

Cellular Bands Supported

WW :

LTE : 1/2/3/4/5/7/8/12/13/14/17/18

/19/20/25/26/28/34/38/39/40/41/42/43/48/66/71

NR : 1/2/3/5/7/8/12/13/14/18/20/25/26/28

/34/38/39/40/41/48/66/71/77/78

EA :

LTE : 1/3/5/7/8/18/19/20/26/28/38

/40/41/42/43/48

NR : 1/3/5/7/8/18/20/26/28/38/40/41/48/77/78

EAJ :

LTE : 1/3/5/7/8/18/19/20/26/28/34

/38/39/40/41/42 /43/48

NR : 1/3/5/7/8/18/20/26/28/34/38

/39/40/41/48/77/78

NA :

LTE : 2/4/5/7/12/13/14/17/18/19/25

/26/38/41/42/43/48/66/71

NR : 2/5/7/12/13/14/18/25/26/38

/41/48/66/71/77/78

IN :

LTE : 1/3/5/8/18/19/26/38/40/41/42/43/48

NR : 1/3/5/8/18/26/38/40/41/48/77/78

Supported Location Services

GPS/GLONASS/Galileo/BeiDou/NavIC/QZSS

Linux / OpenWrt

Cellular Connectivity Download & Uplink Speed (* Peak Values)

5G NR SA : DL 2.4Gbps & UL 900Mbps

5G NR NSA : DL 3.4Gbps & UL 550Mbps

Packaging

Dimension : 44.0 x 41.0 x 2.75 mm, LGA FF

Interfaces

UART x4, SDC x1, I2C x1, EBI x1, SPI x2 (Master Only), I2S x2, USIM x2, HS USB 3.1/2.0 x1, PCIe Gen3 x1, GPIO x16, ANTx5 (MAINx1, DIVx1, P_MIMOx1, D_MIMOx1, GNSSx1)

*Optional feature | **Requires SDK
