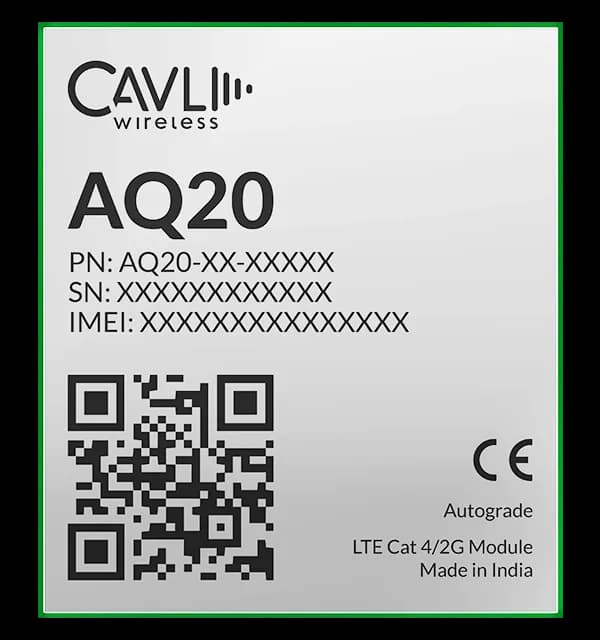

AQ20_LGA
AQ20_LGA
SCROLL

AQ20 Automotive Grade IoT module

AQ20 is an Automotive Grade Cat 4 IoT module with 2G fall back supporting 3GPP release 10 designed for IoT and M2M applications. It delivers a maximum data rate of 150 Mbit/s DL & 50 Mbit/s UL. AQ20 supports in-built GNSS with Qualcomm® IZat™ location technology Gen8C Lite (GPS, GLONASS, BeiDou/ Compass, Galileo and QZSS), for precise and dependable positioning. AQ20 supports VoLTE and SMS over IMS/SG/CS and supports wide set Internet protocols and industry-standard interfaces.

The module comes in 2 variants - AQ20-EA for the Europe and Asia market and AQ20-NA for the North America market. AQ20 is ideal for IoT applications that involve automotive specific use cases such Smart TCU, Connected OBD Solutions and Fleet management.

Key Highlights

In-built GNSS

In-built GNSS

SMS over IMS/SG/CS

SMS over IMS/SG/CS

VoLTE Support

VoLTE Support

USB 2.0 Interface

USB 2.0 Interface

2G Fallback

2G Fallback

Available Form-Factors

LGA

LGA

Technical Data

Cellular Bands Supported

EMEA & APAC : LTE- 1/3/5/7/8/20/28A/40 GSM- 900/1800MHz

NA : LTE- 2/4/5/7/12/13/25/66 GSM- 900 /1800 MHz

Supported Location Services

GPS / BDS / GLONASS / BeiDou / Galileo

OS

Yocto Linux

Cellular Connectivity Download & Uplink Speed (* Peak Values)

LTE Cat 4 : 150Mbps (DL), 50Mbps (UL)

GSM : 236.8Kbps (DL) & 236.8 Kbps (UL)

Packaging

Dimension : 33 x 37.5 x 2.8 mm, LGA Package

Interfaces

1xUSB 2.0 , 3xUART, 3xSDIO 3.0,2xSDC, 1xUSIM, 1xHSIC, 1xNetwork Indicator, 1xMobile Status Indicator, 1xSGMII, 1xPCM*, 2xI2C*, Main ANT, Diversity ANT, 1xGNSS ANT, 3xADC*, 3xMIC, 2xSPK, 3xADC

*Optional feature    |  **Requires SDK

Applicable Industries

icon

Automotive Logistics

Variants Available for Ordering Samples

ModulesGNSSFlash
AQ20-EU-44GNNYesYes512 MB / 512 MB512 MB / 512 MB
AQ20-EU-44GNHYesYes512 MB / 512 MB512 MB / 512 MB
* AQ20 is also available in eSIM and non-eSIM variants, with regional SKU's such as EAJ, EU, AN, LA, IN and NA in multiple memory configurations

Downloadable Resources

Product Brochure_Downloadable Resources

Product Brochure

Product Brochure_Downloadable Resources

Product Brochure

Go Beyond and Explore

1.

What GNSS capabilities does the AQ20 module offer?

The AQ20 module integrates Qualcomm Location Suite Gen8C Lite technology, supporting GPS, GLONASS, BeiDou, Galileo, and QZSS. This multi-constellation GNSS ensures high-precision positioning for automotive IoT applications like fleet management and Smart TCU systems.

2.

ow does the AQ20 module ensure robust and reliable connectivity in automotive environments?

The AQ20 module supports LTE Cat 4 with a fallback to 2G, covering multiple cellular bands across EMEA, APAC, and North America regions. This wide coverage ensures reliable connectivity in various automotive IoT use cases, including in-vehicle systems and telematics.

3.

Is the AQ20 module integrated with the Cavli Hubble Platform for device and connectivity management?

Yes, the AQ20 module is compatible with the Cavli Hubble Platform, enabling centralized device management, real-time monitoring, and eSIM provisioning, making global automotive IoT deployments more efficient. For more information, visit the Cavli Hubble Platform.

4.

What interfaces does the AQ20 module offer for automotive IoT applications?

The AQ20 module provides a comprehensive range of interfaces, including USB 2.0, multiple UART, I2C, and PCM, supporting a wide array of automotive peripherals and sensors. These interfaces facilitate seamless integration with vehicle systems for advanced IoT functionalities.

5.

How does the AQ20 module handle power management in automotive IoT deployments?

The AQ20 module is designed with automotive-grade power management features, including eDRX/DRX modes. These features optimize energy consumption, ensuring long-term reliability in automotive IoT applications.

6.

Is AQ20 an autograde module?

The AQ20 module is designed with Automotive quality processes such as APQP, PPAP and also conforms to IATF 16949:2016 quality management system standards to ensure that your automotive solutions are robust and reliable.

7.

Where can I purchase the AQ20 module, its Evaluation Kit (EVK), and download technical brochures?

You can purchase the AQ20 module and its Evaluation Kits (EVKs) through the Cavli Wireless store or from authorized distributors. Visit the AQ20 product page and select "ORDER SAMPLES" to purchase the module. If you need an Evaluation Kit, you can obtain it by clicking "ORDER DDKs". Detailed technical documents can be downloaded by navigating to "Downloadable Resources".
