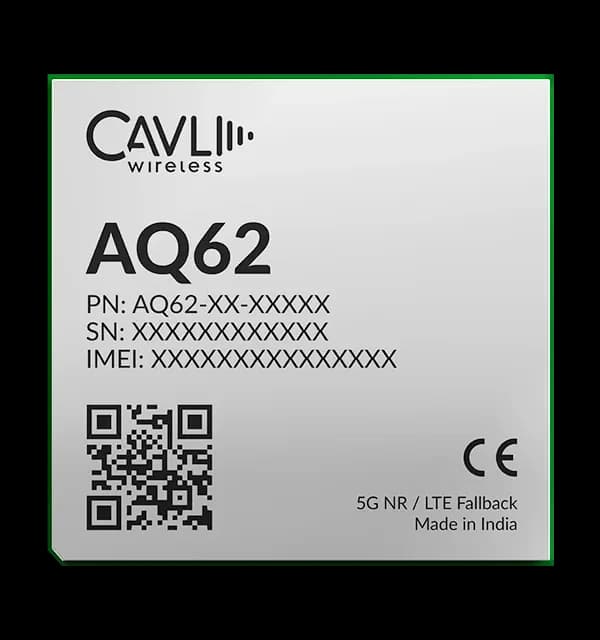

AQ62 Automotive Grade 5G NR Smart Module
The Cavli AQ62 is an automotive-grade 5G NR Sub-6 GHz smart module designed for next-generation telematics and connected vehicle applications. Powered by an Arm Cortex A55 quad-core CPU, the AQ62 delivers high-bandwidth and low-latency performance for advanced in-vehicle compute and communication workloads. Its communication subsystem integrates 5G NR connectivity with LTE Cat 18 fallback and supports 3GPP Release 16.
The AQ62 is available in five regional variants: Worldwide (WW), North America (NA), Eurasia and Japan (EAJ), India (IN), and Eurasia (EA). The module supports multi-constellation GNSS with GPS, GLONASS, Galileo, BeiDou, NavIC and QZSS, along with Qualcomm Location Suite Gen 9VT. Designed for connected mobility applications, the AQ62 is well suited for automotive clusters, vehicle telematics, ADAS systems and OBD solutions.
Variants Available for Ordering Samples
| Parameter | Options | Description |
|---|---|---|
| Product | AQ62 | Automotive 5G Module |
| Region SKU | WW / EAJ / EA / NA / IN | WW: World Wide · EAJ: Europe-Asia-Japan · EA: Europe-Asia · NA: North America · IN: India |
| RF Config. | 122 / 142 / 144 | 122: 1Tx + 2 Sub-2.7GHz Rx + 2 Sub-6GHz Rx · 142: 1Tx + 4 Sub-2.7GHz Rx + 2 Sub-6GHz Rx · 144: 1Tx + 4 Sub-2.7GHz Rx + 4 Sub-6GHz Rx |
| Memory | 84 / 88 / 164 / 168 | 84: 1GB RAM + 512MB NAND · 88: 1GB RAM + 1GB NAND · 164: 2GB RAM + 512MB NAND · 168: 2GB RAM + 1GB NAND |
| GNSS | GN / A / B | GN: GNSS enabled · A: GNSS L1 · B: GNSS L1 + L2/L5 |
| eSIM + Hubble | H / N | H: With eSIM + Hubble · N: Without eSIM + Hubble |
| HSM | H / N | H: With HSM · N: Without HSM |
Key Highlights
Quad core Arm Cortex A53 processor up to 2 GHz
5G NR Sub-6 GHz
5G RedCap
Automotive Grade
LTE Cat 18 Fallback
NG-eCall Support
SDK Support
In-built GNSS (L1+L5)
USB 2.0 Interface
USB 2.0 Interface
LGA Package
OpenSDK Support
VoLTE Support

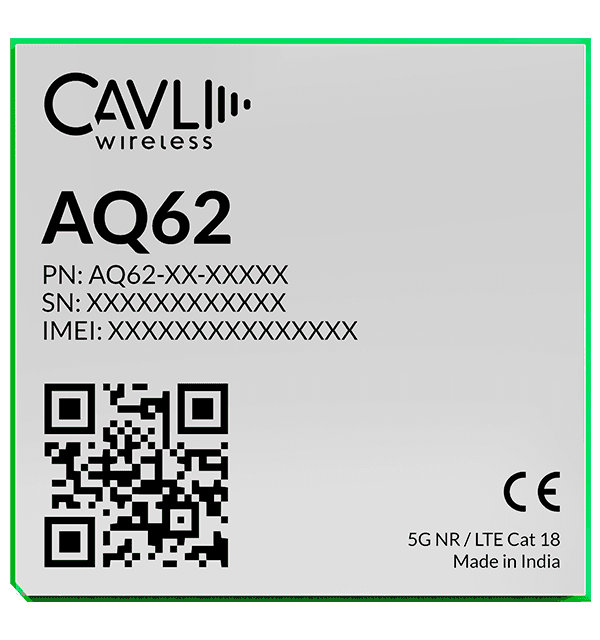

Available Form-Factor
LGA
Technical Data
Cellular Bands Supported
WW :
LTE : 1/2/3/4/5/7/8/12/13/14/17/18/19/20/25/26/28/34/38/39/40/41/42 /43/48/66/71
NR : 1/2/3/5/7/8/12/13/14/18/20/25/26/28/38/40/41/48/66/71/77/78/79
NA :
LTE : 2/4/5/7/12/13/14/17/18/19/25/26/38/41/42/43/48/66/71
NR : 2/5/7/12/13/14/18/25/26/38/41/48/66/71/77/78
EAJ :
LTE : 1/3/5/7/8/18/19/20/26/28/34/38/39/40/41/42/43/48
NR : 1/3/5/7/8/18/20/26/28/38/40/41/48/77/78/79
NTN** : 255/256
IN :
LTE : 1/3/5/8/18/19/26/38/40/41/42/43/48
NR : 1/3/5/8/18/26/38/40/41/48/77/78
NTN** : 255/256
EA :
LTE : 1/3/5/7/8/20/28/38/40/41/42/43/48
NR : 1/3/5/7/8/20/28/38/40/41/48/77/78
NTN** : 255/256
Supported Location Services
GPS/GLONASS/Galileo/BeiDou/NavIC/QZSS Qualcomm Location Suite Gen 9VT (L1+L2/L5)
OS
Linux / TelSDK
Cellular Connectivity Download & Uplink Speed (* Peak Values)
5G : DL 4.4 Gbps & UL 900 Mbps 2T4R | LTE 5xCC | NR 4xCC | 2x2 UL MIMO & 4x4 DL MIMO | ULCA, DLCA & ENDC support
Packaging
Dimension : 54.5 x 53.0 x TBD (mm scale), LGA package1
Interfaces
UART x4 | USIM x2 | USB x1 | SDC x2 (4-bit/8-bit) | I2C x2 | SPI x2 | I2S x3 | PCM x1 | RGMII/SGMII/USxGMII x1 | PCIe 4.0/3.0 x1 | PCIe 3.0 x1 | GPIO x19 | ANT x5
