CQM212 5G-NR Advanced IoT Module with eSIM, GNSS & LTE

CQM212 5G NR IoT Module

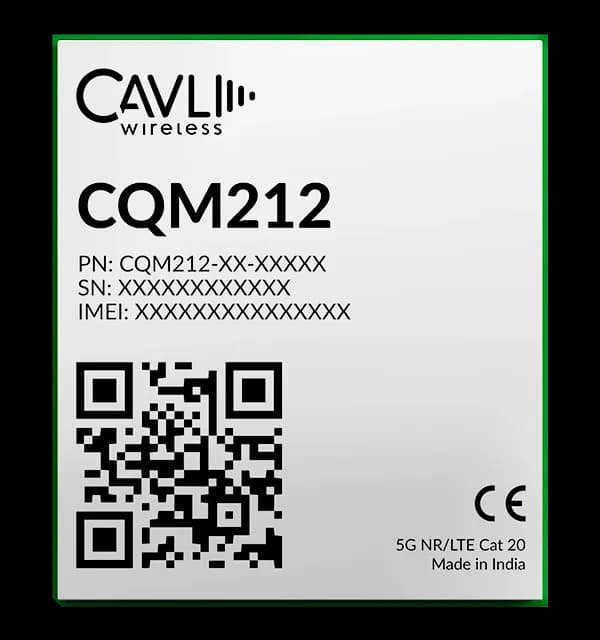

CQM212 is a 5G-NR Advanced Sub-6 GHz module compliant with 3GPP Release 18 standards, designed for IoT and M2M applications. It delivers exceptional data throughput in 5G NR, offering up to 5.36 Gbps in downlink and 1.25 Gbps in uplink along with advanced carrier aggregation with 3CC capability. The module supports LTE Cat 20 fallback, ensuring reliable high-throughput connectivity in diverse network environments. With its global variant and LGA form factor, CQM212 is perfect for high-bandwidth applications requiring ultra-fast connectivity and location information. This makes it an ideal choice for use cases such as Industry 4.0, Smart Surveillance Solutions and more.

Key Highlights

5G NR

In-built GNSS

Open SDK Support

Integrated eSIM

OpenWrt OS

Cavli Hubble

Available Form-Factors

FORMFACTOR

formfactor

M.2

M.2

Technical Data

Cellular Bands Supported

5G : EA - n1/n3/n7/n8/n20/n28A/n38/n40/n41/n48/n75/n77/n78 NA - n2/n5/n7/n12/n13/n14/n25/n30/n48/n66/n71/n77/n78

4G : EA - B1/B3/B7/B8/B20/B28A/B32/B38/B40/B41/B42/B43/B48/B75 NA - B2/B4/B5/B7/B12/B13/B14/B17/B20/B25/B30/B42/B43/B48/B71

Supported Location Services

GPS, GLONASS, NavIC, BEIDOU, Galileo SBAS + QZSS Capable

OS

Linux / OpenWrt

Cellular Connectivity Download & Uplink Speed (* Peak Values)

5G NR : 5.36 Gbps (DL), 1.25 Gbps (UL)

4G : DL 150 Mbps, UL 50 Mbps

Packaging

Dimension : 45.0 x 52.0 x TBD, LGA FF

Interfaces

2xUART, 1xUSB2.0, 1xUSB3.1, 1xPCIe4.0, 2xPCIe3.0, 2xUSIM, 4xPWM, 2xSGMII, 1xI2S, 2xI2C, 2xSPI, 1xLCD, 1xADC, 1xJTAG, 11xGPIO, 4xNetworkStatus, 1xGNSS_ANT, 8xMAIN_ANT

*Optional feature | **Requires SDK

Applicable Industries

Energy & Utilities

Manufacturing

Safety Security

Smart City

Automotive Logistics

Go Beyond and Explore

1.

What GNSS capabilities does the CQM212 module offer?

The CQM212 module integrates Qualcomm Location Suite Gen9VT, supporting GPS, GLONASS, NavIC, BeiDou, Galileo, SBAS, and QZSS. These GNSS capabilities provide precise location tracking for applications such as asset tracking and vehicular telemetry.

2.

Is the CQM212 module integrated with the Cavli Hubble Platform?

Yes, the CQM212 module is fully integrated with the Cavli Hubble Platform. This allows for seamless management of connectivity, device diagnostics, and remote provisioning via eSIM, simplifying large-scale IoT deployments. For more details, visit the Cavli Hubble Platform.

3.

What interfaces are available on the CQM212 module for IoT applications?

The CQM212 module offers a comprehensive set of interfaces, including I2C, UART, 12S, PCM, SDC, and PCIe. These interfaces support a wide range of peripherals, making the module versatile for use in applications such as smart cities, automotive systems, and industrial automation.

4.

How does the CQM212 module support global 5G and LTE connectivity?

The CQM212 module supports 5G NR with LTE Cat 20 Fallback, covering a wide array of cellular bands across different regions. This global connectivity ensures reliable operation in international IoT deployments.

5.

Where can I purchase the CQM212 module, its Evaluation Kit (EVK), and download technical brochures?

You can purchase the CQM212 module and its Evaluation Kits (EVKs) through the Cavli Wireless store or from authorized distributors. Visit the CQM212 product page and select "ORDER SAMPLES" to purchase the module. If you need an Evaluation Kit, you can obtain it by clicking "ORDER DDKs". Detailed technical documents can be downloaded by navigating to "Downloadable Resources".
