AQ65 Automotive Grade 5G NR Module
The Cavli AQ65 is an automotive-grade 5G NR Sub-6 GHz module designed for next-generation telematics and connected vehicle applications. Powered by an Arm Cortex A55 quad-core CPU, the AQ65 delivers high-bandwidth and low-latency performance for advanced in-vehicle compute and communication workloads. Its communication subsystem integrates 5G NR connectivity with LTE Cat 18 fallback and supports 3GPP Release 16.
The AQ65 is available in five regional variants: Worldwide (WW), North America (NA), Eurasia and Japan (EAJ), India (IN), and Eurasia (EA). The module supports multi-constellation GNSS with GPS, GLONASS, Galileo, BeiDou, NavIC and QZSS, along with Qualcomm Location Suite Gen 9VT. Designed for connected mobility applications, the AQ65 is well suited for automotive clusters, vehicle telematics, ADAS systems and OBD solutions.
Variants Available for Ordering Samples
| Parameter | Options | Description |
|---|---|---|
| Product | AQ65 | Automotive 5G Module |
| Region SKU | WW / EAJ / EA / NA / IN | WW: World Wide · EAJ: Europe-Asia-Japan · EA: Europe-Asia · NA: North America · IN: India |
| RF Config. | 122 / 142 / 144 | 122: 1Tx + 2 Sub-2.7GHz Rx + 2 Sub-6GHz Rx · 142: 1Tx + 4 Sub-2.7GHz Rx + 2 Sub-6GHz Rx · 144: 1Tx + 4 Sub-2.7GHz Rx + 4 Sub-6GHz Rx |
| Memory | 84 / 88 / 164 / 168 | 84: 1GB RAM + 512MB NAND · 88: 1GB RAM + 1GB NAND · 164: 2GB RAM + 512MB NAND · 168: 2GB RAM + 1GB NAND |
| GNSS | GN / A / B | GN: GNSS enabled · A: GNSS L1 · B: GNSS L1 + L2/L5 |
| eSIM + Hubble | H / N | H: With eSIM + Hubble · N: Without eSIM + Hubble |
| HSM | H / N | H: With HSM · N: Without HSM |
Key Highlights
Quad core Arm Cortex A53 processor up to 2 GHz
OpenWrt OS
5G RedCap
5G NR Sub-6 GHz
Automotive Grade
Integrated eSIM
SDK Support
Cavli Hubble
LCD Interface
USB 2.0 Interface
Applicable Region - GLOBAL

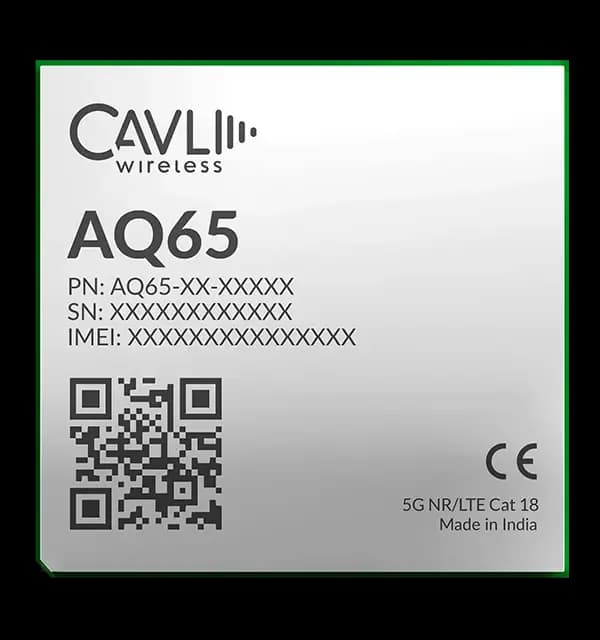

Available Form-Factor
LGA
Technical Data
Cellular Bands Supported
WW :
LTE : 1/2/3/4/5/7/8/12/13/14/17/18/19/20/25/26/28/34/38/39/40/41/42 /43/48/66/71
NR : 1/2/3/5/7/8/12/13/14/18/20/25/26/28/38/40/41/48/66/71/77/78/79
NA :
LTE : 2/4/5/7/12/13/14/17/18/19/25/26/38/41/42/43/48/66/71
NR : 2/5/7/12/13/14/18/25/26/38/41/48/66/71/77/78
EAJ :
LTE : 1/3/5/7/8/18/19/20/26/28/34/38/39/40/41/42/43/48
NR : 1/3/5/7/8/18/20/26/28/38/40/41/48/77/78/79
IN :
LTE : 1/3/5/8/18/19/26/38/40/41/42/43/48
NR : 1/3/5/8/18/26/38/40/41/48/77/78
EA :
LTE : 1/3/5/7/8/20/28/38/40/41/42/43/48
NR : 1/3/5/7/8/20/28/38/40/41/48/77/78
Supported Location Services
GPS/GLONASS/Galileo/BeiDou/NavIC/QZSS Qualcomm Location Suite Gen 9VT (L1+L2/L5)
OS
Yocto Linux 5.15
Cellular Connectivity Download & Uplink Speed (* Peak Values)
5G NR NSA : DL 4.6 Gbps & UL 550 Mbps
Packaging
Dimension : 54.5 x 53.0 x 2.85 (mm scale), LGA package1
Interfaces
UART x4 | USIM x2 | USB (3.1) x1 | USB (2.0) x1 | SDC x2 (4-bit/8-bit) | I2C x2 | SPI x2 | I2S x3 | PCM x1 | RGMII/SGMII/USxGMII x1 | PCIe 4.0/3.0 x1 | PCIe 3.0 x1 | GPIO x19 | ANT x5
