Understanding the Difference Between Smart Infotainment and Connected Cluster Solutions

The Connected Dashboard Experience

Walk into any modern vehicle today, and you will encounter two distinct yet interconnected digital ecosystems: the infotainment system and the instrument clusters.

The automotive infotainment system for cars serves as the heart of vehicle entertainment and connectivity systems, providing access to media, navigation, communication, and even vehicle settings. It acts as a driver’s interface, interacting with various in-car services, like music streaming, phone calls, voice assistants, and real-time traffic data. On the other hand, the instrument cluster in cars displays critical vehicle information, such as speed, fuel levels, engine diagnostics, and safety alerts, in real-time.

While they may seem similar—both featuring sleek screens and digital dashboards—they serve fundamentally different purposes and face unique challenges. Let’s understand automotive infotainment systems for cars and instrument clusters in detail.

Smart Infotainment System for Cars: The Entertainment Command Center

What is an Infotainment System?

Infotainment means a blend of "information" and "entertainment." In the context of automotive technology, an infotainment system refers to in-car systems that deliver entertainment (such as music, videos, or games) and provide information (like navigation, traffic updates, and vehicle data), all through a centralized interface. The goal is to keep the driver and passengers engaged, informed, and connected while maintaining safety.

Smart infotainment systems for cars represent the entertainment and information hub of modern vehicles. An infotainment system in a car typically includes a radio, media players, navigation systems, Bluetooth connectivity, Wi-Fi hotspots, smartphone integration, voice controls, rear seat entertainment screens, and climate controls.

The Components of Infotainment Systems

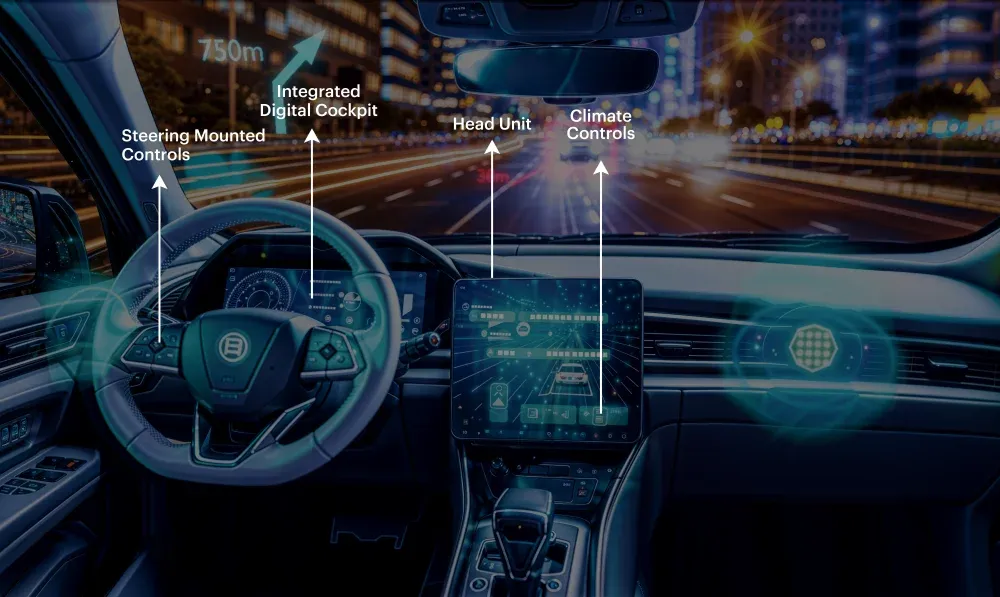

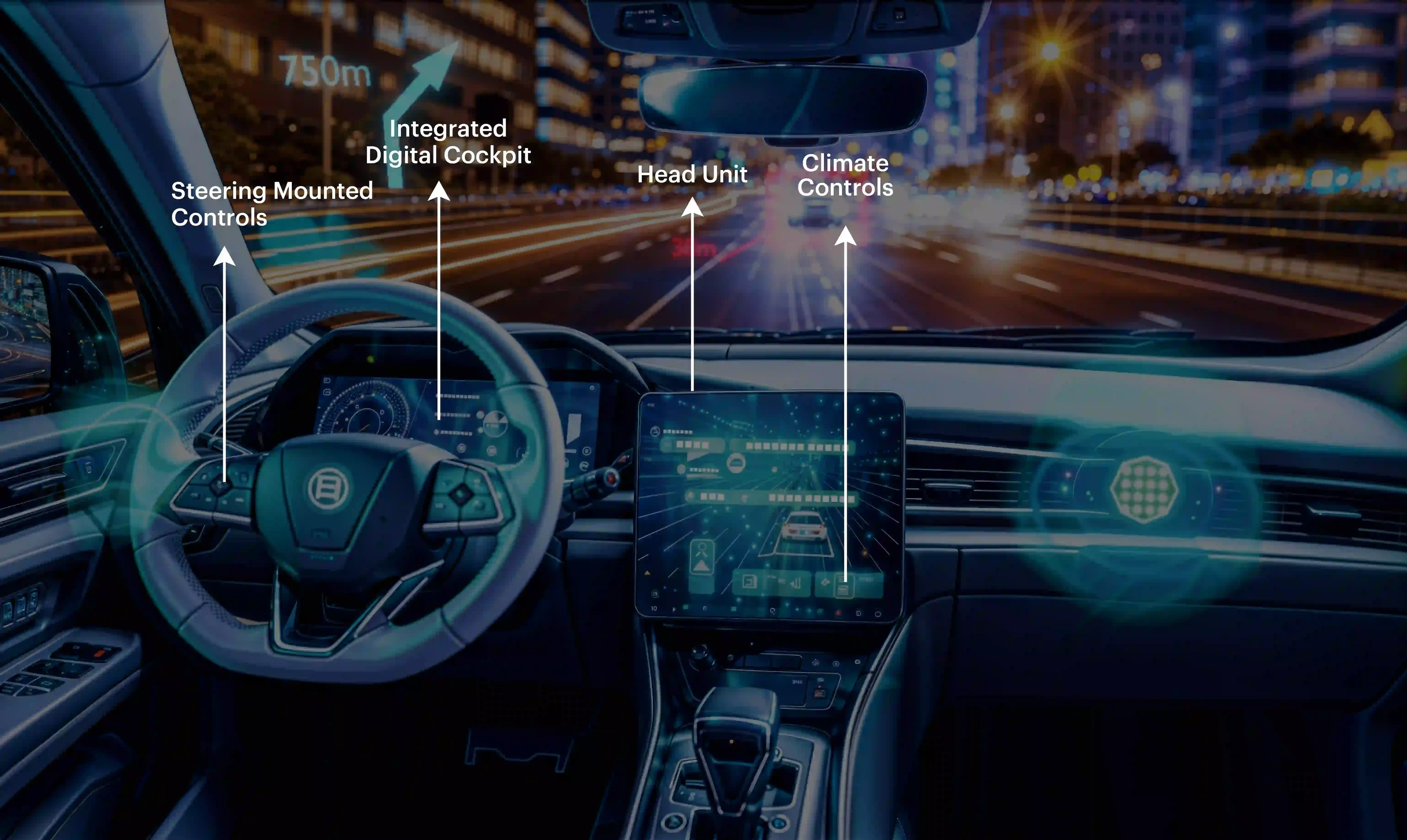

Modern automotive infotainment systems combine touch displays and heads-up displays as the primary interface between driver and vehicle. The head unit, built on SoC platforms, manages media, navigation, and in-vehicle communication, with support for over-the-air updates. Audio systems offer high-quality sound, voice assistant integration, and wireless streaming. Navigation combines GPS, traffic updates, and AR features. Connectivity modules handle 4G/5G, V2X, and remote diagnostics. Voice control, telematics, climate, and smartphone integration all work together to create a connected, user-friendly driving experience.

Display Unit

The display unit serves as the primary human-machine interface (HMI) in automotive infotainment systems. Modern vehicles employ high-resolution, capacitive touchscreen displays to support multi-touch gestures and haptic feedback. These displays utilize Display Serial Interface (DSI) and Display Bus Interface (DBI ) technologies for high-speed data transfer and integration with digital instrument clusters and heads-up displays (HUDs). New-generation HUDs project vital information directly onto the windshield, improving driver safety and situational awareness.

Head Unit

The head unit is the central processing unit of the infotainment system, typically built on System-on-Chip (SoC) platforms such as Qualcomm Snapdragon Automotive. These platforms provide the computational power necessary for the real-time processing of multimedia, navigation, and connectivity tasks. The head unit communicates with various vehicle networks, including CAN, LIN, and Ethernet, to communicate with other ECUs. It also supports Over-the-Air (OTA) updates, enabling remote software maintenance and feature enhancements.

Audio System

The audio system encompasses speakers, amplifiers, digital signal processors (DSPs), and audio interfaces. Modern systems support high-definition audio formats and integrate with cloud-based streaming services via Wi-Fi or cellular connectivity. Advanced audio systems employ spatial audio technologies and active noise cancellation to enhance acoustic performance. Integration with voice assistants and hands-free calling is facilitated through Bluetooth and USB interfaces, ensuring compliance with automotive safety standards.

Navigation System

Navigation systems leverage GPS, real-time traffic data, and cloud-based mapping services to provide dynamic route planning and guidance. Integration with Advanced Driver Assistance Systems (ADAS) allows for features such as predictive routing and hazard detection. The use of AR in navigation overlays directional cues onto the live camera feed, improving situational awareness.

Connectivity Modules

Connectivity modules enable seamless communication between the vehicle and external networks. It facilitates short-range wireless communication for hands-free calling and media streaming. Cellular modules (e.g., 4G, 5G) support over-the-air updates, vehicle-to-everything (V2X) communication, and support features such as remote diagnostics and telematics.

Voice Control Interface

Voice control interfaces utilize natural language processing (NLP) and machine learning algorithms to interpret and respond to driver commands. Integration with cloud-based AI services allows for continuous learning and improvement of voice recognition accuracy. These systems support a wide range of functions, including navigation, media control, and climate settings, enhancing driver convenience and safety by minimizing manual interactions.

Telematics Integration

Telematics systems collect and transmit vehicle data, such as speed, fuel efficiency, tire pressure, and diagnostic information, to external servers for analysis. This telematics data enables predictive maintenance, remote diagnostics, and fleet telematics applications. Integration with infotainment systems allows drivers to access real-time vehicle health information and receive maintenance alerts directly through the HMI.

Climate and Vehicle Controls

Climate and vehicle controls are integrated into the infotainment system for cars, allowing for centralized management of HVAC settings, seat adjustments, and other vehicle functions. Touchscreen interfaces, voice commands, and physical controls provide multiple interaction modalities catering to user preferences. This integration streamlines the user experience and contributes to the minimalist design trends prevalent in modern automotive interiors.

Smartphone Integration

Smartphone integration facilitates seamless connectivity between the vehicle's infotainment system and mobile devices. Mobile platforms can mirror smartphone interfaces onto the vehicle's display, providing access to apps, contacts, and notifications. This integration supports both wired and wireless connections, depending on the vehicle's capabilities, and enhances user convenience by maintaining familiar smartphone functionalities within the vehicle environment.

These components collectively form the backbone of the infotainment system for cars, driving the evolution towards more connected, intelligent, and user-centric in-vehicle experiences.

Instrument Cluster in Cars: The Driver's Information Gateway

What is an Instrument Cluster?

An instrument cluster in cars is an electronic display that replaces traditional physical gauges, using a liquid crystal display (LCD) or a thin-film transistor (TFT) screen to present a range of vehicle information to the driver. Digital Instrument cluster solutions represent the evolution of traditional automotive instrument panels. Unlike infotainment systems focused on entertainment and comfort, connected car clusters prioritize critical driving information, safety alerts, and vehicle status monitoring. The instrument cluster provides essential metrics, such as speed, fuel level, engine health, navigation, safety alerts, and diagnostics. Its primary goal is to keep the driver informed about the running condition and vehicle performance in real-time.

The Components of Digital Instrument Clusters

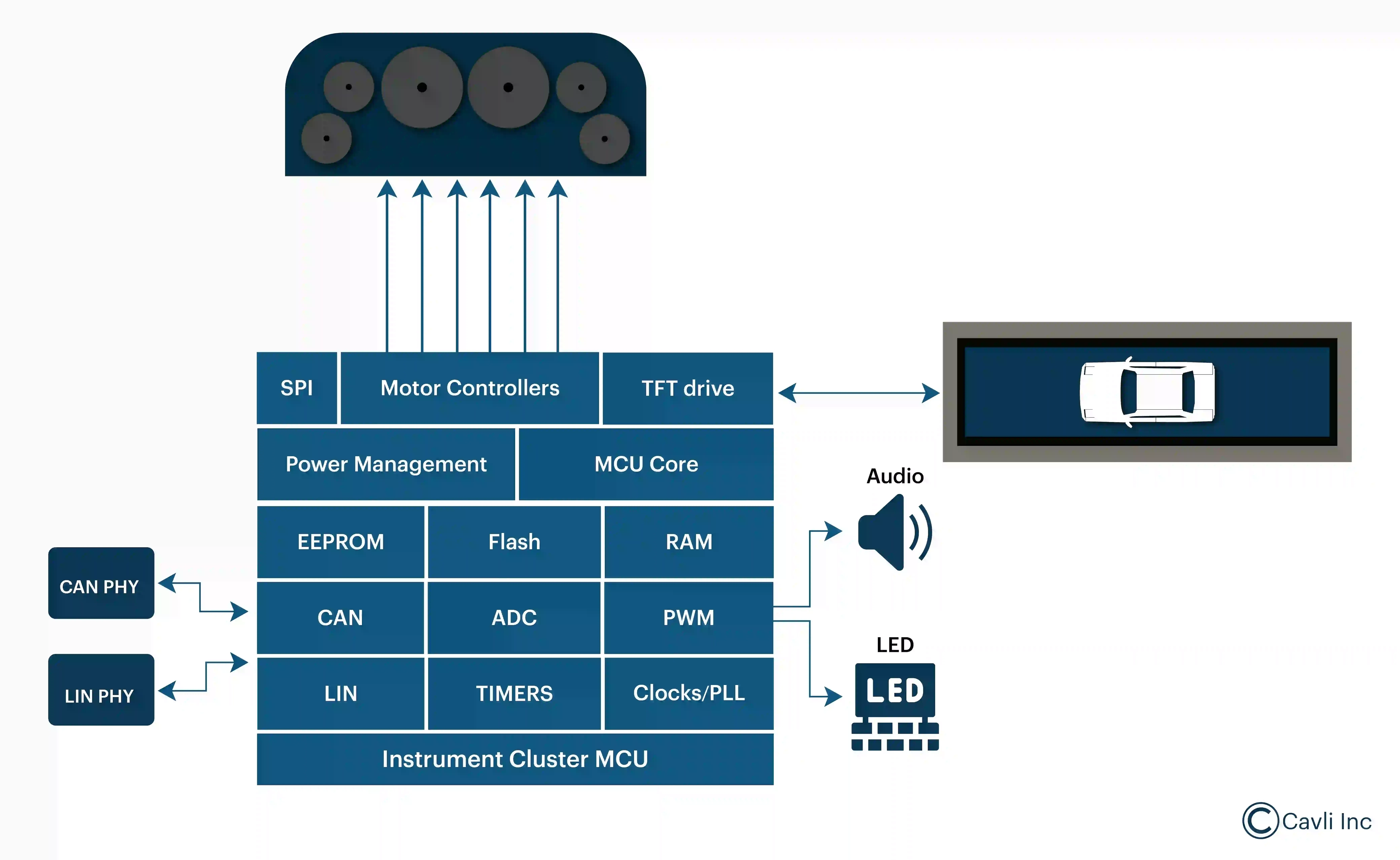

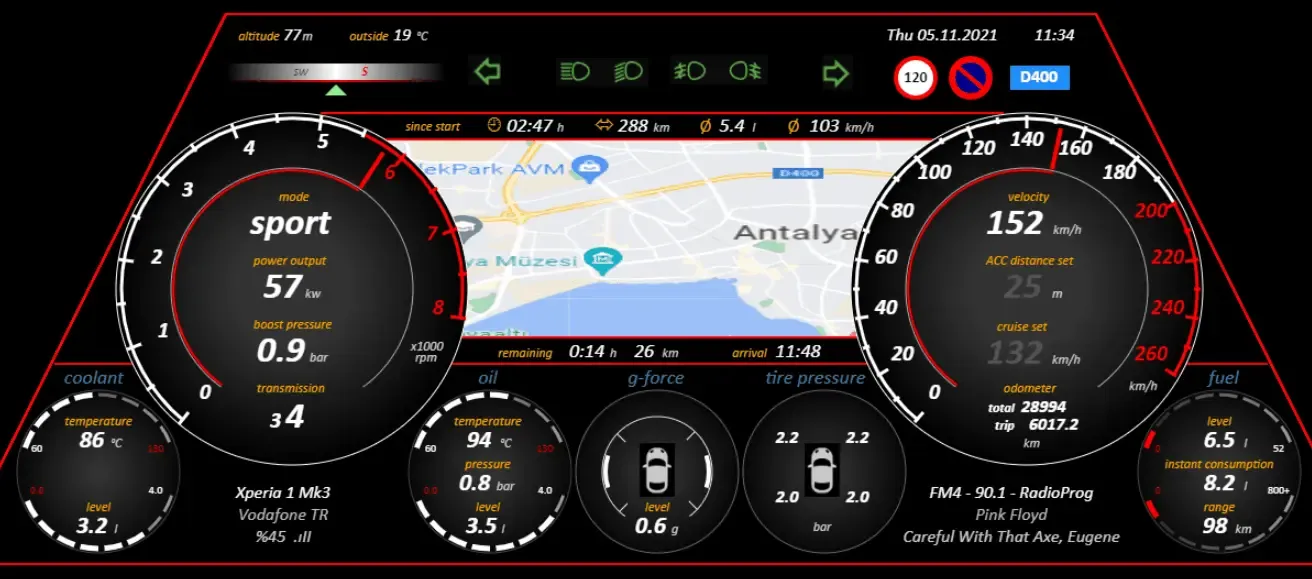

Instrument clusters in modern vehicles integrate multiple digital components to provide real-time information and enhance driver awareness. Key elements include the speedometer and tachometer, displaying vehicle speed and engine RPM. Fuel gauges, engine temperature, oil temperature, and battery voltage indicators monitor vehicle health, while odometer and trip meter track distance metrics.

Warning lights deliver alerts from various systems, including engine, battery, oil, and emissions. Gear indicators show transmission status, while navigation displays provide turn-by-turn directions and traffic updates. Advanced features like adaptive cruise control (ACC) and ADAS indicators visualize inputs from radar and camera systems to support safe driving. These components often connect to vehicle ECUs and telematics platforms for predictive maintenance, cloud diagnostics, and enhanced user experience.


Speedometer

The speedometer is a critical component of the instrument cluster that continuously measures and displays the vehicle’s current speed. Using inputs from the vehicle’s CAN bus or wheel speed sensors, the speedometer shows the real-time data to the driver. In modern digital instrument clusters, the speedometer displays use an LCD/TFT screen, offering precise speed readings with minimal latency. Additionally, the integration with GPS-based systems enables accurate speed monitoring across various road types and live traffic conditions.

Tachometer (RPM Meter)

The tachometer in digital clusters monitors the engine’s revolutions per minute (RPM), offering crucial data for the driver on engine load and performance. It helps in shifting optimization in manual transmission vehicles and provides insights into fuel efficiency and engine stress. In connected cars, the tachometer is often linked with the engine control unit (ECU) to gather real-time engine data. It supports fuel optimization algorithms, dynamic performance tuning, and auto-shifting in automatic transmissions, ultimately enhancing both performance and longevity.

Fuel Gauge

The fuel gauge in car clusters shows the amount of fuel remaining in the tank using resistive or capacitive systems. In connected car clusters, this information is often integrated with vehicle diagnostics systems to forecast range based on current driving behavior, environmental factors, and recent driving patterns. Advanced fuel gauges in electric vehicles (EVs) also consider battery health and state of charge (SOC) and often display real-time energy consumption rates to optimize range prediction and drive cycle planning.

Engine Temperature Gauge

The engine temperature gauge in digital clusters monitors the temperature of the engine coolant, providing the driver with data on engine overheating risks. Using thermistors and temperature sensors in the engine compartment, it transmits data to the ECU, which then communicates this to the cluster. Modern instrument clusters can integrate this information with the vehicle’s thermal management systems, enabling features like active cooling, dynamic fan control, and overheating warnings. In connected car clusters, data is cross-referenced with predictive maintenance algorithms, alerting drivers before a critical failure occurs.

Odometer

The odometer within the instrument cluster continuously records the total distance our vehicle has traveled since it was manufactured, storing this information securely in non-volatile memory such as EEPROM or Flash memory. It is a foundational element of the vehicle’s lifecycle management data and is critical for determining warranty periods, maintenance schedules, and resale value. Connected instrument clusters often extend the odometer’s functionality by integrating with telematics systems, offering features such as remote monitoring of vehicle usage, tracking driver behavior, and providing insights into fleet management for commercial applications.

Warning Lights

Warning lights provide immediate visual alerts to the driver about potential or active issues with the vehicle. Each light gets triggered by specific sensors or systems, which may include:

• Check Engine Light (CEL): Indicates issues detected by the onboard diagnostics (OBD-II) system, often related to sensors such as the oxygen sensor, mass airflow, or catalytic converter.
• Battery/Charging System Warning: Linked to the vehicle's alternator and battery management systems (BMS), these lights signal voltage fluctuations or charging issues.
• Oil Pressure Warning: Triggered by the oil pressure sensor, warns the driver about insufficient oil pressure, which could result in severe engine damage.

Advanced digital clusters can not only illuminate the warning lights but also provide detailed diagnostic trouble codes (DTCs), facilitating a more comprehensive driver alert system by pulling data from cloud-based diagnostic servers for predictive analysis.

Trip Meter

The trip meter of a car cluster allows for the tracking of distances traveled during individual trips, independent of the total odometer reading. It measures the distance between fuel refills for fleet tracking purposes. In connected vehicles, the trip meter integrates with navigation systems to calculate trip times and route efficiency. Additionally, it can sync with telematics platforms for real-time data collection on driving habits, fuel consumption, and geofencing for fleet optimization.

Battery Voltage Indicator

The battery voltage indicator provides insights into the health of the vehicle’s electrical system. It monitors the voltage levels generated by the alternator and battery during vehicle operation. Modern digital clusters can alert the driver to potential issues such as voltage dips that may indicate battery degradation or alternator failure. In electric vehicles (EVs) and hybrid vehicles, this indicator integrates with the battery management system (BMS), displaying state of health (SOH) and state of charge (SOC) metrics for precise energy management.

Gear Indicator

The gear indicator displays the current gear selected in the vehicle, a crucial component in manual transmission vehicles. In connected vehicles, the gear indicator can also provide data on the transmission mode, such as sport mode, eco mode, or manual mode, directly linked to the vehicle’s ECU. This feature ensures smooth gear transitions and provides the driver with real-time feedback on driving efficiency or fuel economy during various driving conditions.

Navigation Display

The navigation display integrated into the digital instrument cluster is a key feature in modern connected vehicles. It displays real-time turn-by-turn directions and integrates with the vehicle’s telematics system to provide live traffic updates, estimated time of arrival (ETA), and dynamic route optimization based on GPS and real-time data. In advanced car clusters, it can include augmented reality (AR) overlays on the windshield or within the cluster to provide precise lane guidance and hazard detection.

Oil Temperature Gauge

The oil temperature gauge monitors the temperature of the engine oil, providing crucial information to avoid overheating and ensure proper engine lubrication. This system is particularly relevant for high-performance or commercial vehicles. Integrated into digital car clusters, this feature alerts the driver when the oil reaches critical temperatures, which could affect engine efficiency and longevity. This data is sent to vehicle diagnostic platforms for predictive maintenance, including oil degradation analysis.

Oxygen Sensor/Emission System Indicator

The oxygen sensor and emission system indicator monitor the vehicle’s emissions control systems. Oxygen sensors play a critical role in ensuring the engine runs with the optimal air-fuel mixture. If an issue is detected, the system alerts the digital instrument cluster, triggering the corresponding warning light. Advanced connected car clusters integrate real-time data with cloud platforms to track the vehicle’s compliance with emissions regulations and generate predictive maintenance notifications.

Adaptive Cruise Control (ACC) Display

The adaptive cruise control (ACC) display shows the vehicle’s current speed settings and the distance to the vehicles ahead, adjusting the speed based on the surrounding traffic. The instrument cluster visualizes the status of the ACC system, including activation/deactivation signals, and can indicate when braking or acceleration occurs. It is connected to the vehicle’s radar sensors and camera systems, as well as integration with vehicle telemetry systems for a seamless and safe driving experience.

Advanced Driver Assistance System Indicators

The advanced driver assistance system (ADAS) indicators display real-time alerts from active safety systems, such as lane-keeping assist, forward collision warning, blind spot monitoring, and parking assist. These systems work by continuously processing data from sensors, radars, lidars, and cameras embedded throughout the vehicle. The digital instrument cluster then presents these alerts visually. It enables the driver to make real-time decisions based on system status. In connected car clusters, this information undergoes cloud-based analytics for enhanced driver support and predictive accident prevention.

Differences between an Instrument Cluster and an Infotainment System

Role of Instrument Cluster and Infotainment Cluster in V2X Technology

In Vehicle-to-Everything (V2X ) technology, both the instrument cluster and infotainment system play integral roles in enhancing the safety, efficiency, and overall user experience of connected vehicles. V2X refers to the communication between vehicles and other elements of the transportation system, including other vehicles (V2V), infrastructure (V2I), pedestrians (V2P), and network (V2N). The goal is to improve road safety, reduce traffic congestion, and enhance vehicle automation by enabling real-time data exchange.

Here’s how the instrument cluster and infotainment system contribute to the V2X ecosystem:

How do Instrument Clusters work in V2X Technology?

The instrument cluster in cars serves as the primary interface for displaying critical vehicle information in real-time data to the driver. Its role in V2X technology revolves around the following:

Collision Detection and Avoidance

Through V2V communication, vehicles exchange information about their speed, location, and direction. The instrument cluster displays warning alerts, such as a forward collision warning or braking alert, if a collision is imminent. Such notifications are triggered by V2X communication with nearby vehicles, infrastructure, or pedestrians.

Intersection Safety

In V2I communication, traffic lights and intersection sensors relay their status to the vehicle. The connected car cluster can alert the driver about red lights, stop signs, or crosswalks, reducing the likelihood of accidents.

Pedestrian and Bicycle Alerts

On establishing a V2P connection, pedestrians or cyclists equipped with smart devices can communicate with vehicles. The digital cluster alerts the driver to the presence of pedestrians or cyclists nearby, enhancing pedestrian safety.

Enhanced Situational Awareness

• Real-time Traffic and Road Conditions: The instrument cluster can integrate V2I data such as traffic signal status, road construction updates, and hazardous conditions (e.g., icy roads, accidents). It provides the driver with real-time situational awareness, enhancing both safety and route planning.
• Autonomous Driving Integration: For autonomous vehicles, V2X communication provides real-time updates on road conditions and vehicle surroundings. It helps the driver (or system) make informed decisions regarding speed adjustment, lane changes, and maneuvering with additional instrument cluster data.

Vehicle-to-Vehicle Communication

• Cooperative Maneuvering: In V2V communication, vehicles can exchange information about speed, braking, and position to coordinate maneuvers like overtaking, lane merging, or platoon driving. The digital instrument cluster shows visual indicators and warnings about these maneuvers, ensuring safe interaction between vehicles in proximity.

How does an Infotainment System function in V2X Technology?

While the instrument cluster focuses on safety-critical information, the infotainment system in a connected vehicle enhances the driving experience by providing multimedia and interactive features. It also plays an essential role in V2X in the following ways:

Vehicle-to-Infrastructure Communication

• Navigation Integration: Through V2I, the automotive infotainment system can receive updates about traffic signals, congestion, or detours from smart city infrastructure. This information can be used to dynamically adjust navigation routes, display real-time traffic updates, and suggest alternative routes based on current road conditions.
• Signal Timing Information: The infotainment system can receive data about traffic light signal timings through V2I and display it to the driver, optimizing driving behavior for reduced fuel consumption or emissions by adjusting speed for green light arrival.

Vehicle-to-Network Communication (V2N)

• Real-Time Cloud Connectivity: The infotainment system integrates with cloud-based services through V2N communication, enabling real-time updates on navigation, weather, road closures, and news. For instance, connected navigation apps can access traffic data from the cloud and update the infotainment system with optimal routes and time estimates.
• Software and Data Updates: The automotive infotainment system can receive OTA (Over-the-Air) updates for navigation maps, infotainment software, and vehicle systems, enhancing the vehicle’s overall functionality.

Vehicle-to-Vehicle Communication

• Safety Features & Driving Assistance: Similar to the instrument cluster, the infotainment system receives data from V2V communication and enhances it with visual displays and interactive alerts. For example, the infotainment screen might display an alert or an overlay of surrounding vehicles and their speed, providing a broader situational view to complement the instrument cluster.
• Autonomous Navigation and Communication: In autonomous or semi-autonomous vehicles, the infotainment system serves as the interface through which V2V data is communicated to passengers. It can also provide passengers with an overview of vehicle status, route planning, and updates on the autonomous driving process.

Integration with Smart City Infrastructure

• Smart Parking and Charging Stations: The automotive infotainment system can leverage V2I data to find available smart parking spaces or EV charging stations. It can then provide this information to the driver, helping them locate nearby available infrastructure based on real-time availability.
• Urban Mobility Services: The infotainment system can also integrate with V2X-enabled urban mobility services (e.g., ride-sharing, car-sharing). For example, the system can recommend a ride-share or car-share option if traffic congestion is detected or if the vehicle’s battery is low.

Closing Notes

The instrument cluster and infotainment system are integral to the modern vehicle experience, serving complementary roles in both safety and user convenience. The instrument cluster delivers real-time, critical information like speed, vehicle health, and safety alerts, while the infotainment system enhances the journey with entertainment, navigation, and connectivity. Their integration ensures a seamless, engaging driving experience, where both safety and comfort are prioritized. As these systems continue to evolve, the challenge remains in balancing real-time data accuracy with interactive functionality, ensuring optimal driver awareness and passenger satisfaction.
