5G Fleet Management: IoT Telematics for Connected Fleets

5G fleet management combines connected-vehicle hardware, IoT telematics, GNSS positioning, cellular connectivity, cloud platforms and analytics to give operators real-time or near-real-time visibility into vehicles and mobile assets. However, an effective fleet architecture does not simply use 5G everywhere. The right design matches connectivity, positioning, interfaces, power requirements and device management to the actual application.

For OEMs, telematics providers, fleet-tracker manufacturers and connected-transportation developers, modern fleet management goes far beyond displaying a GPS point on a map. A telematics device may need to read vehicle diagnostics, collect sensor information, process events locally, transmit data across multiple regions and support remote diagnostics or firmware updates throughout a long product lifecycle.

Telematics data can support mileage, fuel-use, utilization and EV-charging monitoring, among other operational functions, according to guidance from the U.S. Department of Energy.

Quick Overview

• 5G fleet management does not mean every tracker needs 5G. LTE Cat 1 and Cat 1bis can be better suited to many location, diagnostic and sensor-telemetry workloads.
• Modern fleet telematics systems combine sensors, vehicle interfaces, GNSS, a telematics control unit or tracker, cellular connectivity, edge logic and a cloud application.
• Real-time fleet management depends on reliable data acquisition, appropriate reporting intervals and resilient connectivity-not peak network speed alone.
• GNSS, Wi-Fi scanning, eSIM/iSIM, FOTA and remote diagnostics can improve the scalability and manageability of connected fleet deployments.
• Cavli offers LTE Cat 1bis, LTE Cat 1 and 5G RedCap options that can address different telematics architectures, alongside the Cavli Hubble connectivity and device-management platform.

Developing a Fleet Tracker or Telematics Device? Explore Cavli's Transportation and Logistics IoT solutions to evaluate cellular connectivity, positioning and device-management requirements for your deployment. Explore Fleet Connectivity Solutions

What Is 5G Fleet Management?

5G fleet management uses 5G connectivity as part of a broader fleet telematics architecture to exchange vehicle, sensor and operational data. Depending on the use case, that data may include location, vehicle diagnostics, driver events, video, sensor streams, dispatch updates, predictive-maintenance signals or connected-transportation information.

5G becomes particularly relevant when applications need greater throughput, lower latency or richer data exchange. 3GPP identifies low latency as an important design criterion for 5G NR, while Release 16 includes work related to V2X services and connected transportation.

But much of IoT fleet management consists of relatively compact telemetry. A device periodically sending GNSS coordinates, ignition status, battery level, temperature or diagnostic codes may not need 5G-class performance. LTE Cat 1 or Cat 1bis can be a more appropriate engineering choice when bandwidth requirements are moderate and cost, power or hardware complexity are higher priorities.

The objective is therefore not to deploy the newest network technology everywhere. It is to build a wireless fleet management system around the application's real data, latency, mobility and lifecycle requirements.

What Is Smart and Real-Time Fleet Management?

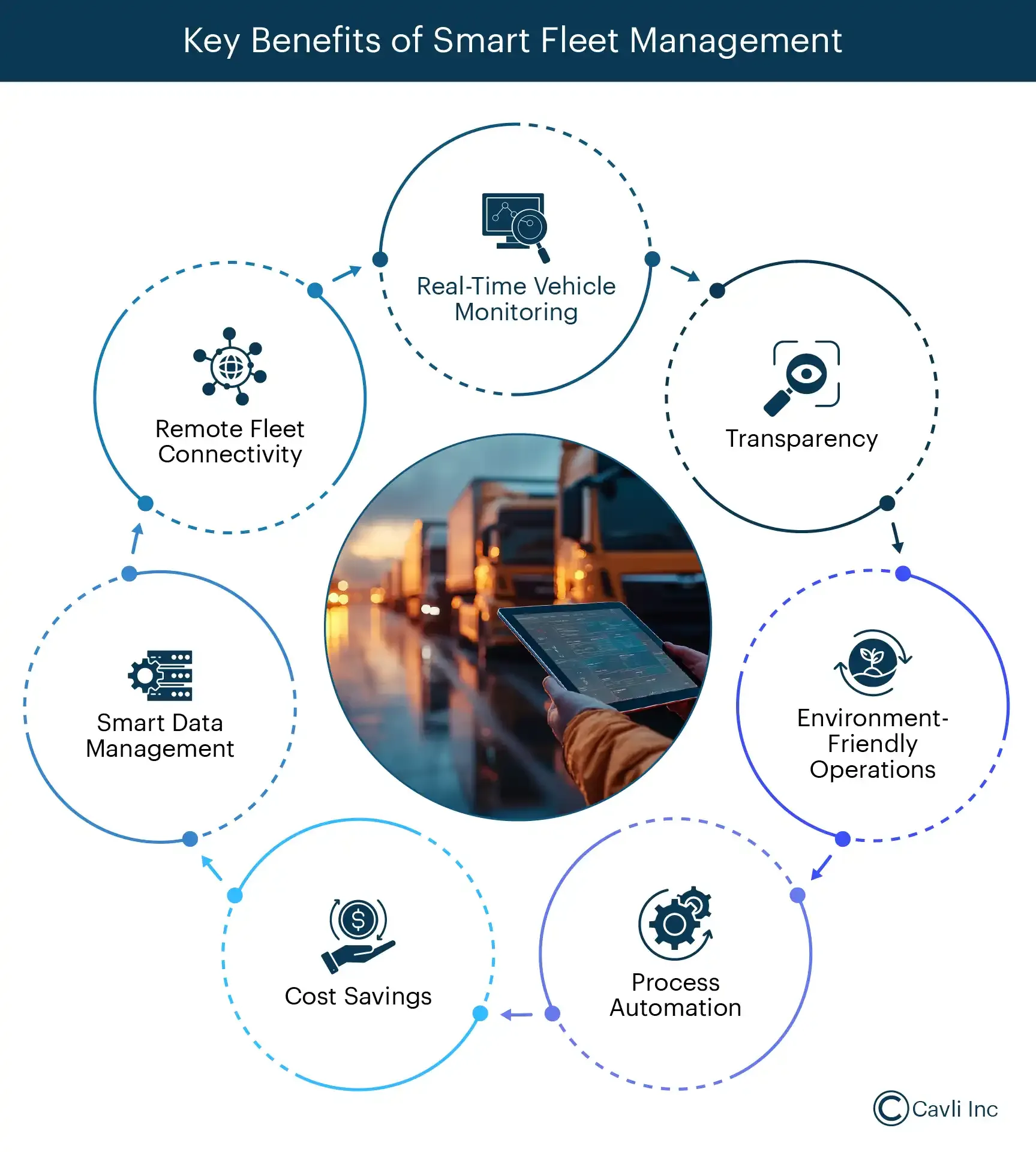

Smart fleet management uses connected sensors, positioning, vehicle interfaces, cloud platforms and analytics to transform raw fleet activity into information that operators can use.

Real-time fleet management adds the ability to detect and respond to events quickly enough for the relevant workflow. Those events might include route deviations, geofence crossings, harsh braking, temperature excursions, breakdown indicators or an urgent dispatch change.

“Real time” should not be treated as a single fixed update rate. A safety-related event may need immediate transmission, while a maintenance counter or utilization record can often be synchronized less frequently. Reporting intervals also influence cellular data usage and power consumption.

A well-engineered IoT fleet management system therefore decides what should be measured, what should be processed locally, what should be transmitted immediately and what can wait.


How IoT Fleet Management and Fleet Telematics Work

A fleet telematics system creates a data path between the physical vehicle and the fleet-management application.

Sensors and vehicle interfaces provide operating data. GNSS provides positioning. A tracker or telematics control unit (TCU) aggregates the information and may apply local edge logic. Cellular connectivity carries selected information to the backend. The cloud application then organizes the data into maps, alerts, dashboards, reports and operational workflows.

This architecture separates data acquisition, edge processing, communications and application logic. That separation is important when vehicles move through areas with inconsistent coverage. A properly designed device can temporarily store relevant events and synchronize them when connectivity is restored rather than assuming that a continuous network connection will always be available.

Edge processing can also reduce unnecessary cellular traffic. Instead of sending every raw sensor sample, the device might identify exceptions locally and transmit the events that require attention.


Lead Magnet Fleet Tracker Reference Architecture Designing a tracker, TCU or connected logistics device? Offer a downloadable engineering reference showing: Vehicle/Sensors → TCU/Edge Controller → GNSS → Cellular Module → eSIM/iSIM → Cloud/Hubble → Fleet Application Download the Fleet Tracker Reference Architecture

Core Technologies Behind Modern Fleet Telematics Systems

GNSS, Sensors and Vehicle Data Acquisition

Fleet tracking begins with reliable data acquisition. A telematics unit can combine GNSS with vehicle or peripheral interfaces such as CAN/OBD-II, UART, GPIO, USB, I²C and SPI, depending on the system architecture.

Typical data can include location, speed, ignition state, battery or fuel information, diagnostic parameters, cargo temperature, motion and driver-event information.

Multi-constellation GNSS can use combinations of GPS, GLONASS, Galileo, BeiDou or QZSS depending on the module. Location data then supports live tracking, trip histories, geofencing, route analysis and asset-security workflows.

GNSS is not equally reliable in every environment. Indoor facilities, covered depots and dense urban locations can create positioning challenges. Cavli's C16QS and C17QS support Wi-Fi scanning, providing an additional location signal that can complement GNSS in appropriate deployments.

Edge Processing, Cloud Platforms and Remote Management

A TCU does not need to transmit every raw measurement immediately. Local rules can identify faults, movement events or abnormal readings and prioritize what reaches the network.

The cloud layer then consolidates data from many vehicles and exposes it through fleet applications, maps, APIs, alerts and analytics.

At scale, remote management becomes just as important as connectivity. Cavli Hubble is designed to centralize cellular connectivity and device-management functions and supports capabilities including connectivity visibility, remote diagnostics and firmware updates over the air.

5G vs LTE Cat 1 vs Cat 1bis for Fleet Management

Choosing connectivity should begin with the workload rather than the network generation.

The engineering implication is important: 5G is not automatically better for every fleet tracker.

A camera-enabled gateway or advanced edge platform may justify 5G. A device sending location, vehicle status and sensor telemetry may be better matched to LTE Cat 1 or Cat 1bis.

Cavli's CQM220 adds another option for devices that need a 5G migration path without full-featured 5G NR complexity. Cavli specifies the CQM220 as a 3GPP Release 17 5G RedCap module with LTE fallback, optional integrated GNSS and peak 5G RedCap data rates up to 220 Mbps downlink and 120 Mbps uplink.

Which Cellular Technology Fits Your Fleet Device? Compare data rate, latency, GNSS, power, target regions, antenna design, form factor and lifecycle requirements before freezing the hardware architecture. Talk to a Fleet Connectivity Expert

How Wireless Connectivity Enables Real-Time Fleet Management

A reliable wireless fleet management system must operate while vehicles move between towers, cities, depots and regions. That makes peak modem speed only one part of the connectivity problem.

OEMs also need to consider supported bands, antenna placement, handover behavior, network availability, roaming strategy, retry logic and how the application behaves during temporary loss of service.

Power requirements vary as well. A permanently powered vehicle TCU has a different energy budget from a battery-backed tracker or detachable asset device. Technologies such as DRX, eDRX and PSM can help optimize consumption where the module and network support them, while reporting intervals determine how frequently the modem and positioning subsystem need to wake.

Global deployments introduce another layer: SIM provisioning and lifecycle management. GSMA's eSIM specifications provide mechanisms for remote provisioning and management, including specifications developed for IoT devices with constrained network or user-interface capabilities.

Cavli provides integrated eSIM options on selected modules. The current C17QS product information also identifies optional integrated iSIM as under development, so OEMs should confirm the exact SKU, region and production availability before finalizing a design.

IoT Fleet Tracking and Telematics Use Cases

Fleet telematics becomes more valuable when the same connected architecture supports multiple operational requirements.

Location and geofence data can support dispatch, route adherence, theft detection and ETA workflows. Vehicle diagnostics and usage data can support preventive or predictive maintenance. Motion events can feed driver-behavior analysis. Environmental sensors can monitor temperature-sensitive cargo. Mileage, utilization, fuel information and EV-charging data can support operating and energy reports.

The U.S. Department of Energy specifically identifies telematics data as useful for monitoring mileage, fuel use, charging activity and vehicle utilization.

This is why an effective fleet telematics architecture should rarely be considered “GPS only.” Location, vehicle information, sensor data, connectivity and software should be engineered as parts of the same system.

Engineering Challenges in Fleet Digitalization

Legacy integration is often one of the first barriers. Existing vehicles may expose different buses, connectors or controllers, which makes interface selection important when designing the tracker or TCU.

Coverage is another constraint. No cellular architecture should assume continuous connectivity across every possible route. Store-and-forward logic, caching, retries and event prioritization should be defined for temporary signal loss.

Security also belongs in the initial design rather than being added after deployment. Device authentication, encrypted communications, access control, firmware management and controlled OTA updates help reduce lifecycle risk when devices remain in vehicles for years.

Finally, power should be tested under realistic GNSS acquisition and network conditions. A nominal sleep-current figure alone does not represent the complete power profile of a tracker that repeatedly wakes, searches for satellites, registers on the network and transmits data.

Cavli Modules for Fleet Tracking and Telematics

Cavli's current portfolio gives OEMs several ways to match connectivity and positioning to the required device architecture.

The C16QS and C17QS are particularly relevant to Cat 1bis location-oriented designs.

For LTE Cat 1 telematics, the C11QM combines in-built GNSS with multiple peripheral interfaces, while the CQ10 adds worldwide-variant and flexible form-factor options.

For applications that genuinely need a 5G-class path, Cavli's CQM220 5G RedCap module can also be evaluated rather than forcing a full 5G NR architecture onto a moderate-throughput IoT workload.

Building a Connected Fleet or Telematics Device?

Select the module around your cellular technology, GNSS requirements, Wi-Fi scanning, peripheral interfaces, power strategy, form factor, eSIM/iSIM requirements, target regions and cloud-management architecture.

Primary Talk to a Fleet Connectivity Expert Secondary Explore Cavli IoT Modules

eSIM, iSIM and Cavli Hubble for Global Fleet Deployments

A prototype operating on one local network is very different from a commercial fleet product deployed across thousands of vehicles and multiple countries.

At scale, engineering teams must address subscription provisioning, connectivity visibility, remote diagnostics, firmware rollout, troubleshooting and device lifecycle management.

Cavli Hubble provides a centralized platform for connectivity and device management. Cavli describes Hubble capabilities including remote diagnostics, connectivity management and firmware updates over the air.

Integrated eSIM support on selected modules can further reduce the operational need to physically replace SIMs when connectivity requirements change.

Planning a Multi-Region Fleet Rollout? Review regional bands, module variants, eSIM/iSIM availability, Hubble onboarding and remote-device-management requirements before production. Book a Technical Discussion With Cavli

AI, Edge Intelligence, V2X and the Future of Fleet Telematics

AI and predictive analytics become useful only when the underlying telematics data is reliable.

Historical diagnostic and sensor information can be analyzed for unusual patterns. Route and utilization data can reveal recurring inefficiencies. Driver-event information can support safety coaching. Edge processing can classify important events locally so the backend receives higher-value information instead of an unrestricted raw-data stream.

5G and V2X broaden the architecture further. 3GPP Release 16 includes work covering V2X application-layer services and 5G-system support for vehicle-to-everything communications.

Those technologies can support the evolution toward more intelligent transportation systems, but they do not replace the fundamentals of fleet engineering: reliable GNSS, robust vehicle interfaces, appropriate cellular technology, security and long-term device management.

How to Choose Connectivity for a Fleet Telematics Device

Start with the use case rather than the modem category.

Define the data sources, payload size, reporting interval, latency requirement, coverage area, power source, target countries and expected device lifetime. Then select the cellular technology, GNSS capabilities, antenna configuration, interfaces, form factor, SIM architecture and remote-management capabilities around those constraints.

For basic-to-moderate telemetry, LTE Cat 1 or Cat 1bis can remain highly appropriate. For higher-throughput gateways, richer sensor streams or applications that benefit from 5G capabilities, 5G RedCap or full 5G NR may be justified.

The strongest 5G fleet management architecture is therefore not the one that deploys 5G indiscriminately. It is the architecture that assigns the right connectivity technology to each workload while keeping every deployed device observable, manageable and supportable throughout its lifecycle.

Conclusion: Build 5G Fleet Management Around the Right Connectivity

Modern 5G fleet management is ultimately an exercise in system engineering.

Reliable connected fleets combine vehicle and sensor data, GNSS, edge intelligence, wireless connectivity, cloud applications and lifecycle management. 5G expands what is possible for high-throughput and advanced connected-vehicle applications, while LTE Cat 1 and Cat 1bis remain relevant for many real-time fleet tracking and IoT telematics workloads.

For OEMs and telematics developers, the right question is therefore not simply “Do we need 5G?” It is “Which connectivity architecture delivers the required performance, power profile, coverage and lifecycle economics for this device?”

Cavli's LTE Cat 1bis, LTE Cat 1 and 5G RedCap portfolio-combined with GNSS options, eSIM/iSIM capabilities and Cavli Hubble-gives engineering teams multiple paths for building scalable connected fleet products.
