Exploring LTE Categories: Enhancing Wireless Communication

What is LTE?

LTE (Long-Term Evolution) is a high-speed wireless communication standard developed by the 3rd Generation Partnership Project (3GPP) to address the growing demand for faster mobile broadband and better network efficiency. It is the natural evolution of earlier mobile technologies like GSM, GPRS, and UMTS (3G), offering significant improvements in speed, capacity, and latency.

Key features of LTE include:

All-IP Network Architecture:

LTE operates over an all-IP (Internet Protocol) core network, supporting high-speed data services and enabling seamless integration with modern internet services.

Flexible Spectrum Usage:

LTE can be deployed across various frequency bands and supports bandwidths ranging from 1.4 MHz to 20 MHz, making it adaptable for different network environments and geographies.

Enhanced Data Rates:

LTE delivers peak downlink speeds of up to 2 Gbps (in advanced LTE categories like Cat 20) and uplink speeds of up to 200 Mbps, depending on the network infrastructure and device capabilities.

Low Latency:

The latency in LTE networks is as low as 10 ms, ensuring a smooth user experience for applications like video streaming, gaming, and voice-over-IP (VoIP).

LTE was designed to coexist with 3G and 2G networks, enabling a smooth transition for operators and users.

LTE has transformed how mobile devices connect to the internet, supporting various applications, from high-speed video streaming to mission-critical IoT systems.

LTE Category Classifications

LTE devices are classified into various categories based on their performance capabilities, such as data rates, bandwidth support, and antenna configurations. These categories are standardized by 3GPP to ensure interoperability and compatibility across devices and networks. LTE categories primarily determine the maximum downlink (DL) and uplink (UL) speeds a device can achieve, along with the supported features.

*theoretical values

Special LTE Categories for IoT

Some LTE categories are tailored for low-power, wide-area (LPWA) IoT applications:

Purpose of LTE Categories

LTE Categories, also known as UE (User Equipment) Categories, are classifications defined by 3GPP to standardize device capabilities across the LTE ecosystem. They ensure compatibility and efficient communication between mobile devices and network infrastructure.

Key purposes include:

Performance Differentiation:

LTE categories specify the maximum downlink and uplink speeds that devices can achieve.

They define the number of supported antennas (MIMO layers), modulation schemes (e.g., QPSK, 16-QAM, 64-QAM, 256-QAM), and bandwidth capabilities.

Network Optimization:

By categorizing devices, operators can allocate network resources more effectively, ensuring that devices with higher capabilities leverage advanced features like Carrier Aggregation (CA) and MIMO.

This helps in maintaining efficient utilization of spectrum and delivering consistent quality of service (QoS).

Device Compatibility:

LTE categories facilitate interoperability across diverse devices and networks, ensuring that devices can operate on networks with varying capabilities (e.g., low-bandwidth rural networks vs. high-bandwidth urban deployments).

Use Case Tailoring:

Different LTE categories cater to specific use cases. For instance:

• Cat 1:

  Low-power IoT and M2M communication.

• Cat 6-12:

  Mainstream consumer devices like smartphones and tablets.

• Cat 16-20:

  Gigabit-class applications, high-speed enterprise solutions, and critical infrastructure.

Evolutionary Framework:

Categories reflect advancements in LTE technology over successive 3GPP releases (from Release 8 to Release 14 and beyond), allowing a progressive adoption of new features like 256-QAM, 8x8 MIMO, and massive carrier aggregation.

By defining these categories, 3GPP ensures that LTE remains scalable, future-proof, and capable of addressing diverse requirements—from basic connectivity to high-speed, mission-critical services.

Key Technologies in LTE Communication

Multi Input, Multi Output (MIMO)

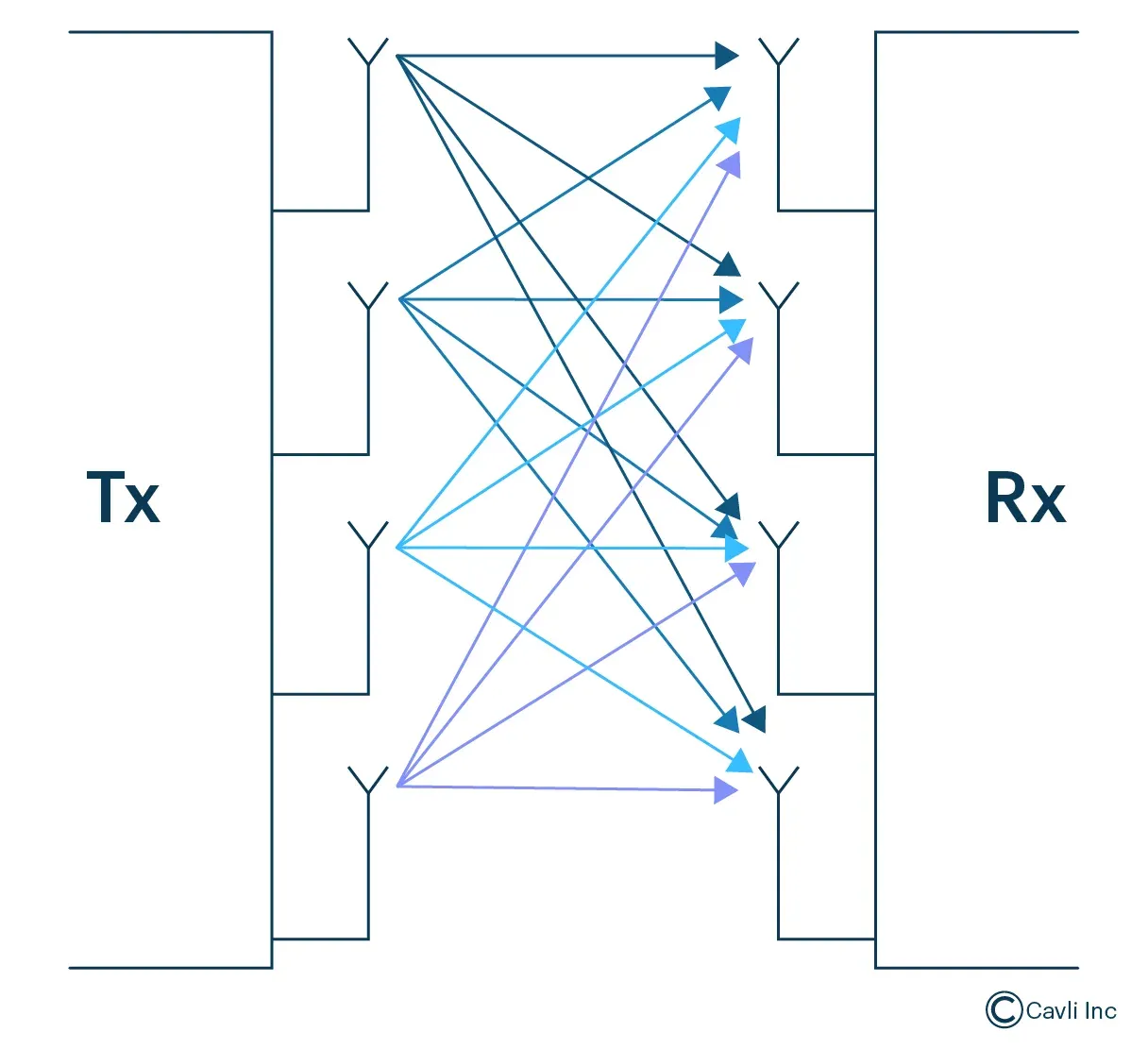

MIMO is a core technology in LTE communication that uses multiple antennas at both the transmitter (base station) and receiver (device) to improve data throughput and reliability. MIMO exploits spatial diversity by transmitting multiple data streams over the same frequency, significantly increasing capacity without requiring additional bandwidth or spectrum.

Types of MIMO in LTE

• SISO (Single Input Single Output):

  Basic LTE setup with one antenna at each end.

• 2x2 MIMO:

  Two transmit and two receive antennas. Common in mid-range LTE devices.

• 4x4 MIMO:

  Four transmit and four receive antennas, doubling throughput compared to 2x2.

• 8x8 MIMO:

  Advanced LTE devices and base stations use this for peak throughput in higher categories.

Benefits of MIMO Technology

MIMO significantly increases spectral efficiency by enabling multiple data streams to be transmitted and received simultaneously through multiple antennas. The multipath propagation in MIMO not only boosts data throughput but also improves signal reliability by reducing the impact of fading and interference. MIMO offers better overall network performance with robust connections, higher data rates, and improved QoS for end users, especially in dense urban environments.

To learn more about the role of MIMO in enabling seamless communication, refer to our blog on MIMO technology.

Carrier Aggregation

Carrier aggregation allows LTE to combine multiple carriers (frequency bands) to provide wider bandwidths, resulting in higher data rates and improved spectrum efficiency. LTE networks traditionally operate on a 20 MHz carrier. With CA, multiple such carriers (up to 5) can be aggregated to achieve a combined bandwidth of up to 100 MHz.

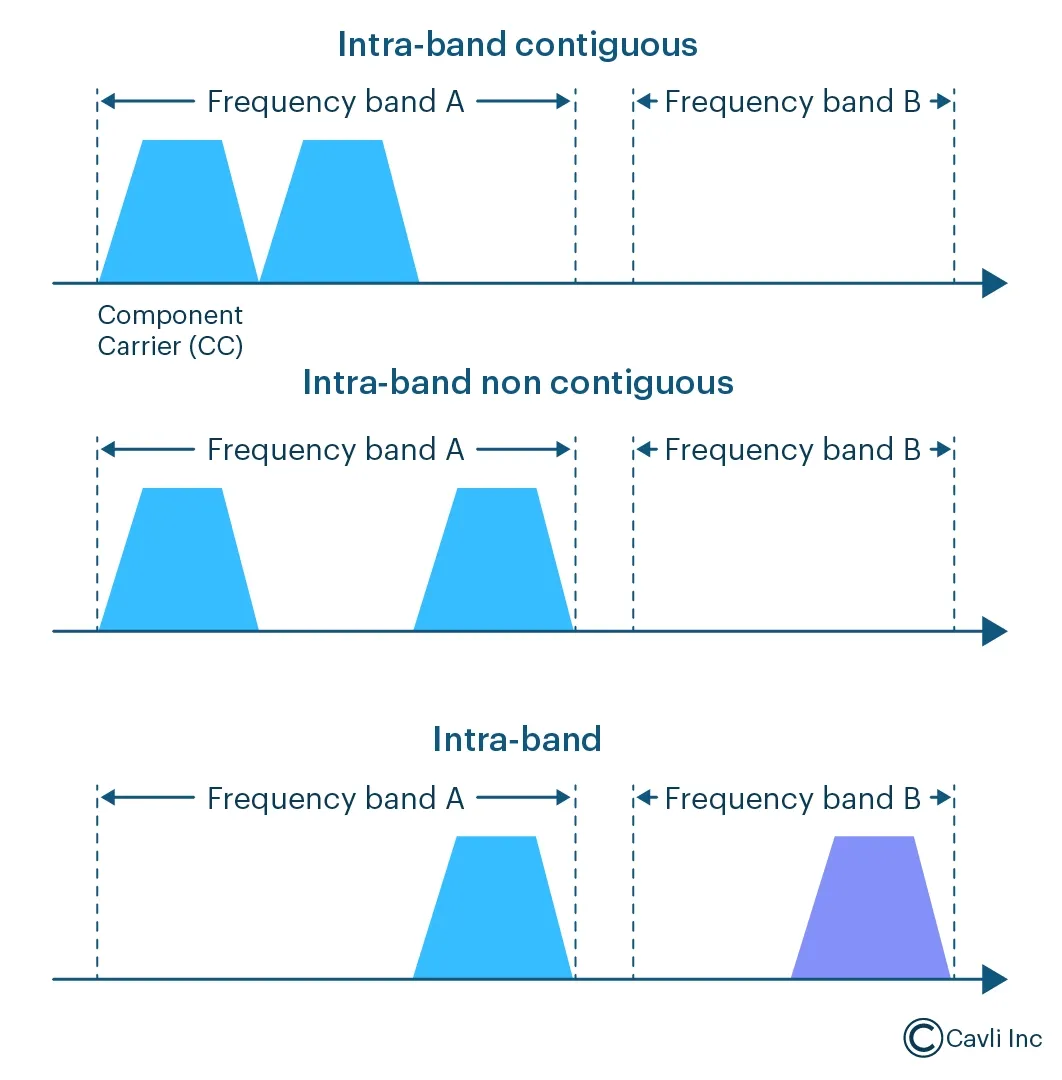

Types of Carrier Aggregation

• Intra-band Contiguous:

  Carriers are in the same frequency band and adjacent to each other.

• Intra-band Non-contiguous:

  Carriers are in the same frequency band but separated by unused spectrum.

• Inter-band:

  Carriers are from different frequency bands, commonly used in heterogeneous network environments.

Carrier Aggregation (CA) was introduced in LTE with Category 6, enabling higher data rates by combining multiple frequency bands. While it initially supported speeds up to 300 Mbps, it became a critical feature for achieving gigabit-class speeds with advanced technologies like massive MIMO in higher categories like Cat 16–20.

Modulation

Modulation is the process of varying a carrier signal (radio wave) to encode data for transmission. LTE uses advanced modulation schemes to maximize data rates while maintaining robust communication.

Key Modulation Schemes in LTE:

• QPSK (Quadrature Phase Shift Keying):

  Basic modulation with 2 bits per symbol. It is robust and used for poor signal conditions.

• 16-QAM (Quadrature Amplitude Modulation):

  It encodes 4 bits per symbol. Offers a balance between speed and robustness.

• 64-QAM:

  It encodes 6 bits per symbol. It is used for higher data rates in moderate signal conditions.

• 256-QAM:

  It encodes 8 bits per symbol. It was introduced in LTE-Advanced Pro (Cat 11 and higher), and it delivers the highest data rates but requires excellent signal quality.

Transmission Modes in LTE Communication

Transmission Modes (TMs) are configurations for how signals are transmitted and processed between base stations (eNodeBs) and user equipment (UE). LTE defines 10 transmission modes in 3GPP specifications to address varying network conditions and device capabilities.

Network Infrastructure for LTE Communication

The implementation of LTE categories involves designing a robust network infrastructure that supports the desired performance levels and device capabilities. Key considerations include:

Base Station Requirements:

• Radio Access Technology (RAT):

  Base stations (eNodeBs) must support advanced LTE features like MIMO, carrier aggregation, and high-order modulation schemes (e.g., 256-QAM) for higher categories.

• Sector Capacity:

  Upgraded hardware and software are necessary to manage the increased data rates and simultaneous connections for advanced LTE categories.

• Beamforming:

  Base stations should support beamforming for targeted signal transmission in higher LTE categories, ensuring better coverage and throughput.

Backhaul Connectivity:

• Bandwidth:

  Backhaul links need to be upgraded to handle higher data rates introduced by categories such as Cat 16 (Gigabit LTE), ensuring minimal bottlenecks.

• Latency:

  Low-latency backhaul is essential to match the latency improvements in LTE categories.

• IP Core Enhancements:

  The core network must support increased data traffic and advanced scheduling techniques for efficient resource management.

Spectrum and Frequency Planning:

• Carrier Aggregation (CA):

  Networks must efficiently allocate and combine fragmented spectrum bands to maximize throughput.

• Frequency Bands:

  Proper utilization of low, mid, and high bands ensures a balance between coverage (low bands) and capacity (high bands).

Quality of Service (QoS):

Networks must implement QoS mechanisms to prioritize traffic based on application requirements, ensuring seamless service delivery for latency-sensitive tasks.

Device Design and Chipset Requirements

Device design and chipset selection are critical for ensuring compatibility with the desired LTE category and for optimizing performance.

Chipset Requirements

• Processing Capability

  LTE chipsets must handle complex signal processing for features like 4x4 MIMO, carrier aggregation, and higher-order modulation schemes (e.g., 256-QAM).

• Category-Specific Features

  Cat 1–4: Basic support for LTE features like 2x2 MIMO and 64-QAM.
  Cat 6 and above: Advanced capabilities like 4x4 MIMO, carrier aggregation, and high uplink/downlink throughput.

• Power Efficiency

  Efficient power management is essential, especially for IoT devices or higher-category devices with intensive processing demands.

Antenna Design

• MIMO Support

  Devices must integrate multiple antennas (e.g., 2x2 or 4x4) to support MIMO configurations effectively.

• Beamforming

  Advanced devices need beamforming-capable antennas for enhanced signal reception.

Thermal Management

Higher data rates and processing demands lead to increased heat generation. Proper thermal design ensures stable performance during prolonged usage.

Form Factor and Integration

Compact and energy-efficient chipsets are necessary to meet the design constraints of modern devices such as smartphones, tablets, wearables, and IoT devices.

Backward Compatibility

Devices must support earlier LTE categories and even legacy technologies like 3G to ensure seamless operation in areas with varying network capabilities.

Cost Considerations

Chipset design must balance performance with cost to cater to various market segments, from high-performance smartphones to low-cost IoT devices.

LTE Cat 1

LTE Category 1 (LTE Cat 1) is one of the earliest LTE device categories defined in 3GPP Release 8. It is designed for low-power, low-complexity applications while maintaining reasonable data speeds.

Technical Specifications:

• Downlink Speed: Up to 10 Mbps.
• Uplink Speed: Up to 5 Mbps.
• Bandwidth Support: Operates on up to 20 MHz of spectrum.
• MIMO: Does not mandate MIMO, simplifying hardware design.
• Latency: Comparable to higher LTE categories (~10 ms for user plane).

Cat 1 devices are less complex than higher LTE categories, with reduced modem requirements, making them cost-effective and energy-efficient. They are optimized for applications needing moderate throughput, such as point-of-sale systems, industrial IoT devices, and wearables.

Unlike more advanced categories, Cat 1 balances low-cost implementation with compatibility across LTE networks, making it a widely adopted standard for non-broadband IoT and mid-tier consumer devices.

LTE Cat 1 bis

LTE Category 1 bis (Cat 1 bis), introduced in 3GPP Release 13, is an enhanced version of LTE Category 1 designed specifically for the Internet of Things (IoT) and low-power, low-throughput applications. It builds on Cat 1’s capabilities, offering optimized features for machine-to-machine (M2M) communication.

Technical Specifications:

• Downlink Speed: Up to 10 Mbps (same as Cat 1).
• Uplink Speed: Up to 5 Mbps (same as Cat 1).
• Bandwidth Support: Operates on up to 20 MHz of spectrum.
• Modulation: Uses QPSK and 16-QAM for efficient data transmission.
• Power Efficiency: Optimized for low power consumption with enhanced extended DRX (discontinuous reception) to prolong battery life, making it ideal for IoT devices like sensors, trackers, and wearables.
• Latency: Low latency (~10 ms for user plane).

Cat 1 bis is designed for applications requiring low data rates, long battery life, and low-cost devices. It enables seamless global IoT connectivity with better energy efficiency compared to standard LTE Cat 1, making it perfect for use cases like smart metering, asset tracking, and remote monitoring.

LTE Cat 4

LTE Category 4 (Cat 4), introduced in 3GPP Release 8, marked a significant milestone by doubling the downlink speed compared to Cat 3, making it the first LTE category to achieve true broadband speeds for mass-market devices.

Technical Specifications:

• Downlink Speed: Up to 150 Mbps.
• Uplink Speed: Up to 50 Mbps.
• Bandwidth Support: Utilizes up to 20 MHz of spectrum.
• MIMO: Implements 2x2 MIMO on the downlink for enhanced throughput.
• Modulation: Supports up to 64-QAM on both downlink and uplink for efficient data encoding.
• Latency: Consistent with LTE standards (~10 ms user-plane latency).

Cat 4 devices are designed for high-speed data applications, including 4K video streaming, real-time video conferencing, and high-speed tethering. The enhanced performance of Cat 4 devices required advancements in network infrastructure, including improved backhaul and optimized spectrum use. As the first LTE category widely adopted for mainstream consumer devices, Cat 4 played a key role in the global rollout of LTE services.

LTE Cat 6

LTE Category 6 (Cat 6), defined in 3GPP Release 10, is a significant step up in LTE capabilities, designed to achieve faster data rates and better network efficiency.

Technical Specifications:

• Downlink Speed: Up to 300 Mbps.
• Uplink Speed: Up to 50 Mbps.
• Bandwidth Support: Can aggregate two 20 MHz carriers (40 MHz total) using carrier aggregation.
• MIMO: Supports 2x2 MIMO for the downlink, enabling better signal strength and throughput.
• Modulation: Uses 64-QAM for both uplink and downlink, providing more data per transmission.
• Latency: Low latency (~10 ms for user-plane).

Cat 6 devices were designed to support high-definition video streaming, real-time gaming, and cloud-based applications, providing a balance between performance and power efficiency. It was a crucial advancement toward achieving Gigabit LTE (Cat 16) by introducing carrier aggregation, allowing multiple spectrum bands to combine for greater throughput.

LTE Device Evolution

The evolution of LTE categories has had a profound impact on the development of mobile and IoT devices. As LTE technology matured and new categories emerged, devices became increasingly capable of supporting higher speeds, more efficient connectivity, and more diverse use cases.

Smartphones and Consumer Electronics:

• Higher LTE Categories for Smartphones: As LTE categories advanced from Cat 3 to Cat 6 and beyond, smartphones were able to deliver faster data speeds and enhanced multimedia experiences. Cat 4 and Cat 6 devices enabled HD and 4K video streaming, fast mobile gaming, and real-time video conferencing.
• From Cat 1 to Cat 20: High-end smartphones adopted the higher categories like Cat 16 and Cat 20, which leveraged carrier aggregation and 256-QAM to achieve gigabit speeds, making applications like AR/VR, real-time video uploads, and large file transfers seamless.
• Wearables & Tablets: With advancements in LTE, wearables and tablets started supporting LTE Cat 4 and Cat 6 to allow continuous, high-speed connectivity, making them more independent from smartphones.

IoT and M2M Devices:

• IoT Growth: Cat 1 and Cat 1 bis played a pivotal role in IoT device adoption, offering low-cost, low-power solutions for a wide range of industries. These devices include smart meters, healthcare devices, asset trackers, and connected vehicles.
• Narrowband IoT (NB-IoT): More specialized LTE categories, like Cat M1 and Cat NB1 (NB-IoT), cater to low-throughput, low-power IoT applications, expanding LTE’s reach into industrial and environmental sensing, agriculture, logistics, and smarter cities.

Industrial & Automotive Sectors:

• Connected Cars: Automotive manufacturers adopted LTE for in-vehicle connectivity, enabling Cat 6 and Cat 9 to support in-car entertainment, remote diagnostics, and advanced navigation.
• Industrial IoT (IIoT): Devices for smart factories, machine-to-machine (M2M) communication, and asset management used Cat 1 or Cat 4 to provide reliable, fast connectivity without compromising power efficiency.

LTE Network Deployment and Coverage

The rollout and adoption of different LTE categories have significantly influenced both network deployment strategies and coverage optimization. Higher LTE categories demand more sophisticated network infrastructure and planning to ensure optimal performance and widespread availability.

Base Station & Network Infrastructure:

• Initial Rollout with Cat 4/5: The initial LTE rollout, with devices supporting Cat 3 and Cat 4, required the network to upgrade to eNodeBs capable of handling higher speeds and supporting MIMO (Multiple Input Multiple Output) antennas to boost capacity.
• Massive MIMO & Advanced Technologies: For Cat 16–Cat 20 devices, the introduction of massive MIMO and beamforming technology became critical to support gigabit-class speeds. Multi-band aggregation and 3D MIMO further pushed the need for dense small-cell networks in urban areas to ensure capacity and coverage.

Coverage Considerations:

• Urban vs. Rural Deployment: In urban areas, LTE networks have been more readily upgraded to support high-speed devices and multiple aggregated carriers (Cat 6 and above), resulting in better capacity and user experience. Conversely, rural and remote areas still rely on lower categories like Cat 1 or Cat 2, designed for lower throughput but better coverage and power efficiency.
• Spectrum Management: The availability of low, mid, and high-band spectrum significantly impacts coverage strategies. Low-band LTE (like 700 MHz) provides wide coverage but limited capacity, while mid and high-band LTE (like 1800 MHz, 2600 MHz) supports high data rates but with a reduced coverage radius. As operators deploy carrier aggregation, they leverage diverse spectrum bands to balance capacity and coverage.
• Small Cells and HetNets: To ensure widespread LTE coverage in dense urban environments, small cells and heterogeneous networks (HetNets) are deployed, particularly for advanced categories (Cat 9, Cat 16, Cat 20), which require high capacity.

Network Performance and Optimization:

Network Optimization: Higher LTE categories necessitate extensive network optimization techniques, including load balancing, traffic shaping, handover management, and resource scheduling. As the number of users with advanced devices (Cat 6 and above) grows, network optimization ensures the efficient distribution of resources and prevents congestion.

Quality of Service (QoS): Operators must prioritize latency-sensitive services like VoLTE and real-time streaming. Categories like Cat 9 and Cat 16 require enhanced QoS mechanisms to ensure a seamless experience, particularly for applications like 4K video and live streaming.

Evolution Toward 5G:

Future-Proofing: As 5G adoption begins, LTE infrastructure remains foundational. Higher LTE categories (Cat 16–20) already set the stage for 5G New Radio (NR) by providing technologies like carrier aggregation, massive MIMO, and beamforming, which are further enhanced in 5G.

Interworking Between LTE and 5G: Networks will deploy non-standalone 5G (NSA) architecture initially, with LTE providing the anchor layer for 5G connections. This requires backward compatibility and seamless handover between LTE and 5G networks, ensuring continuity for both legacy and advanced devices.

Future Pathways from LTE to 5G and Beyond: Transition Strategies and Hybrid Deployments

As the world moves toward 5G technology, the evolution from LTE to 5G is not a sudden leap but a gradual and strategic transition that involves multiple stages. This transition requires careful planning in terms of both infrastructure upgrades and network deployment strategies. The path to 5G is not just about replacing LTE but integrating it in a hybrid manner, ensuring continuity of service, and leveraging the best aspects of both technologies. Below are key strategies and approaches for the LTE-to-5G transition.

1. Evolution and Hybrid Deployment Approaches

1.1 Non-Standalone (NSA) Architecture

Non-Standalone (NSA) 5G architecture is the first stage in the transition to 5G. In this model, the 5G New Radio (NR) works alongside LTE to provide a unified experience, utilizing LTE for control signaling and 5G for data transmission. This hybrid deployment allows for a faster time-to-market for 5G services by leveraging existing LTE infrastructure.

Benefits of NSA:

• Faster rollout of 5G coverage with reduced initial infrastructure costs.
• Immediate access to 5G speeds and capabilities in areas where 5G coverage is available.
• Smooth transition for users moving from LTE to 5G without losing service quality.

Challenges:

• Coordination between LTE and 5G components for seamless operation.
• Increased complexity in network management.

1.2 Standalone (SA) 5G Deployment

Standalone 5G will be the full-fledged 5G implementation, where the 5G core network operates independently of LTE. This is an essential step to unlock the full potential of 5G for ultra-low latency applications, massive IoT, and network slicing for customized services.

Key Features:

• Core Network (5GC): A fully virtualized, cloud-native core that enables advanced features such as network slicing, which customizes network resources for different use cases like healthcare, autonomous vehicles, and smart cities.
• Ultra-low Latency: Delivers latency as low as1 ms or lower to support real-time applications such as remote surgery and industrial automation.
• Massive IoT: Facilitates the connection of billions of devices in a cost-efficient manner.

Challenges:

• Requires significant investment in infrastructure and 5G core elements.
• Device compatibility: Devices need to support both NSA and SA to ensure seamless handovers.

Key Transition Strategies

Edge Computing and Low-Latency Services

As part of the transition to 5G, edge computing will play a critical role in reducing latency and improving the overall performance of the network. By placing compute and storage resources closer to the user or device (at the "edge" of the network), it is possible to enhance the real-time capabilities of 5G services.

Use Case for Edge in Hybrid Deployments:

In NSA deployments, edge computing can assist with low-latency applications by offloading certain data processing tasks closer to the edge of the network, even as LTE provides broader coverage.

Benefits:

• Low latency (critical for IoT applications, autonomous driving, AR/VR), reduced bandwidth consumption, and more efficient use of network resources.

Coexistence and Seamless Handover

As LTE and 5G networks coexist during the transition period, operators must ensure seamless handovers between LTE and 5G cells. This requires interworking between LTE and 5G networks, ensuring that users experience minimal disruption when moving between network types.

5G Handover:

This involves advanced mobility management techniques where user sessions are transferred between LTE and 5G seamlessly without dropping the connection, particularly in hybrid deployments.

Challenges:

• Optimizing handover performance across different frequency bands and inter-network coordination.

Coverage Optimization

In hybrid deployments, operators will need to balance coverage expansion with the need for higher speeds. This may involve the use of small cells, distributed antenna systems (DAS), and millimeter-wave (mmWave) spectrum for 5G while continuing to rely on LTE for wider coverage, especially in rural or remote areas.

Small Cells: Essential for enhancing coverage in dense urban areas and filling gaps where traditional macrocell towers may be insufficient.

Interoperability and Standardization

As LTE and 5G networks evolve, ensuring interoperability between different network generations (LTE, LTE-Advanced, and 5G) will be crucial. The 3GPP standards provide the foundation for this transition, with technologies like Carrier Aggregation and Dual Connectivity playing a pivotal role.

Dual Connectivity: Allows a device to connect to both LTE and 5G simultaneously, improving overall performance and providing a smooth handover between networks.

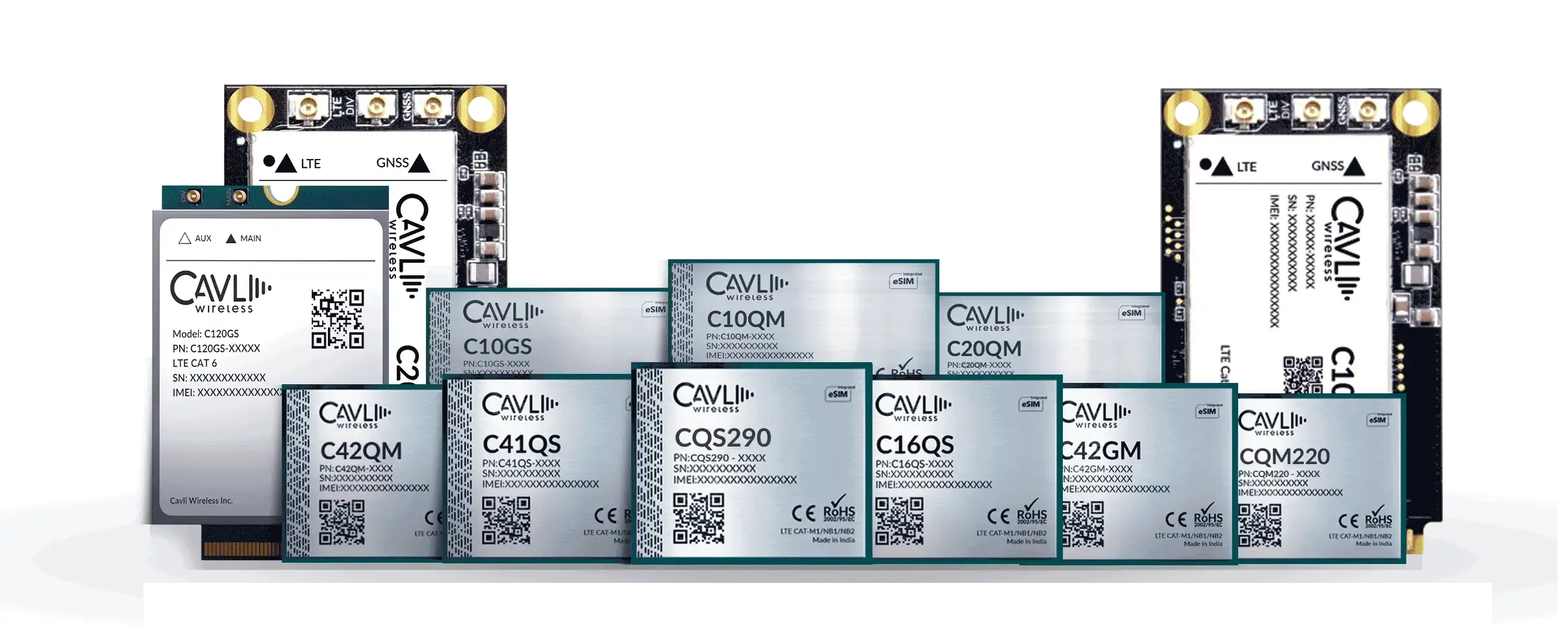

Boost Your Connectivity with Cavli C-Series Cellular IoT Modules

Learn more about Cavli Cellular IoT Connectivity Solutions
