Powering Versatile Retrofits in Utility Metering with Cavli's Cat 1bis Modules

The utility metering industry is undergoing a profound transformation, driven by the demand for advanced, real-time data collection and remote management of energy, water, and other utilities. However, for many Original Equipment Manufacturers (OEMs) and Original Design Manufacturers (ODMs), the task of transitioning from traditional metering systems to smart meters presents significant hurdles. One of the biggest challenges is retrofitting legacy systems that may already be deployed in the field across millions of units. As a result, designing cost-effective and scalable solutions for smart metering can become a complex and resource-intensive endeavor.

In this context, Cavli's Cat 1bis portfolio, specifically the CQ16 and C16QS modules, offers a game-changing solution. These modules provide an ideal upgrade path for legacy metering systems, allowing OEMs and IoT Design Houses to introduce smart connectivity with minimal disruption to existing deployments. Let’s explore how Cavli’s Cat 1bis modules are setting a new standard for smart metering applications.

Introducing Cavli’s Cat 1bis Contenders

Cavli's CQ16 and C16QS modules are engineered to provide low-cost, low-power connectivity for a wide range of IoT applications, including smart metering. Both modules are based on LTE Cat 1bis technology, which is well-suited for low-bandwidth, energy-efficient use cases. The CQ16 and C16QS cater to different application needs, each offering distinct advantages for smart metering solutions.

Cavli CQ16: The Most Compact Cat 1bis Module

The CQ16 is ideal for applications such as water metering and other compact factor-based smart utility solutions. With support for a USB 2.0 interface, the CQ16 enables easy integration into existing systems, reducing the time-to-market for product developers.

The module is available in four regional variants, covering North America, Australia & New Zealand, India, and Europe, ensuring global compatibility and flexibility. Its compliance with 3GPP Rel 14 Cat 1bis standards guarantees reliable performance and connectivity for a wide variety of cost-effective IoT applications that do not require GNSS capabilities.

C16QS: Cavli’s Multi-Form-Factor Cat 1bis Module

On the other hand, the C16QS offers additional capabilities tailored for more demanding applications. In addition to LTE Cat 1bis, the C16QS integrates optional GNSS (Global Navigation Satellite System) support and eSIM functionality, while being available in multiple form factors including LGA, mPCIe and USB Dongle. These features make it ideal for use in applications that require both location tracking and remote connectivity.

The C16QS excels in more advanced use cases that require more precise and diverse data inputs. With its independent GNSS and LTE power supply and advanced edge processing of GPS data, the C16QS is well-suited for applications that require real-time updates and continuous, reliable data communication.

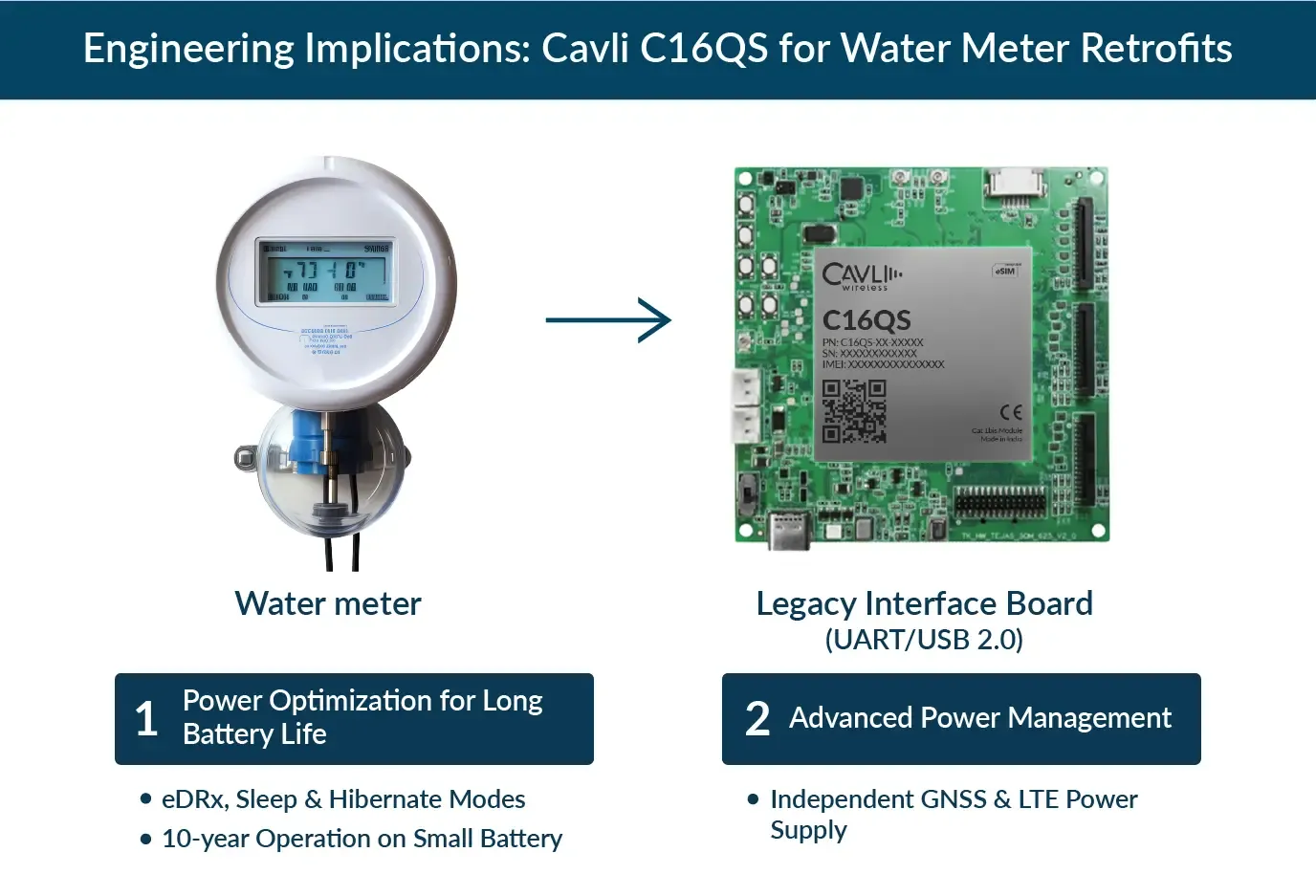

Engineering Implications for Retrofitting NIC Cards with Cavli's Cat 1bis Modules

Consider the case of an OEM/ODM upgrading a legacy utility metering system to a more efficient, connected solution.

The UART and USB 2.0 interface of the CQ16 and C16QS makes integration straightforward with legacy systems that still rely on basic interfacing abilities. For developers, this means a simpler upgrade path, reducing the need for expensive redesigns. These Cat1bis ,modules' ability to operate in low-power states while still transmitting necessary data makes it perfect for energy & water metering, where data is often sent at periodic intervals rather than in real-time.

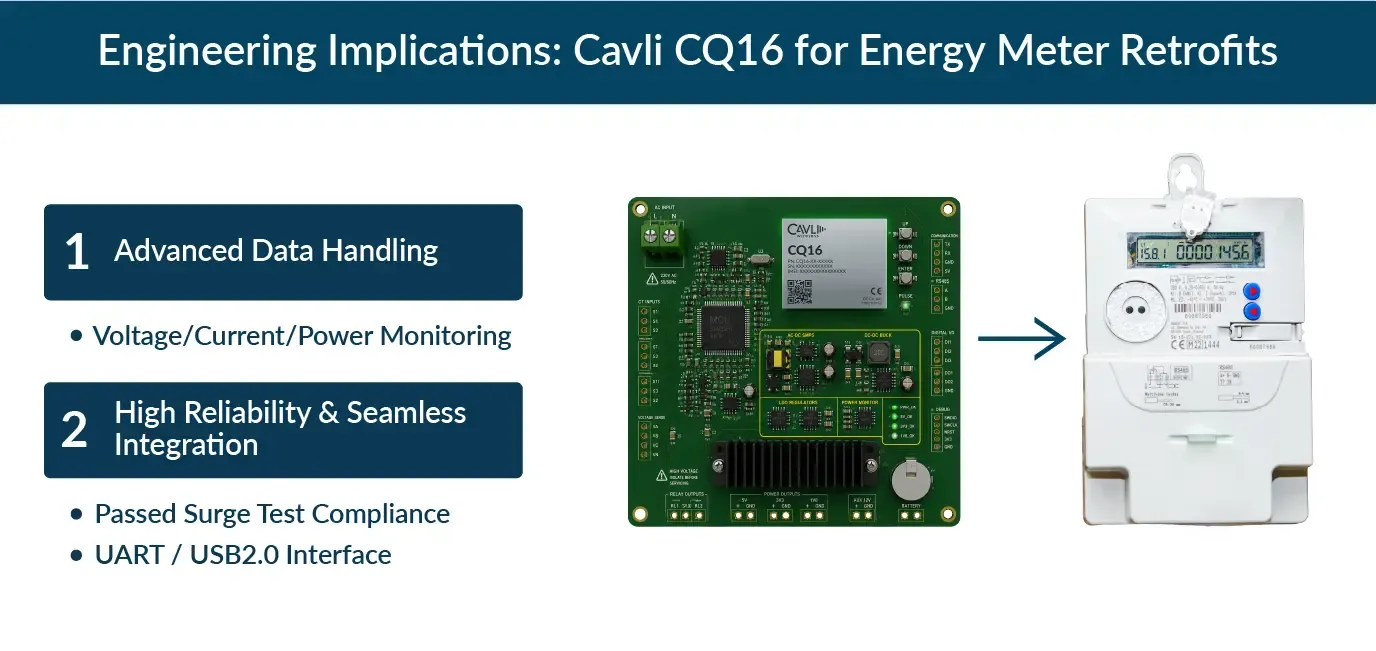

The Cavli CQ16 LTE Cat 1bis module can become an ideal consideration for an energy metering application, especially with its low power consumption and power-saving modes. Energy meters often require minimal power usage, so ensuring they last several years without maintenance is critical. The CQ16’s eDRx, sleep, and hibernate modes ensure extended battery life, allowing the Utility meters to remain operational in remote areas without frequent replacements.

Consider the case of a energy metering application that was developed with CQ16 as the customer's preferred module choice. From a technical perspective, Cavli has implemented several customizations to meet customer-specific requirements, including

• Baudrate: The default AT command baudrate has been set to 9600, down from the earlier 115200, allowing better compatibility with legacy devices.
• LED Behavior: The Net and Status LED behaviors have been customized to provide intuitive visual feedback for connectivity and module status.
• New AT Command: A new AT command has been added to retrieve the average signal strength value, providing developers with better insights into network conditions and optimizing communication reliability.

Also, in one instance, a CQ16-based system showed unstable behavior in rare moments during the high-voltage surge tests, in its initial iteration. This is a critical test requirement for utility-grade deployments with expectations of lifecycles lasting a decade or more. Cavli’s engineering team proposed alternative solutions, one of which were also cost-effective to implement, considering the budgets of utility devices. After rigorous testing, two variations of the proposed method successfully showcased stable behavior even across the test duration.

This collaboration highlights Cavli’s commitment to supporting customers with tailored solutions. By working closely with developers, Cavli ensures that retrofit solutions meet regulatory standards while also being cost-effective and reliable, allowing customers to offer long-term warranties with confidence.

End Customer Implication: A Real-World Retrofit Challenge

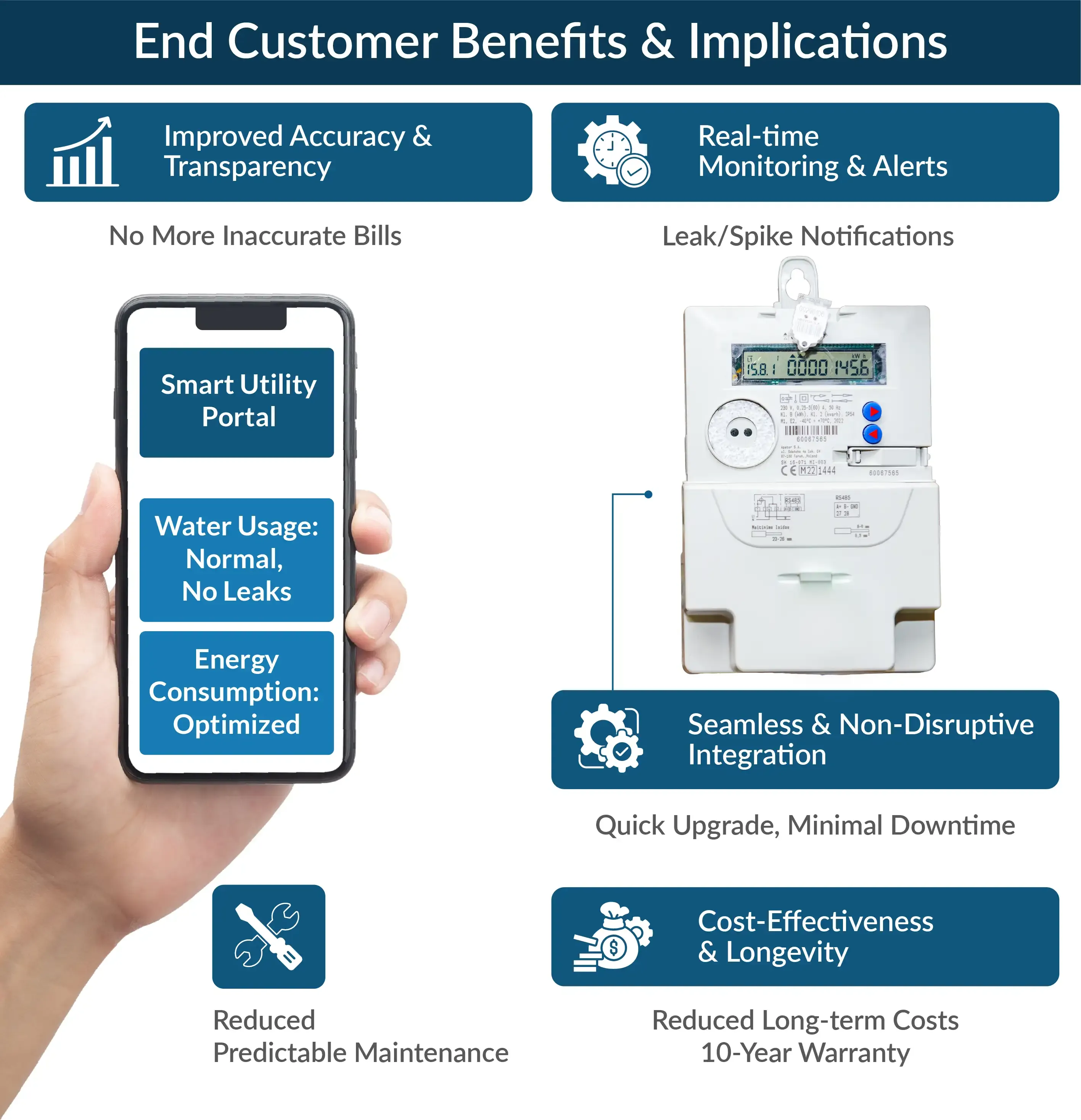

When end customers retrofit their existing water or energy metering systems, they seek solutions that ensure long-term reliability and minimal maintenance. The engineering advantages of Cavli’s CQ16 and C16QS modules also play a crucial role in making these upgrades seamless and cost-effective for them.

• Improved Accuracy and Transparency
  • One of the most significant benefits for consumers is the enhanced accuracy of their utility usage measurements. Traditional meters often rely on manual readings or outdated technology that is prone to errors. With the smart metering solutions powered by the Cavli CQ16 for water and Cavli C16QS for energy, data is transmitted in real time, reducing the chance of human error and providing more accurate readings.
  • Consumers will no longer have to face unexpected high bills due to inaccurate readings or estimated usage. Instead, they can experience a more transparent and reliable billing system that accurately reflects their actual consumption.
• Real-Time Monitoring and Alerts
  • Modern smart meters provide real-time monitoring of water or energy usage, allowing consumers to track their consumption as it happens. This can be especially valuable for energy users, who may wish to adjust usage patterns to reduce costs or minimize peak energy demand.

  • For water consumers, the ability to monitor consumption in real-time helps in identify leaks or unusual spikes in usage, which could indicate potential issues. These early warnings empower consumers to take immediate action, preventing higher bills or water waste before they become significant problems.




• Seamless Integration and Reliable Connectivity
  • Since the CQ16 and C16QS modules integrate smoothly with existing legacy systems, the retrofit process is typically quick and non-disruptive. Consumers are less likely to experience prolonged outages or service interruptions, ensuring their utility service remains largely uninterrupted during the upgrade.
  • Additionally, the low power consumption of these modules ensures that the new meters are both efficient and reliable, requiring less frequent maintenance. This means consumers can benefit from a more consistent and dependable service without the need for constant technician visits or meter replacements.
• Cost-Effectiveness and Longevity
  • While the initial retrofit may come at a cost, the energy-efficient features of the new smart meters can help consumers reduce overall utility costs in the long run. These meters are designed to last longer, with a typical 10-year warranty, reducing the frequency of replacements and service calls. Over time, consumers benefit from more efficient consumption patterns, lower utility costs, and fewer maintenance needs.

Conclusion

Whether upgrading water metering systems with the CQ16 or integrating energy metering capabilities with the C16QS, Cavli’s Cat 1bis modules provide a valuable solution for IoT device developers. The combination of low power consumption, integrated GNSS and cost effective LTE connectivity makes these modules ideal for retrofitting existing metering solutions.

With Cavli's close support, customers can successfully tackle challenges such as regulatory compliance, cost constraints, and performance requirements, ensuring a smooth, scalable transition to smart metering systems that can offer long-term reliability and customer satisfaction.
