Enhancing Smart Metering Solution with Cavli C16QS IoT Module and LTE Cat 1bis Technology

How Cavli’s C16QS IoT Module Powers Secure Smart Meters

At Cavli, we thrive on solving complex IoT challenges. When a leading smart energy metering OEM approached us with a critical security concern, we saw an opportunity to innovate. Their next-generation smart metering solution demanded robust protection against cyberattacks and tampering. This blog details our journey to deliver a secure, tailor-made solution using the Cavli C16QS Cellular IoT module, balancing advanced functionality with ironclad data protection for utility companies and smart meter manufacturers.

Why Smart Metering Matters for Utility Companies

Smart metering, encompassing smart electricity meters and smart energy metering systems, is transforming energy management. With over 1.7 billion smart meters deployed globally and projections of 3.4 billion by 2033 (source: Transforma Insights), these devices enable real-time monitoring, grid optimization, and energy efficiency. The Asia-Pacific region, with 1.1 billion metering endpoints, leads the charge, driven by initiatives like India’s goal to install 250 million smart electricity meters by 2025. But as smart meters become more interconnected, they face growing risks of cyberattacks and tampering, making security paramount. Our team at Cavli tackled this head-on.

The Challenge: Securing Smart Energy Metering

Picture a top-tier OEM specializing in smart energy metering. Their smart meters collect sensitive data—like electricity usage patterns—that drive billing and grid insights. A single breach could skew data, cause unfair billing, or destabilize utility systems. The OEM approached Cavli with a challenge: while the C16QS module met their technical needs, they needed a Secure Boot environment to prevent unauthorized firmware modifications or tampering attempts.

Implementing Secure Boot was no small feat. The C16QS, though adaptable and secure by design, has limited RAM—1.25MB total, with ~1MB usable under operating conditions. The default firmware left just 160KB of RAM free, falling short of the 180KB needed for Secure Boot. Balancing this requirement without sacrificing performance was our mission.

Cavli C16QS: Built for Secure Smart Metering

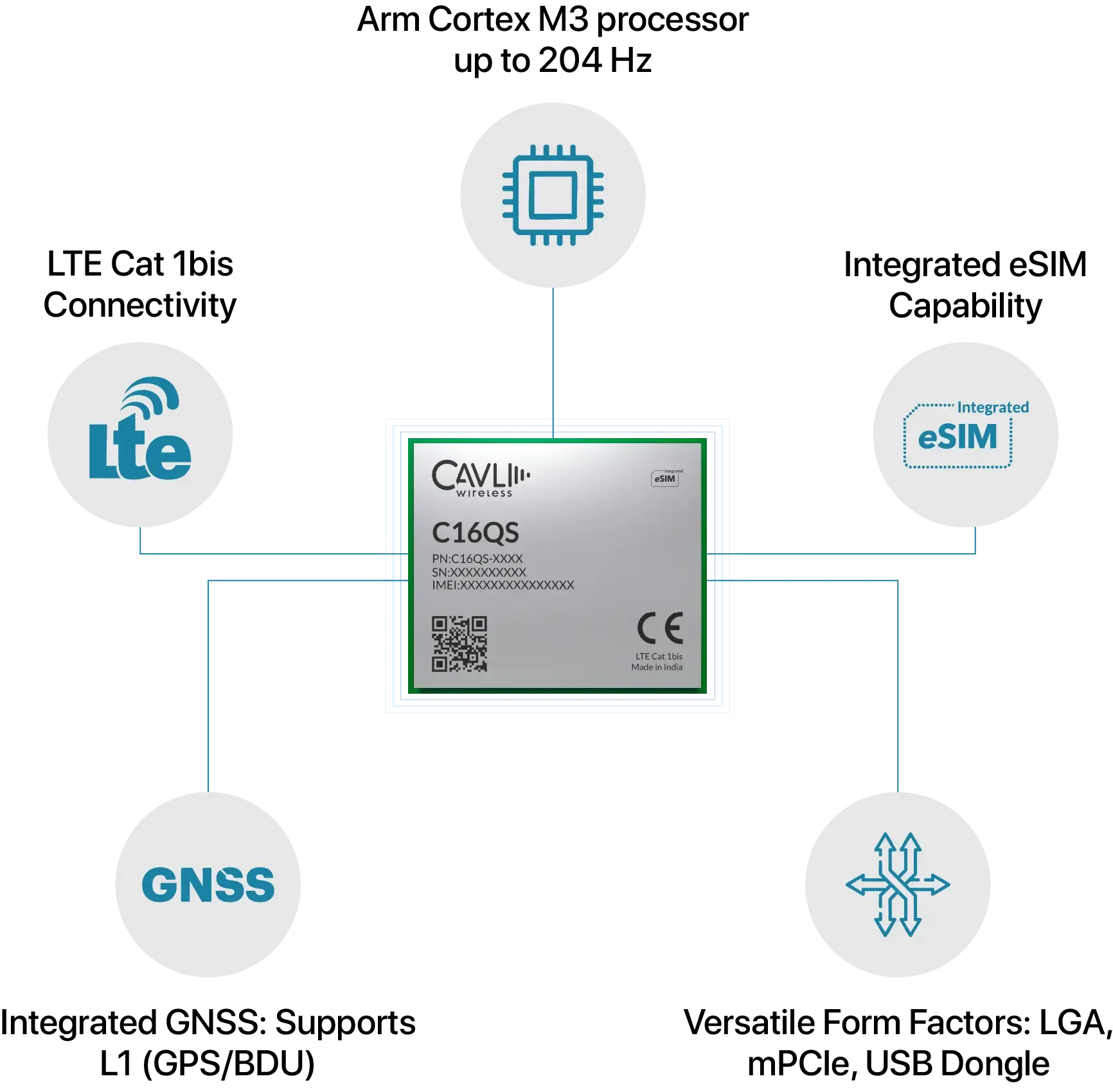

The Cavli C16QS IoT module is engineered for IoT applications like smart metering. Its key features include:

• LTE Cat 1bis Connectivity:

  Low-power, wide-area connectivity ensures reliable performance, even in remote areas.

• Qualcomm QCX216 Chipset:

  A Cortex M3 processor running at up to 204 MHz delivers efficient processing.

• Integrated GNSS:

  Supports L1 (GPS/BDU) for basic positioning requirements.

• eSIM Capability:

  Enables global connectivity with a streamlined setup, eliminating physical SIM cards.

Designed with FreeRTOS, the C16QS ensures efficient connectivity and low power consumption, making it ideal for smart electricity meters. But the OEM’s security demands pushed us to enhance its capabilities with Secure Boot.

What is Secure Boot and Why It Matters?

Secure Boot is a critical security feature that ensures only trusted software runs on a device during startup. Think of it as a digital gatekeeper: just like a security guard checks IDs before granting entry, Secure Boot verifies the authenticity of the firmware attempting to run on a smart meter. This prevents malicious code or unauthorized modifications from compromising the device, crucial for smart metering where tampering could lead to inaccurate readings, energy theft, or grid instability.

Here’s how Secure Boot works:

• Digital Signature:

  The manufacturer digitally signs the firmware, creating a unique fingerprint that verifies its origin and integrity.

• Verification at Startup:

  During startup or flashing, the C16QS’s Secure Boot mechanism checks the firmware’s digital signature against a trusted source.

• Access Granted or Denied:

  If the signature matches, the firmware runs. If it’s altered or doesn’t match, the device refuses to boot, blocking harmful code.

This process is vital for smart energy metering, ensuring data security and operational reliability.

Deploying a Secure Boot Environment

Implementing Secure Boot on the C16QS was a challenge due to its memory constraints. With only 160KB of free RAM in the default firmware stack, we fell short of the 180KB needed. This limitation demanded a meticulous review of the firmware to free up memory without compromising core functions like connectivity or processing.

Engineering a Custom Firmware Solution

Our engineering team collaborated closely with the OEM to understand their smart metering needs. We dove into the firmware, line by line, identifying non-essential libraries and code functions that could be streamlined or removed. This wasn’t a simple trim—every change required careful consideration to maintain the module’s performance for LTE Cat 1bis connectivity and FreeRTOS efficiency.

After multiple rounds of testing and optimization, we crafted a custom firmware stack that freed up over 180KB of RAM. This enabled a robust Secure Boot environment, ensuring the C16QS could verify firmware integrity without sacrificing functionality. The process was a technical triumph, showcasing our commitment to tailored IoT solutions.

Benefits of Secure Smart Metering with Cavli C16QS

For utility companies and smart meter manufacturers, the customized C16QS delivers substantial benefits:

• Rock-Solid Data Security:

  Secure Boot locks out unauthorized firmware changes, protecting sensitive data.

• Tamper-Proof Operations:

  Immediate detection of tampering attempts minimizes risks to the network or ecosystem.

• Accurate Billing:

  Reliable data ensures fair billing, fostering trust between providers and consumers.

• Remote Management:

  eSIM-enabled updates allow secure, seamless firmware updates across regions, reducing on-site maintenance.

• Grid Modernization:

  Secure smart meters support resilient, efficient energy grids, critical as the market grows.

If a tampering attempt occurs, Secure Boot flags unauthorized modifications instantly, preventing compromised firmware from affecting data or functionality. This safeguards the entire smart metering ecosystem, ensuring operational reliability and consumer trust.

Closing Notes: Pioneering IoT Security

Cavli’s partnership with the OEM reflects our dedication to secure, adaptable IoT solutions. By integrating Secure Boot into the C16QS, we met the high-security standards required for smart metering while delivering reliable connectivity and performance. This project highlights our approach: working closely with customers to engineer solutions that address their unique challenges. As IoT applications grow, Cavli remains committed to empowering our partners with resilient, future-ready smart metering solutions.
