Overcoming 5G NR-based IoT Design Challenges with Cavli's Dual Form Factor CQM211

OEM teams building high-throughput 5G IoT products often face the same engineering bottleneck: you can either optimize the hardware deeply for your end application, or you can move fast enough to meet aggressive roadmaps, but doing both usually means repeated PCB spins, interface compromises, and painful upgrade paths.

Three challenges show up repeatedly in product engineering cycles:

• Designing for 5G throughput without turning the module into a hinge that constrains the rest of the system architecture.
• Balancing customization vs. time-to-market, especially when multiple SKUs or regional variants are involved.
• Managing upgrade paths from LTE/transitional designs to full 5G NR, without rewriting your hardware strategy every cycle.

Cavli has built the CQM211 specifically to resolve this tension: deliver a 5G platform that’s compute-capable and interface-rich, while offering form-factor flexibility that supports both ground-up designs and fast migrations.


Introducing Cavli CQM211: Entry-Level 5G NR Connectivity Without Trade-Offs

Cavli’s CQM211 is a 5G NR/LTE Cat 16 cellular IoT module designed as a high-throughput IoT connectivity and compute platform, not just a connectivity add-on. At its core is the Qualcomm SDX61 chipset, designed to enable modern 5G product architectures where the modem is only one part of the story.

Under the hood, CQM211 pairs connectivity with on-module compute: an Arm Cortex-A7 CPU up to 1.8 GHz and a Hexagon DSP up to 1.5 GHz (Turbo). That combination allows OEMs to push more logic closer to the edge, especially valuable in throughput-heavy gateways, routers, and industrial network devices, where latency, protocol handling, and device intelligence must coexist with cellular performance.

CQM211 runs OpenWrt OS with extensive SDK support, giving engineering teams a familiar, extensible Linux environment for networking stacks, security tooling, device management agents, and custom services. Complementing that software flexibility is practical memory headroom: 1GB LPDDR4X + 4GB NAND, sized for real deployments where logs, certificates, containers/services, and update frameworks need room to breathe.

On the connectivity side, CQM211 supports 3x carrier aggregation, built for scenarios where sustained data rates and stable performance matter more than theoretical peak numbers. The antenna architecture is similarly engineered for deployment realities, with 5 antennas total (4× RF + 1× GNSS) to support robust cellular performance and satellite positioning.

For positioning, CQM211 is equipped with in-built, dual-band GNSS, covering GPS, GLONASS, Galileo, BeiDou, QZSS, SBAS, and NavIC, enabling improved resilience and accuracy in challenging environments.

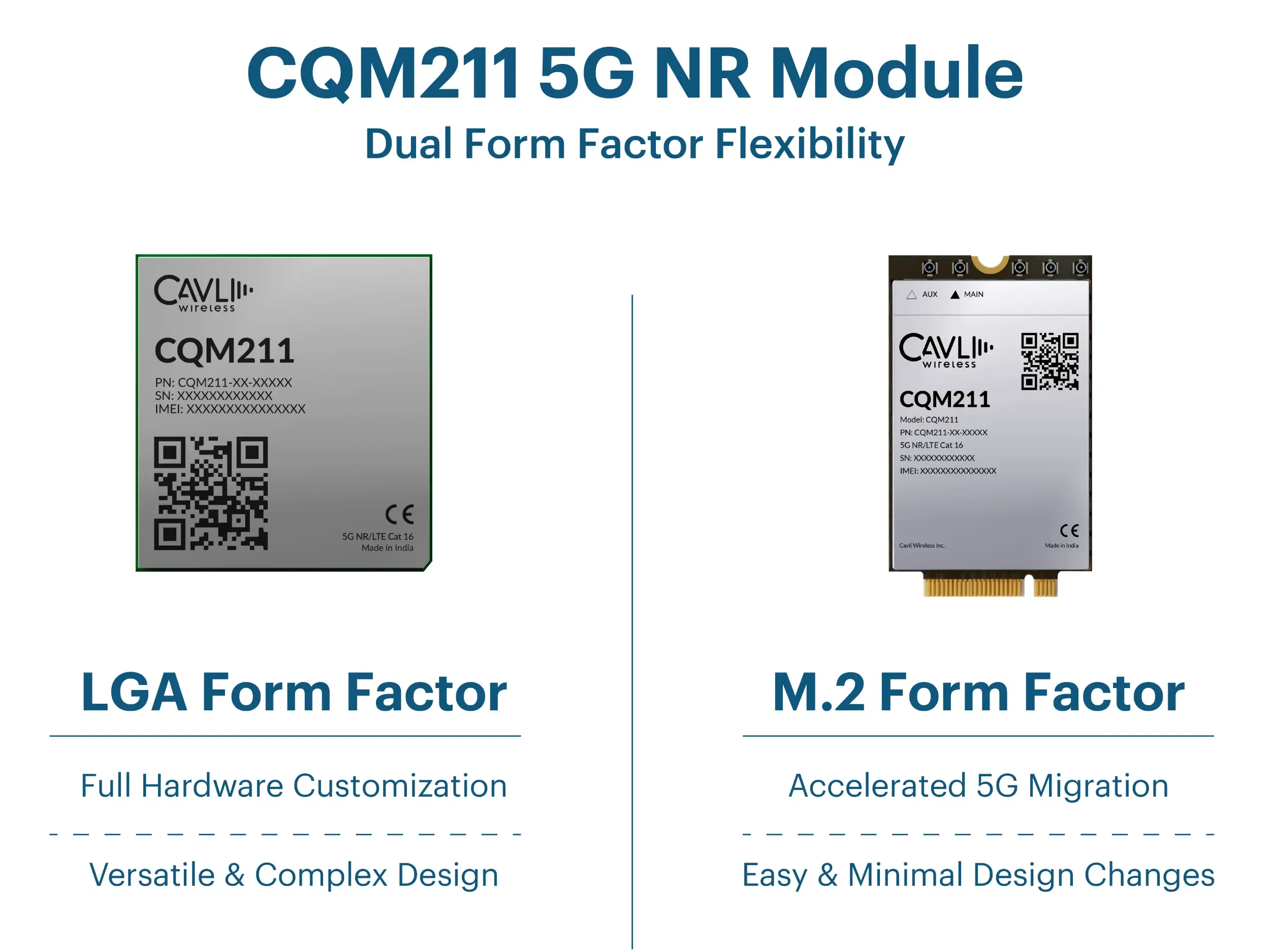

The EDGE Advantage: Dual Form Factor Strategy

CQM211 is available in two form factors: LGA and M.2. By offering both, Cavli enables two distinct OEM paths with the same core 5G platform:

- LGA for teams designing fully customized hardware with deep integration and maximum interface reach.
- M.2 for teams migrating existing LTE/RedCap-style modular designs toward 5G NR with minimal disruption.


A module shouldn’t force engineers to choose between innovation and iteration speed. CQM211’s dual form factor approach is what turns those specifications into a roadmap advantage.

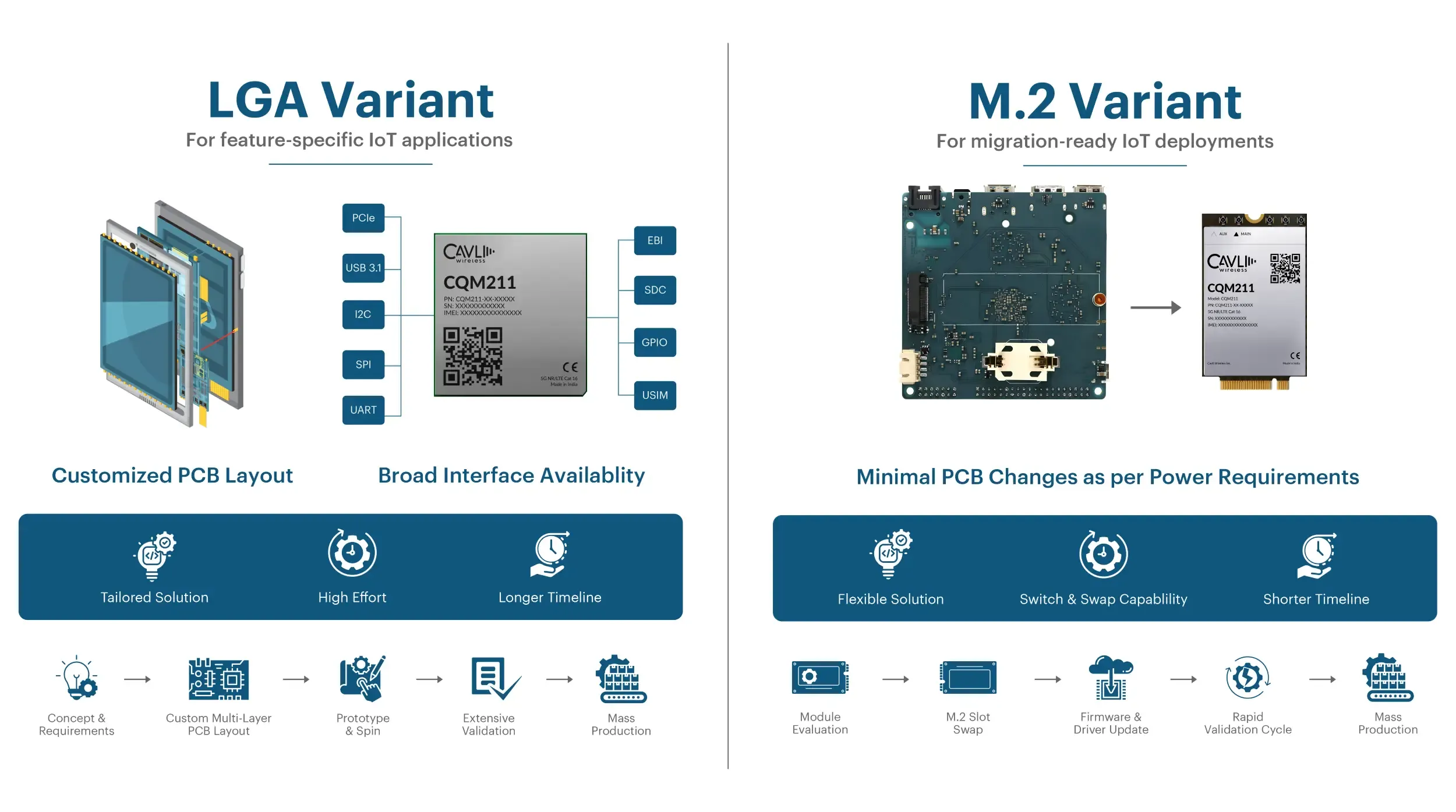

Engineering Implications for OEMs

LGA Variant enabling Full Hardware Customization

The LGA variant targets OEMs building throughput-intensive devices from scratch, products where the PCB, I/O map, enclosure constraints, and peripheral selection are central to differentiation.

CQM211 LGA provides broad interface availability to support complex system topologies:

• 1× COEX UART
• 2× USIM
• 3× UART
• HS USB 2.0 / SS USB 3.1
• 1× I2C
• 2× I2S
• 2× SPI
• PCIe Gen3 (2-lane)
• 1× SDC
• 16× configurable GPIO
• 8-bit/9-bit LCD via EBI2

Consider an OEM building an enterprise-grade CPE router that can use CQM211 LGA as the consistent 5G core while varying the surrounding architecture:

• Add PCIe-connected expansion for high-performance networking subsystems.
• Integrate additional storage for logging, local services, or offline buffering.
• Implement custom displays using EBI2 and buttons for field configuration and diagnostics.

Create multiple SKUs, different Wi-Fi options, Ethernet port counts, GNSS requirements, or management features, without changing the fundamental cellular compute base. For OEMs who view hardware as a competitive advantage, the LGA variant becomes a design canvas, a platform to build differentiated, performance-driven products without compromise.


M.2 Variant: For Accelerated 5G Migration

Not every roadmap has the luxury of a ground-up redesign. Many OEMs already ship LTE or transitional cellular products built around M.2 integration patterns. For these teams, the fastest path to 5G is the one that preserves validated system architecture.

CQM211 in M.2 form factor is engineered for that migration scenario, offering a clean interface set aligned with modular designs:

• HS USB 2.0 / SS USB 3.1
• PCIe Gen3 (2-lane)
• 1× I2S
• 2× USIM
• 1× COEX UART
• 1× I2C

Consider an OEM that develops industrial routers/gateways, deployed across multiple sites. CQM211’s M.2 enables practical upgrade strategies for the following scenarios:

• Drop-in migration pathway: when existing routers/gateways already support M.2-based cellular modules, integration effort can shift from “new hardware” to “targeted validation.”
• Reduced PCB redesign: fewer board changes mean fewer signal-integrity surprises and fewer enclosure iterations.
• Shortened validation cycles: a stable mechanical and electrical integration strategy typically simplifies regression scope.
• Faster certification continuity: preserving core platform behaviors can help streamline recertification planning (scope depends on region/operator requirements, but continuity helps).

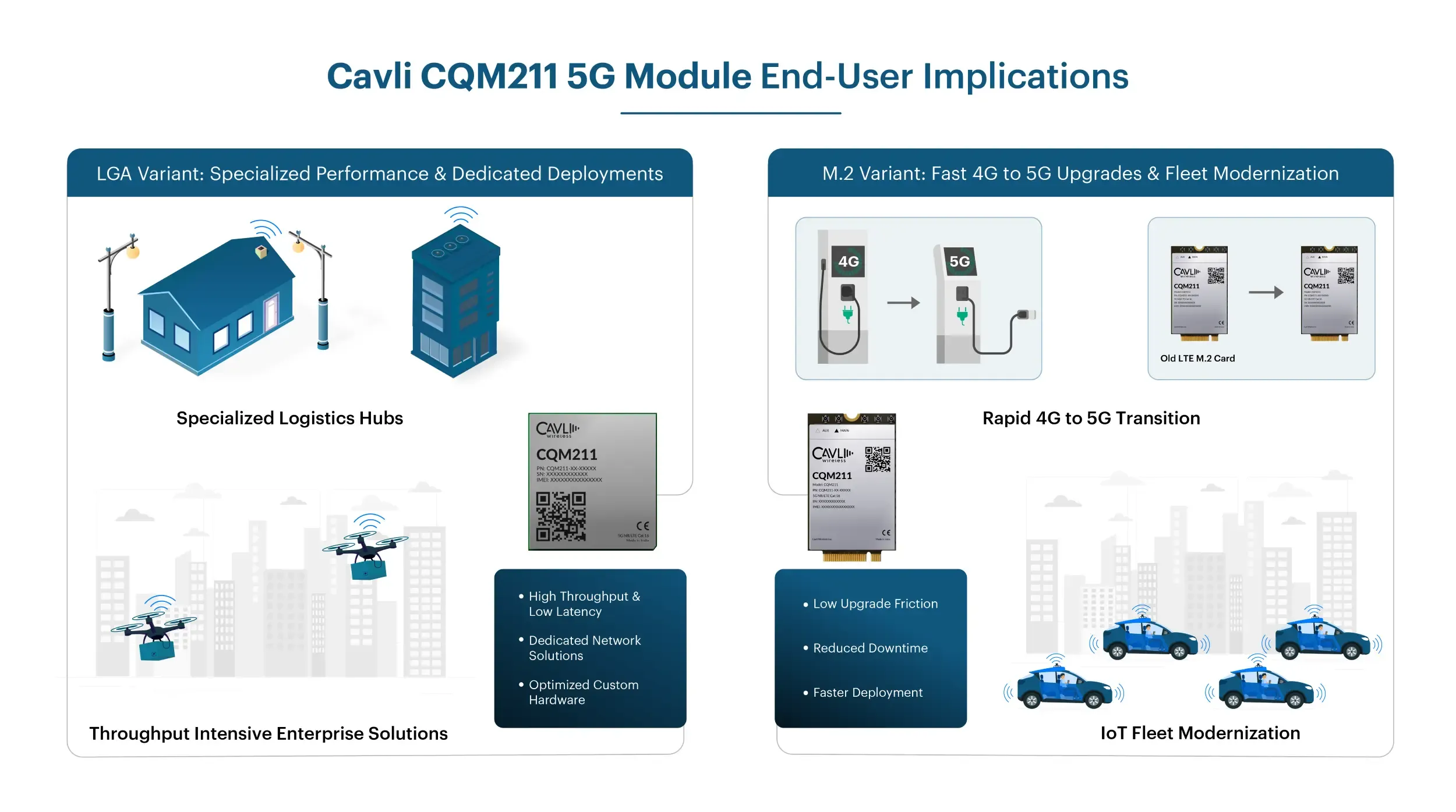

Practical Implications for End Users

OEM integration choices translate directly into operational outcomes for the end customer.

For LGA-based products:

• Highly specialized solutions tailored to exact environments, logistics hubs, manufacturing floors, remote sites, and enterprise campuses.
• Optimized performance because hardware is purpose-built around the application’s throughput, thermal, and I/O needs.
• Reduced integration compromises: fewer adapters, fewer interface constraints, more consistent system behavior under load due to minimal multi-vendor discrepancies.

For M.2-based products:

• Rapid 4G-to-5G transition with minimal operational disruption.
• Faster IoT fleet modernization, especially where existing devices can be upgraded efficiently.
• Lower upgrade friction: less downtime, fewer platform changes, and a cleaner rollout path.

The same CQM211 core platform supports both outcomes, because the business reality is that “best design” and “fastest deployment” are often strategic trade-offs that require deliberate architectural planning


Closing Notes: One 5G Platform, Two Integration Speeds

Cavli’s CQM211 is a flexible 5G compute platform engineered for next-generation, throughput-intensive IoT deployments. With LGA enabling deep customization and interface-rich product differentiation, and M.2 enabling accelerated migration and reduced redesign cycles, CQM211 supports OEM roadmaps on both ends of the integration spectrum.

Whether you’re building a differentiated enterprise FWA/CPE system from the ground up or upgrading an installed base of industrial gateways with minimal disruption, CQM211 is designed to be the 5G core you can standardize on.
