The Simple Network Management Protocol (SNMP) is a widely adopted application layer protocol used to monitor, manage, and configure devices across IP networks. It enables network administrators to collect and organize data from devices such as routers, switches, servers, printers, and IoT gateways, helping detect faults, optimize performance, and control devices remotely.

SNMP (Simple Network Management Protocol) functions at the Application Layer (Layer 7) of the OSI (Open Systems Interconnection) model. As an application-layer protocol, SNMP provides services directly to user applications for network management tasks. It allows data transmission between network devices, facilitating monitoring and control.

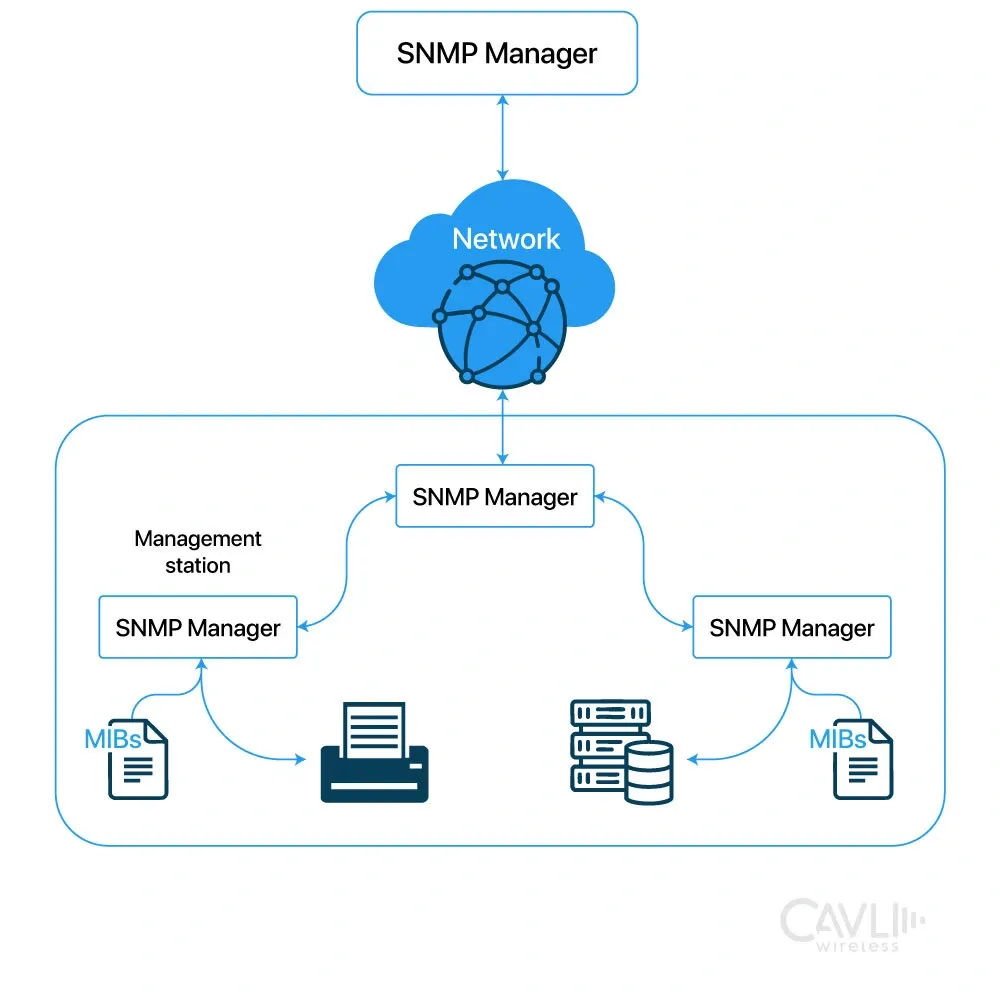

Components of SNMP Protocol

SNMP Protocol

Agents

Agents are software or firmware components on managed devices that collect and store management information. They communicate this information to the Network Management System (NMS) upon request.

Managed Devices

These are network nodes that contain an SNMP agent and reside on a managed network. Examples include routers, switches, servers, and workstations.

Network Management System (NMS)

NMS is the central system that monitors and controls managed devices. It provides processing and memory resources required for network management.

Management Information Base (MIB)

A Management Information Base (MIB) is a hierarchical, structured collection of information that acts as a virtual database for managing devices within a network. Each device, such as routers, switches, and servers, contains its own MIB, listing all data points the device can report to the SNMP manager. The MIB defines the properties of these managed objects, with each object identified by an Object Identifier (OID), which specifies both the data type and structure for managing the device's data.

Object Identifier (OID)

An OID is a globally unique identifier used to name each object (variable) in the MIB hierarchy. OIDs are used by SNMP protocol to specify the exact variable to be read or set on a managed device. They enable precise identification and access to the management data. OIDs are arranged in a tree-like hierarchy, with each node in the tree representing a managed object. They are usually represented as a sequence of numbers separated by dots (e.g., 1.3.6.1.2.1).

SNMP Manager

The SNMP Manager acts as the central system in the Simple Network Management Protocol architecture, communicating with SNMP agents on managed devices. The SNMP manager is also known as the Network Management System (NMS). It sends requests to SNMP agents on managed devices to retrieve or modify network information. It also receives unsolicited notifications with traps or inform, the mechanisms used by SNMP Agents to notify the SNMP Manager about significant network events or changes on a managed device. It includes software applications that implement SNMP protocols to perform network management tasks and also provides interfaces (often graphical) for network administrators to monitor and control devices.

How Does the SNMP Protocol Work?

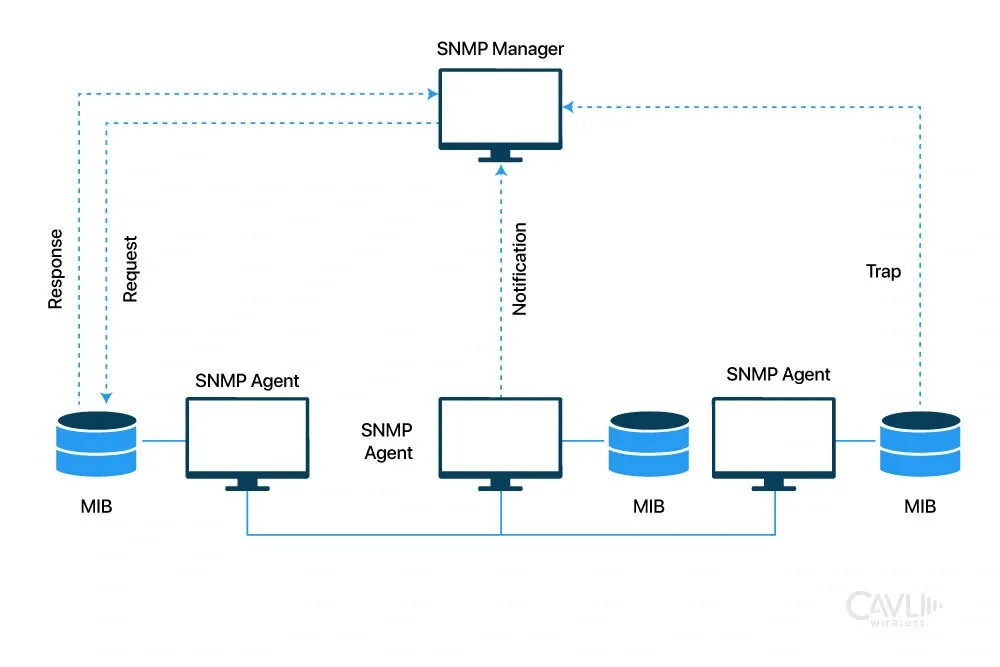

Working of SNMP Protocol

SNMP protocol orchestrates communication between the NMS and managed devices through a series of well-defined operations.

Data Collection

At the heart of SNMP's functionality is data collection. SNMP agents within managed devices gather information about various parameters like CPU usage, memory utilization, network traffic, and device statuses. This data is structured within the Management Information Base (MIB), which organizes it hierarchically for easy access and management.

Communication Protocol

SNMP operates over the User Datagram Protocol (UDP), utilizing SNMP port number 161 for general queries and SNMP port number 162 for receiving notifications or SNMP traps. UDP's connectionless nature ensures that SNMP messages are transmitted quickly without the overhead of establishing a connection, making it suitable for real-time monitoring.

To learn more about UDP, the connectionless transport protocol, navigate to our blog on the UDP Protocol

SNMP Operations

SNMP operations refer to the actions or commands defined by the SNMP protocol that can be performed by an SNMP manager (Network Management Station) to interact with SNMP agents on network devices. These operations specify what action is to be taken, such as retrieving data or setting configuration parameters.

Key SNMP Operations

• GET: Allows retrieval of the value of one or more specific Object Identifiers (OIDs) from an agent. It enables the manager to request information about the managed device.
• GETNEXT: Retrieves the next OID in the MIB hierarchy, allowing the manager to sequentially navigate through the Management Information Base (MIB).
• GETBULK (SNMPv2 and above): Efficiently retrieves large blocks of data, such as tables, by minimizing the number of protocol exchanges, optimizing data retrieval for large datasets.
• SET: Modifies or assigns the value of one or more specific OIDs on an agent. It is used to change configuration settings or control devices remotely.
• TRAP: Allows agents to send unsolicited notifications to the manager about significant events, alerting the manager without the need for a prior request.
• INFORM (SNMPv2 and above): Similar to TRAP but requires acknowledgment from the manager, ensuring reliable delivery of critical notifications.
• RESPONSE: Sent by the agent in reply to a request from the manager (GET, SET, etc.), containing the requested data or error information.
• REPORT (SNMPv3): Used for reporting errors or unusual conditions between SNMP entities, especially related to security, facilitating enhanced error handling in SNMPv3.

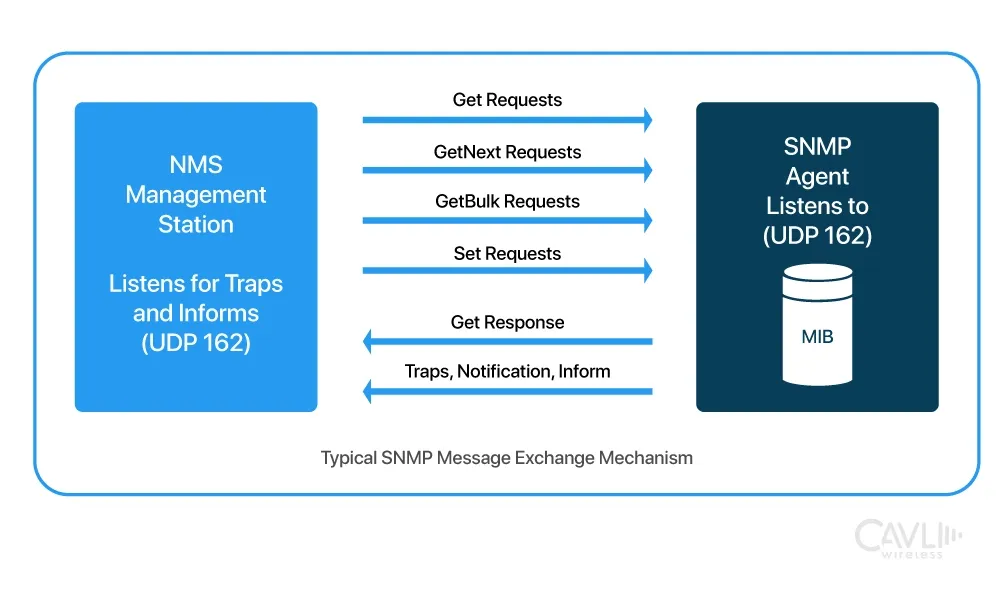

SNMP Message Types

The Simple Network Management Protocol (SNMP) uses different types of messages, known as Protocol Data Units (PDUs), to facilitate communication between the SNMP Manager (also known as the Network Management Station or NMS) and SNMP Agents on managed devices. These PDUs are categorized into:

• Request PDUs
• Response PDUs
• Notification PDUs

1. Request PDUs

Request PDUs are sent by the SNMP manager to the SNMP agent to perform various operations such as retrieving data or modifying configurations. The main types of request PDUs are:

a. GetRequest

Retrieves the value of one or more specific variables (Object Identifiers or OIDs) from the agent's Management Information Base (MIB). Commonly used for monitoring device status, performance metrics, or configuration parameters.

Workflow:

• Manager Constructs GetRequest PDU: Specifies the OID(s) of the variables to retrieve.
• Agent Receives GetRequest: Validates the request and retrieves the specified OIDs' values.
• Agent Sends Response PDU: Includes the requested values or error information if the request cannot be fulfilled.

b. GetNextRequest

Retrieves the value of the next variable in the MIB hierarchy relative to a given OID. Useful for discovering supported variables without knowing all OIDs in advance.

Workflow:

• Manager Constructs GetNextRequest PDU: Specifies the starting OID.
• Agent Processes Request: Determines and retrieves the next OID and its value.
• Agent Sends Response PDU: Contains the next OID and its value.

c. GetBulkRequest (Introduced in SNMPv2 and above)

Efficiently retrieves large blocks of data, optimized for bulk data retrieval, especially useful for large MIB tables.

Parameters:

• Non-repeaters: Specifies the number of variables to retrieve using simple GetNext operations.
• Max-repetitions: Indicates maximum iterations for repeating variables.

Workflow:

• Manager Constructs GetBulkRequest PDU: Sets non-repeaters and max-repetitions, specifies starting OIDs.
• Agent Processes Request: Retrieves multiple OIDs and values based on parameters.
• Agent Sends Response PDU: Includes a list of OIDs and corresponding values.

d. SetRequest

Modifies or assigns values to one or more variables on the agent, used to change configurations or control operations on managed devices. Requires permissions due to its potential impact.

Workflow:

• Manager Constructs SetRequest PDU: Specifies OIDs and new values.
• Agent Validates Request: Checks authorization, data types, and modifies allowed variables.
• Agent Applies Changes: Updates variables in the MIB.
• Agent Sends Response PDU: Confirms updates or reports errors.

e. InformRequest (Introduced in SNMPv2 and above)

Allows an SNMP manager to send information to another SNMP manager or agent, receiving confirmation. Useful in distributed management environments and ensures reliable delivery of information.

Workflow:

• Manager Sends InformRequest PDU: Includes event or condition details.
• Receiving Manager Processes InformRequest: Acknowledges with a Response PDU.
• Sending Manager Receives Response: Confirms receipt of InformRequest.

2. Response PDUs

Response PDUs are sent by the SNMP agent back to the SNMP manager in reply to request PDUs, containing requested data or error information.

a. Response

Provides results for GetRequest, GetNextRequest, GetBulkRequest, SetRequest, or InformRequest. Contains variable bindings with requested values or error information.

Workflow:

• Agent Constructs Response PDU: Includes requested data or error information.
• Manager Receives Response: Processes data or handles errors.

b. Report (Introduced in SNMPv3)

Reports errors or exceptional conditions between SNMP entities, especially for SNMP engine or security issues, enhancing error handling and diagnostics.

Workflow:

• SNMP Entity Detects Error: Determines it cannot process a received message.
• Entity Sends Report PDU: Includes error codes and diagnostic information.
• Sending Entity Receives Report: Adjusts behavior or configuration based on error information.

3. Notification PDUs

Notification PDUs are sent by the SNMP agent to the SNMP manager to inform about specific events or conditions without a prior manager request.

a. Trap

Unsolicited notification from the agent to the manager about significant events or alarms.

Usage:

• Agents proactively inform managers of conditions like hardware failures, threshold breaches, or security incidents.
• Traps are sent without expecting acknowledgment from the manager.

Workflow:

• Event Occurs on Agent: Triggers a predefined trap condition.
• Agent Constructs Trap PDU: Includes event information using specific OIDs.
• Agent Sends Trap to Manager: Typically uses UDP port 162.
• Manager Receives Trap: Processes notification, may trigger alerts or actions.

b. InformRequest

Similar to SNMP trap but requires acknowledgment from the manager, ensuring notification was received. Used for events requiring reliable delivery.

Workflow:

• Event Occurs on Agent: Triggers an inform condition.
• Agent Constructs InformRequest PDU: Includes event details.
• Agent Sends InformRequest to Manager: Expects a Response PDU acknowledgment.
• Manager Receives InformRequest: Processes notification and sends Response.
• Agent Receives Response: Confirms manager received notification; may retransmit if no response is received within a timeout period.

Understanding SNMP Versions and Choosing the Right SNMP Version

The Simple Network Management Protocol (SNMP) has evolved over time to address the growing needs of network management, performance optimization, and security enhancements. Understanding the different versions of SNMP is crucial for implementing effective SNMP monitoring strategies. Below is a comprehensive overview of the various SNMP versions:

1. SNMPv1 (Simple Network Management Protocol Version 1)

Introduced in 1988 as part of the Internet Engineering Task Force (IETF) RFC 1157, SNMPv1 is widely adopted in early, smaller network environments where security concerns are minimal. It introduced the fundamental framework for network management, allowing administrators to monitor and manage network devices with essential operations like GET, SET, and TRAP, using a hierarchical database structure for organizing managed objects.

Security

• Community Strings: Utilizes plaintext community strings (passwords) for authentication.
• Read-Only Community: Allows viewing of device information.
• Read-Write Community: Permits both viewing and modifying device configurations.

Limitations

• Lack of Encryption: Community strings are transmitted in clear text, making them vulnerable to interception.
• No Authentication Mechanism: Relies solely on community strings for access control, which is insecure.

2. SNMPv2 (Simple Network Management Protocol Version 2)

SNMPv2 introduced enhancements over SNMPv1, focusing on improved performance and expanded protocol capabilities. It introduced the GETBULK operation for more efficient data retrieval and improved protocol efficiency and scalability. SNMPv2 maintains compatibility with SNMPv1 and is suitable for environments needing better performance and scalability than SNMPv1.

Security

• Community Strings: Continues to use community-based security similar to SNMPv1.
• No Significant Security Improvements: Remains susceptible to plaintext transmission vulnerabilities.

3. SNMPv3 (Simple Network Management Protocol Version 3)

Released in 2002, SNMPv3 is recommended for modern network environments due to its comprehensive security features, making it essential for organizations handling sensitive data or operating in regulated industries.

Key Features

• Robust Security Framework: Addresses the security shortcomings of previous versions.
• User-Based Security Model (USM): Introduces authentication and encryption mechanisms.
• View-Based Access Control Model (VACM): Provides granular access control to MIB objects based on user roles.
• Message Integrity and Privacy: Ensures SNMP messages are secure and encrypted during transmission.

Security Details

• Authentication: Supports HMAC-MD5 and HMAC-SHA for verifying message sources.
• Encryption: Utilizes DES, AES, and other encryption algorithms for data protection.
• Access Control: Allows administrators to define user access to specific MIB objects.
• Mitigates Vulnerabilities: Replaces insecure community strings with secure user-based authentication.

Factors to Consider When Choosing an SNMP Version

Security Requirements

• High Security Needed: Opt for SNMPv3 for robust authentication and encryption.
• Minimal Security Concerns: SNMPv1 or SNMPv2c may suffice but are not recommended due to security vulnerabilities.

Network Size and Complexity

• Small Networks: SNMPv1 or SNMPv2c might be manageable.
• Large or Complex Networks: SNMPv3 offers better scalability and enhanced management capabilities.

Compliance and Regulatory Standards

• Regulated Industries: SNMPv3 is often necessary for compliance with data protection and security standards.

Legacy Systems

• Compatibility Needs: For older devices supporting only SNMPv1 or SNMPv2c, consider upgrading devices or using SNMPv3-capable management tools that support multiple SNMP versions.

SNMP in IoT: Bridging Traditional Networks and the Internet of Things

The Simple Network Management Protocol (SNMP) has long been a cornerstone for enterprise network management, and its role has expanded significantly with the rise of IoT deployments. SNMP protocol now plays a critical role in monitoring and managing large-scale IoT networks, providing reliable communication between network management systems and a vast array of connected devices.

Applications of SNMP Protocol in IoT

• IoT Device Management: Monitor battery, connectivity, and signal strength in large-scale sensor networks.
• Enterprise Networks: Track uptime, bandwidth usage, and device status in corporate infrastructure.
• Smart Cities: Manage traffic systems, environmental sensors, and public safety infrastructure.
• Industrial Automation: Oversee machinery health and predictive maintenance.
• Agriculture: Remotely monitor irrigation, soil moisture, and livestock conditions.

Implementation Considerations for SNMP in IoT Networks

• Bandwidth Optimization: Optimize polling intervals, leverage SNMP traps and informs for event-driven communication, and prioritize critical metrics to reduce network load.
• Power Management: Minimize frequent polling for battery-powered IoT devices by enabling event-based monitoring and adaptive polling strategies.
• Scalability: Architect hierarchical SNMP management structures to efficiently scale monitoring across thousands to millions of IoT endpoints.
• Security: Use SNMPv3 for robust authentication, encryption, and fine-grained access control. Combine SNMP security with network-level protections and zero-trust frameworks to safeguard IoT communications.
• Protocol Interoperability: Integrate SNMP monitoring with other IoT protocols like MQTT and CoAP to enable hybrid, flexible device management.

Benefits of SNMP Protocol in IoT

SNMP protocol delivers centralized and automated management, enabling proactive maintenance, reducing manual intervention, and optimizing resource utilization across diverse IoT networks. Its widespread support and standardization make it a dependable choice for device monitoring and control.

Emerging Trends in SNMP and IoT

SNMP continues evolving by integrating with cloud and edge computing platforms and incorporating AI-powered analytics for predictive monitoring and anomaly detection. The protocol adapts alongside advancing connectivity technologies like 5G and 6G, enhancing IoT scalability and security. Emerging architectures emphasize zero-trust security models and automated response mechanisms powered by machine learning.

Closing Notes

SNMP protocol helps to facilitate interaction between network administrators and a wide array of devices in a network. It enables both the monitoring of device health and performance, and the ability to actively manage network equipment, crucial for maintaining robust, reliable networking environments.

The critical nature of SNMP stems from its ability to provide real-time data and control mechanisms. In sectors where operational continuity is paramount, SNMP's functionality to detect and troubleshoot problems can substantially mitigate the risk of network downtime, and thereby ensure ongoing productivity and efficiency. Embracing SNMP monitoring within your IoT network management strategy enables your network to maintain optimal performance, ensure security, and achieve operational excellence.
