The Role of LwM2M Protocol in Optimizing IoT Device Communication

As James begins to grasp the significance of Lightweight M2M in IoT device management, let's dive deeper into this protocol that’s revolutionizing how we manage connected devices. Whether you're developing smart meters, industrial sensors, or asset tracking solutions, understanding LwM2M protocol is crucial for efficient IoT deployment.

What is LwM2M?

Lightweight Machine-to-Machine (LwM2M) is an open mobile industry standard developed by the Open Mobile Alliance (OMA) specifically for IoT device management. LwM2M protocol provides a complete framework for managing device lifecycles, from deployment to decommissioning.

Lightweight Machine-to-Machine (LwM2M) is directly connected to Machine-to-Machine (M2M) communication as a protocol designed to facilitate and optimize M2M communication in IoT (Internet of Things) environments.

The lightweight M2M protocol provides a standardized protocol for M2M communication. It uses a lightweight architecture based on the Constrained Application Protocol (CoAP), which is optimized for devices with limited resources (low power, memory, or processing capability).

Lightweight M2M Protocol Includes Capabilities for:

• Device configuration
• Firmware updates
• Fault diagnostics
• Monitoring and control


Lightweight M2M protocol ensures secure communication using DTLS (Datagram Transport Layer Security), enabling secure data transmission between devices and servers.

Key Features of LwM2M

Object-Based Resource Model

An object-based resource model is a hierarchical and structured approach for organizing and representing data.

For example, consider a temperature sensor. Here the temperature sensor is the object.

The resources are data points associated with an object (Temperature Sensor). The object has resources, such as Current Temperature, Maximum Temperature, etc.

The object is a logical group of resources, representing a specific type of data or functionality (e.g., device information, connectivity settings, or firmware updates).

Efficient Communication

• Built on the CoAP (Constrained Application Protocol) which is optimized for constrained environments.
• Uses a binary data format for minimal overhead and reduced bandwidth usage.
• UDP-based communication ensures low latency and minimal network load.

Built-in Device Management

Comprehensive lifecycle management capabilities:

• Remote firmware updates (FOTA) for seamless over-the-air improvements.
• Device configuration for adjusting operational parameters remotely.
• Diagnostics and monitoring for identifying and resolving issues.
• Power management to optimize energy usage in constrained devices.

Security Features

• DTLS-based security for secure communication over constrained networks.
• Device authentication to verify identity before communication.
• Access control mechanisms to ensure only authorized entities can interact with devices.
• End-to-end secure communication channels, established using DTLS, ensure data integrity and privacy over constrained networks.

Advanced Operations

Supports CRUD operations (Create, Read, Update, Delete).Enables advanced features like:

• Execute: Trigger specific functions on devices.
• Observe: Monitor resources in real time for event-driven actions.
• Conditional observations: Notify changes only when specific thresholds are met, improving efficiency.

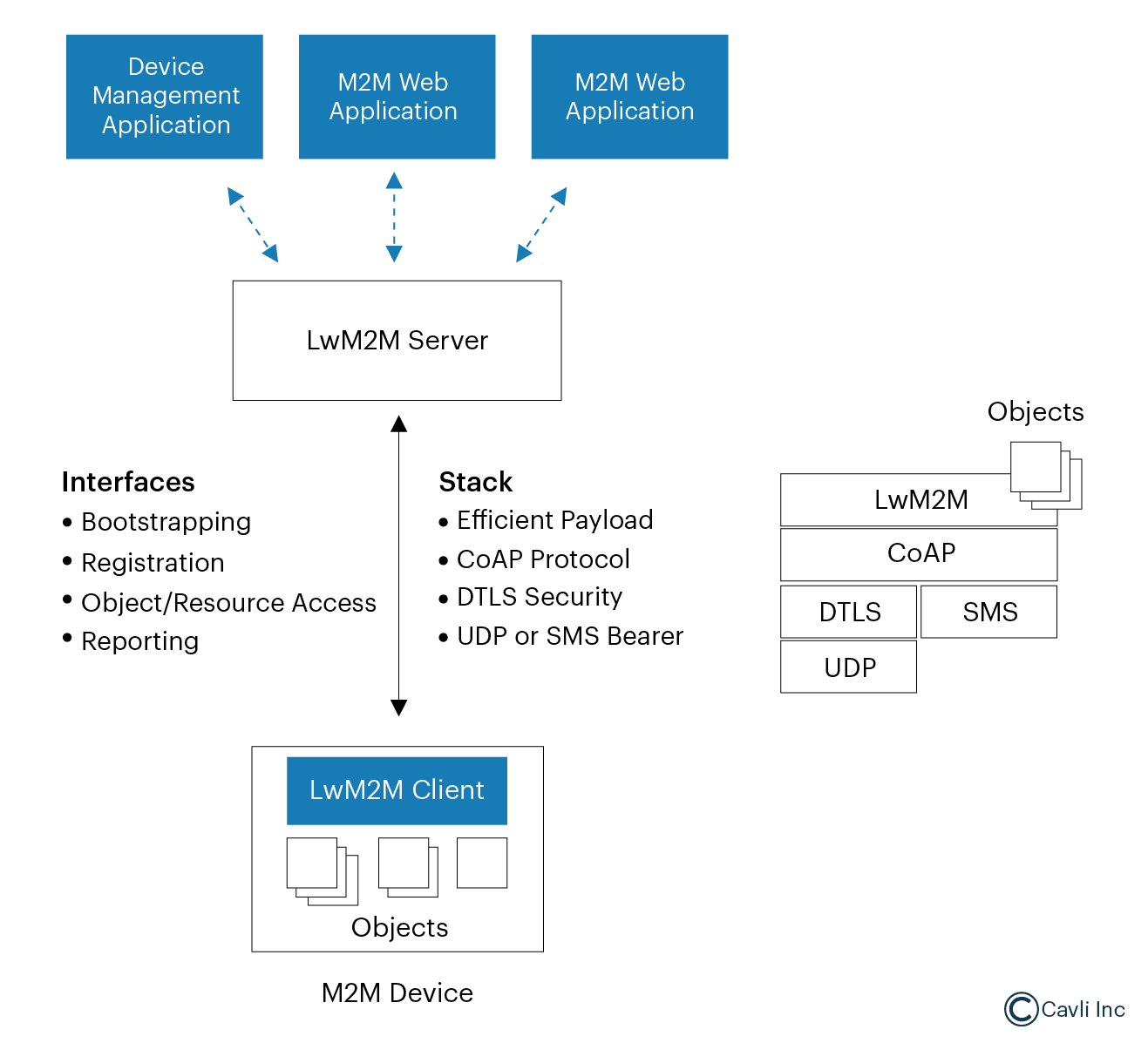

The Architecture of the LwM2M Protocol

LwM2M follows a client-server architecture consisting of three main components:

• LwM2M Client: The IoT device implementing the client interface
• LwM2M Server: The management system that controls the devices
• LwM2M Bootstrap Server: Responsible for initial device configuration and security setup

LwM2M Client

It is a software entity implemented on the IoT device. It manages communication with the LwM2M server and exposes device resources, i.e., provides access to specific functionalities, data, or settings of the device in a standardized way.

LwM2M Server

It is typically hosted in the cloud or on a local network. It manages multiple LwM2M clients by performing operations like monitoring, updating, and controlling devices.

Bootstrap Server

It helps devices connect to the appropriate LwM2M server by provisioning initial configuration details. Bootstrapping in LwM2M involves provisioning IoT devices (clients) with configurations, credentials, and server details. This process enables them to register with the LwM2M server and begin normal operations.

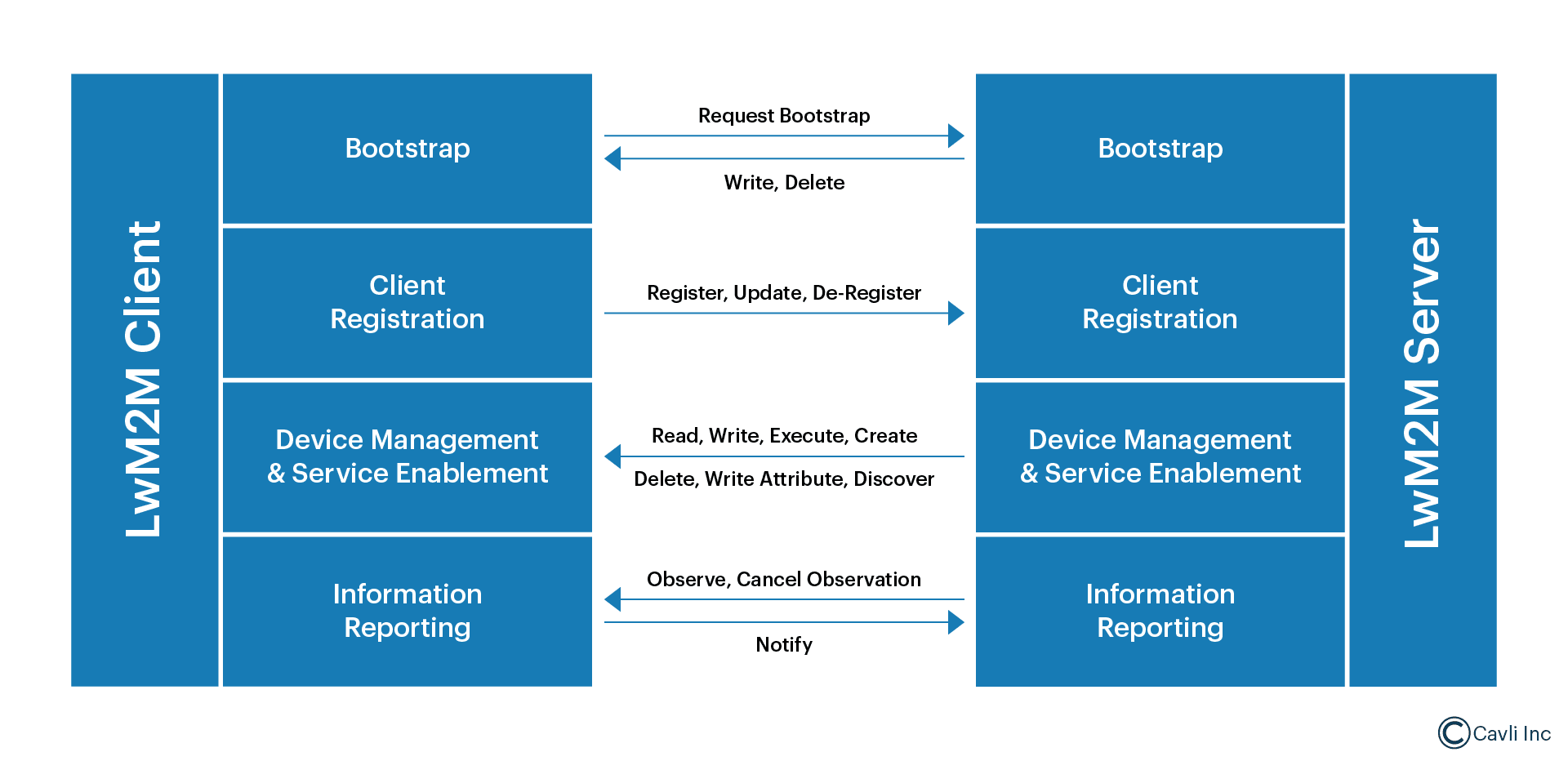

The Four Pillars of LwM2M Interface

LwM2M protocol defines four essential interfaces that form its operational foundation:

Bootstrap Interface

• Handles initial device setup and security configuration
• Ensures secure connection establishment
• Manages credential distribution

Client Registration Interface

• Enables device registration with the LwM2M server
• Handles device discovery
• Maintains device lifecycle states

Device Management and Service Enablement Interface

• Provides access to device resources
• Manages device configurations
• Enables remote operations

Information Reporting Interface

• Manages data reporting
• Handles resource observations
• Enables notifications and monitoring

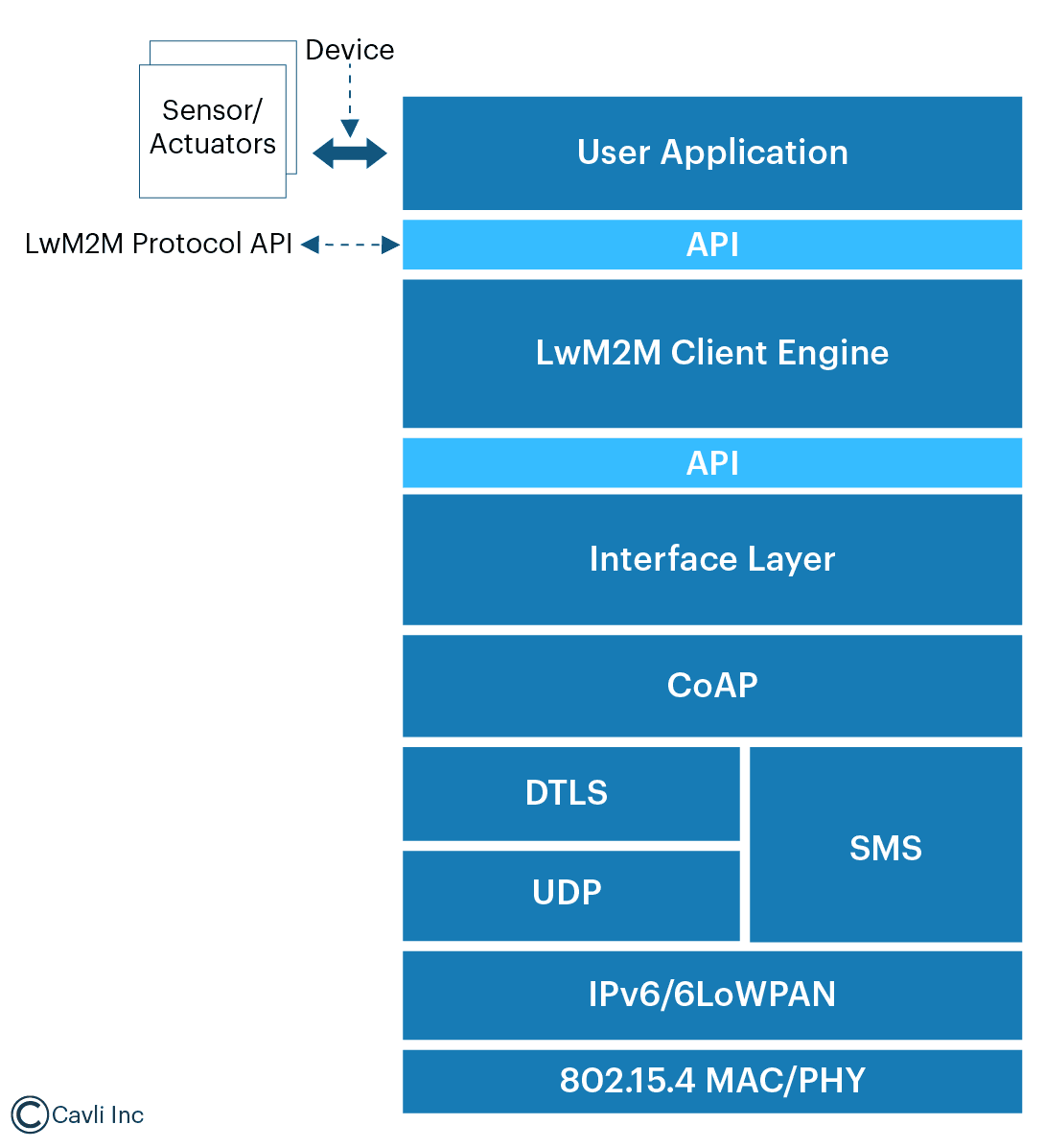

IoT Connectivity Protocol Stack

Layers of the IoT Connectivity Protocol Stack

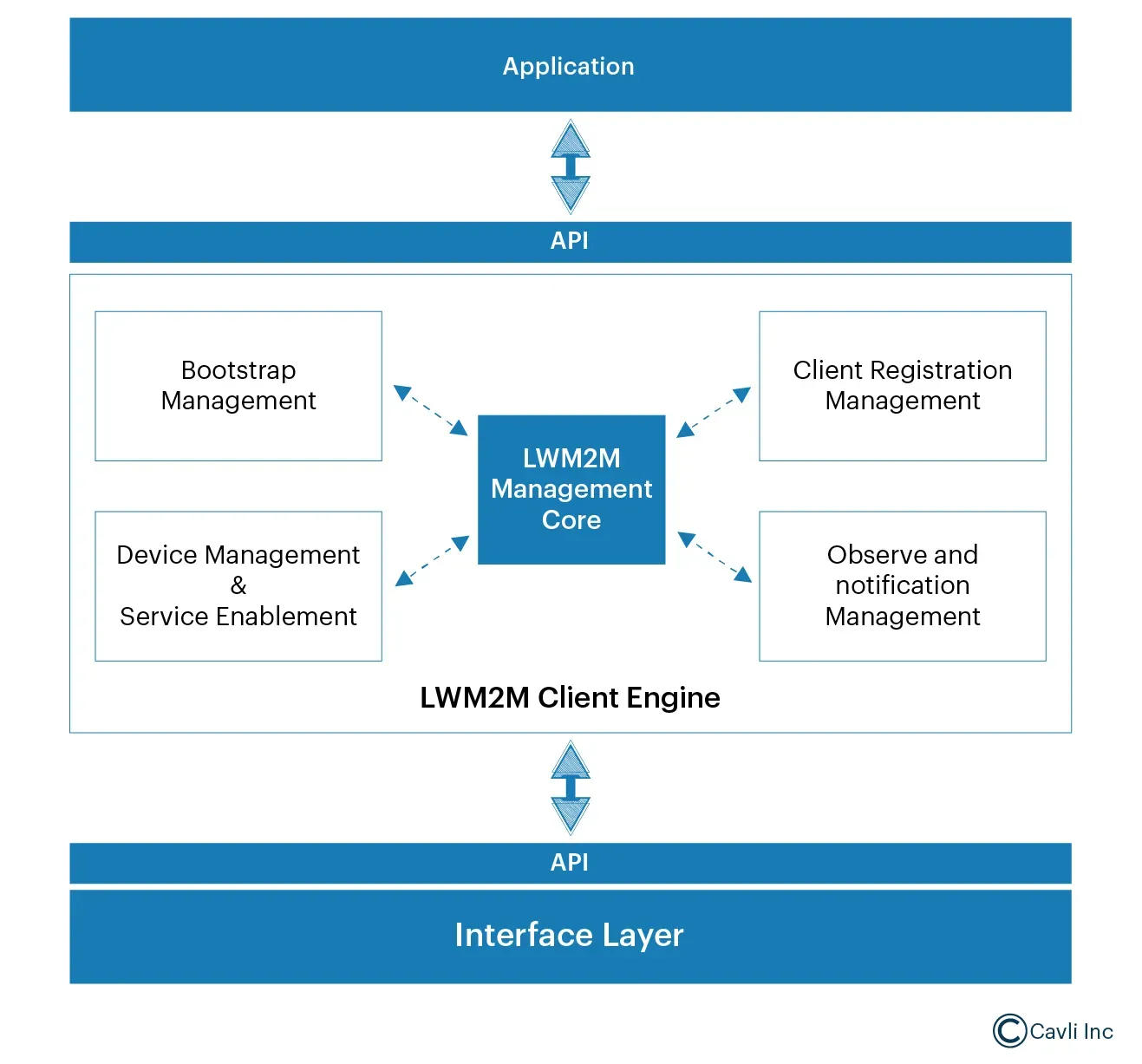

LwM2M Protocol Engine Core

The Protocol Engine Core is the application layer implementing the complete OMA Device Management and Service Enablement operations. It provides Application Programming Interfaces (APIs) for developers to interact with the LwM2M Client and Server efficiently.

Key tasks include:

• Managing objects and resources.
• Coordinating device registration, bootstrapping, and monitoring.
• Handling notifications and updates.

Interface Layer

It implements generic APIs that allow interaction with:

• OMA/IPSO Objects: Standardized objects that define specific device functionalities (e.g., location, firmware update).
• CoAP Protocol: Provides connectivity between client and server.
• Platform-Specific Implementations: Features like Firmware Over-the-Air (FOTA) updates for seamless firmware management.

The interface layer abstracts underlying hardware and connectivity details, ensuring developers can focus on application-level operations.

Constrained Application Protocol (CoAP)

CoAP is a lightweight RESTful protocol that forms the communication backbone between LwM2M clients and servers.

Functions include:

• Message Headers: For defining communication structure.
• Request/Response Codes: Support CRUD (Create, Read, Update, Delete) operations.
• Retransmission Mechanisms: Ensure reliability in low-bandwidth networks.

Note: LwM2M uses only a subset of CoAP features to maintain simplicity and minimize overhead.

Datagram Transport Layer Security (DTLS)

It provides a secure channel for all communication between the LwM2M Client and Server.

Key Security Features include:

• Encryption of data in transit.
• Authentication of devices.
• Protection against tampering or unauthorized access.

Transport Layer: UDP/SMS

UDP (User Datagram Protocol) is the mandatory transport mechanism for LwM2M, and it is indeed chosen for its low overhead and minimal resource requirements.

SMS Binding (Optional): It is used in environments where internet-based communication is unavailable or unreliable.

IPv6/6LoWPAN (Network Layer)

Provides IPv6 support for constrained devices by using 6LoWPAN (IPv6 over Low-Power Wireless Personal Area Networks).

It enables efficient communication in large-scale IoT deployments by optimizing IPv6 packet transmission for resource-constrained environments.

IEEE 802.15.4 MAC/PHY (Physical Layer)

This layer provides the physical and media access control (MAC) protocols for low-power wireless communication.

Typically supplied by chip vendors, it supports wireless sensor networks in IoT systems.

Other IoT Layers in the Protocol Stack

In a broader context, the IoT protocol stack includes additional layers that enhance the functionality and efficiency of IoT systems:

Application Layer

In IoT, this layer interacts with end-users and business processes. Examples include:

• HTTP/HTTPS: Common for web-based IoT applications.
• MQTT/AMQP: Protocols optimized for IoT messaging in cloud environments.

Middleware Layer

Acts as an intermediary, processing data from devices and enabling analytics. Common platforms in this layer include:

• IoT Gateways for local processing.
• Cloud services (e.g., AWS IoT Core, Azure IoT Hub).

Network Layer

Handles communication between devices and servers, often using:

• LPWAN technologies like LoRaWAN or NB-IoT for long-range communication.
• Wi-Fi, Bluetooth, or Zigbee for short-range communication.
• IPv6/6LoWPAN for energy-efficient, scalable networks.

Perception Layer

The bottom layer, consisting of sensors and actuators, enables the physical world to interact with digital systems.

Devices in this layer capture environmental data (e.g., temperature, humidity, motion) or perform physical actions (e.g., turning lights on/off).

Response Codes

Comparison Between Different LwM2M Protocol Versions

Understanding LwM2M Real-World Applications

Smart Metering

The protocol's lightweight nature makes it ideal for remote meter reading, allowing utilities to collect real-time consumption data through standardized objects without deploying field personnel.

• LwM2M's secure firmware update mechanism ensures meters can be updated remotely with new features and security patches, maintaining system reliability.
• Through its device management capabilities, the Lightweight M2M protocol enables utilities to remotely configure meter parameters, adjust tariff settings, and optimize performance.
• The protocol's observation and reporting features facilitate continuous monitoring of consumption patterns, helping both providers and consumers make data-driven decisions about resource usage and conservation.

Asset Tracking

• Lightweight M2M protocol enables real-time tracking of assets through its object model, which includes dedicated objects for location data and GPS coordinates.
• The protocol facilitates regular status reporting through its observation and notification mechanisms, allowing devices to send updates about their operational conditions.
• Battery management is streamlined using LwM2M's power management objects, which help monitor and optimize battery life.
• The protocol also supports maintenance scheduling by enabling remote device diagnostics and automated maintenance alerts based on predefined thresholds and device health parameters, ensuring proactive asset maintenance.

Smart Agriculture

• Lightweight M2M protocol enhances smart agriculture by providing a standardized and efficient communication framework for agricultural IoT devices.
• Through LwM2M's lightweight device management capabilities, farmers can easily configure and manage multiple sensors across their fields, monitoring soil conditions, nutrient levels, and pH values with minimal network overhead.
• The protocol's efficient data reporting model enables automated irrigation systems to respond instantly to real-time sensor data, ensuring precise water distribution while conserving resources.
• The protocol's firmware update capabilities allow remote maintenance of agricultural sensors and devices, ensuring they remain current with the latest features for crop monitoring and disease detection.
• LwM2M's resource-efficient design extends the battery life of field sensors, reducing maintenance needs while maintaining continuous monitoring of crop health and environmental conditions.

Closing Notes

Lightweight M2M (LwM2M) is a versatile and efficient protocol designed specifically for managing IoT devices in constrained environments. By leveraging a well-defined architecture and a lightweight protocol stack, including CoAP, DTLS, and UDP/SMS, LwM2M provides secure, scalable, and resource-efficient communication between devices and management servers.

LwM2M is a reliable choice for applications ranging from smart cities and industrial IoT to connected consumer devices. As IoT adoption grows, LwM2M stands out as a protocol that balances the need for functionality and efficiency, making it an essential component of modern IoT solutions.
