What is the ARP Protocol?

The ARP or Address Resolution Protocol is used primarily in local area networks (LANs) to map a device's IP address to its MAC (Media Access Control) address. This mapping is essential for communication within a network, especially in IPv4-based networks, where devices need to know the MAC address of a device to send data frames at the data link layer (Layer 2).

The ARP protocol works on the principle of address resolution, allowing devices to map an IP address to a MAC address in a local network. It uses broadcasting for the ARP Request and unicast for the ARP Reply to enable communication between devices that need to send data using MAC addresses.

Understanding the Relationship Between MAC Address and IPV4 Address

What is a MAC Address?

What is a MAC Address?

The MAC address or Media Access Control Identifier operates in the Data Link Layer in the OSI model. A MAC ID, also known as a MAC address, is a unique identifier assigned to the network interface (such as an Ethernet adapter or a Wi-Fi module). It ensures that data frames get delivered to the correct hardware device on a local network.

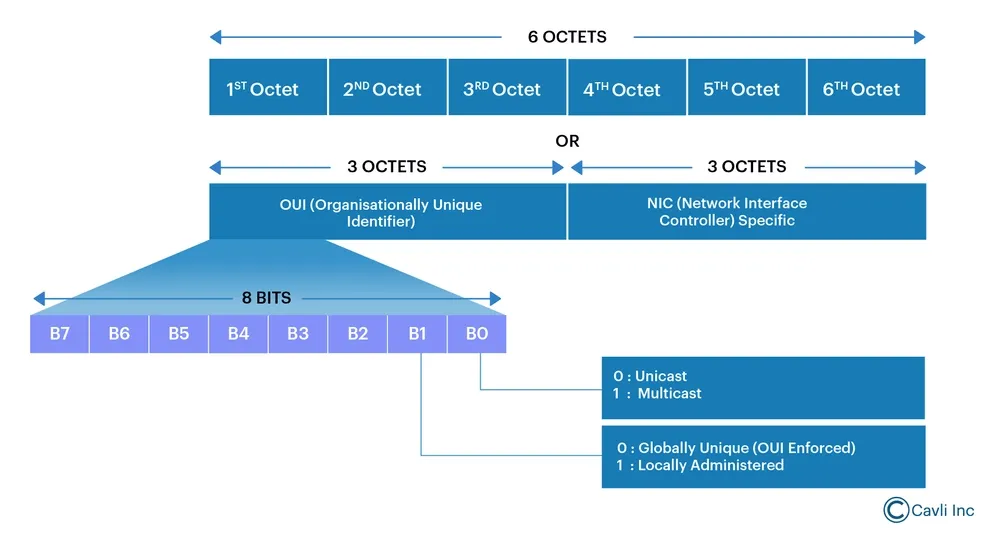

Structure of a MAC Address

The MAC address is typically represented as a 48-bit value, written as a series of 12 hexadecimal digits, usually separated by colons or hyphens.

Example: 00:1A:2B:3C:4D:5E

Unique Identification

Each network interface card (NIC) or networked device has a globally unique MAC address, usually assigned by the manufacturer, to facilitate seamless communication within local networks.

What is an IPV4 Address?

What is an IPv4 Address?

An IPv4 Address operates at the Network Layer in the OSI model. An IPv4 address is a unique identifier assigned to each device on a wide-area network, such as the Internet, for routing data between devices over the network.

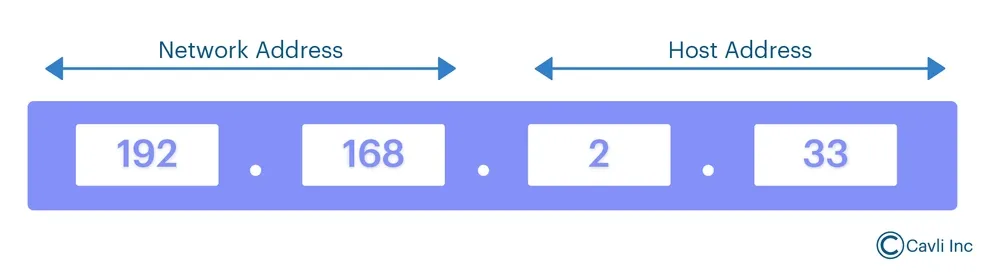

Structure of an IPv4 Address

An IPv4 address is a 32-bit address, usually written in the dotted-decimal format with four octets.

Example: 192.168.2.33

Details of an IPv4 Address

• Each octet consists of numbers between 0 and 255.
• This results in about 4.3 billion unique addresses.

Function of IPv4 Addresses

IPv4 addresses identify devices on different networks, including the Internet. They help routers to forward data packets from one network to another.

Relationship Between MAC Address and IPv4 Address

In an IPv4 network, when a device wants to communicate with another device on the same local network, it uses ARP (Address Resolution Protocol) to resolve the IPv4 address into a MAC address.

Key Points

• The MAC address operates at the local network level.
• The IPv4 address identifies devices across different networks or on the internet.

How It Works

When a device needs to send data to another device within the same network, it checks the IP address of the destination device. If the destination device's IP address is within the same local network, the sender uses ARP to resolve the IPv4 address to a MAC address. This allows the device to send the data directly to the correct network interface card (NIC) using the MAC address.

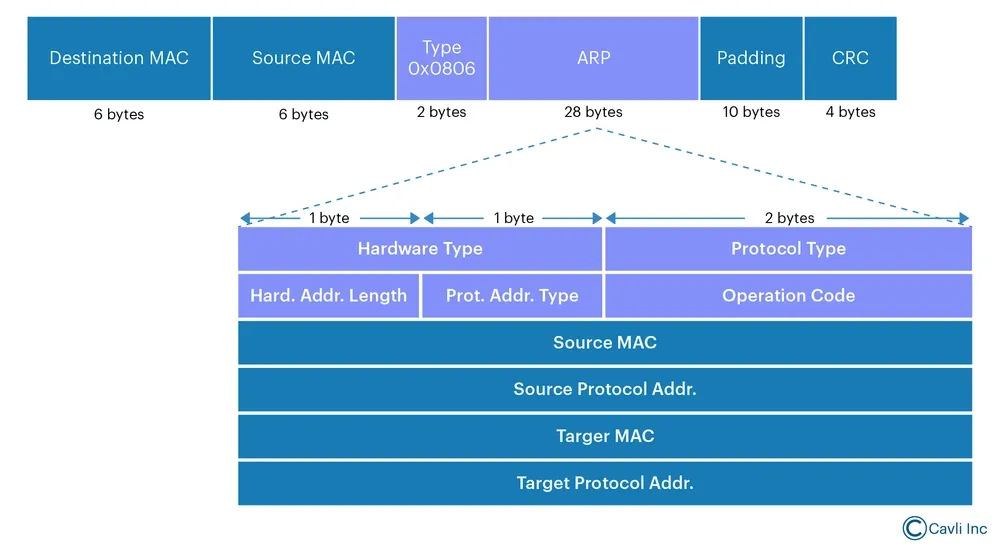

ARP Message Structure

Hardware Type (HTYPE):

• Size: 2 bytes (16 bits)
• This field specifies the type of hardware used for the network, typically Ethernet (0x0001). It identifies the link layer protocol.

Protocol Type (PTYPE):

• Size: 2 bytes (16 bits)
• This field specifies the type of protocol used at the network layer. Here, the Type field is set to 0x0806. It signifies the protocol used is ARP. While 0x0800 indicates IPv4 and 0x86DD is used for IPv6.

Hardware Address Length (HLEN):

• Size: 1 byte (8 bits)
• It specifies the length in bytes of the hardware address. For Ethernet, this is typically 6 bytes (48 bits).

Protocol Address Length (PLEN):

• Size: 1 byte (8 bits)
• It specifies the length in bytes of the protocol address. For IPv4, this is typically 4 bytes (32 bits).

Operation (OPER):

• Size: 2 bytes (16 bits)
• Indicates if the ARP message is an:
  • ARP Request: The sender wants to find the MAC address of a device with a given IP address.
  • ARP Reply: The sender is responding with its MAC address.

Sender Hardware Address (SHA):

• Size: 6 bytes (48 bits)
• It is the MAC address of the sender (i.e., the device issuing the ARP request or reply).

Sender Protocol Address (SPA):

• Size: 4 bytes (32 bits)
• It is the IP address of the sender (i.e., the device issuing the ARP request or reply).

Target Hardware Address (THA):

• Size: 6 bytes (48 bits)
• It is the MAC address of the target. In an ARP request, this field is set to 0s, as the sender is trying to find the target’s MAC address. In an ARP reply, this field contains the target’s MAC address.

Target Protocol Address (TPA):

• Size: 4 bytes (32 bits)
• The IP address of the target (the device whose MAC address is being queried or responded to).

Working of Address Resolution Protocol

Imagine that Device A wants to communicate with Device B over a local network. Device A knows Device B's IP address but also needs Device B's MAC address to send data frames to the data link layer (Ethernet frames). The MAC address helps the Ethernet frame headers to route the data correctly within the local network.

Step 1: ARP Request

Device A wants to send data to Device B, but it doesn't know Device B's MAC address.

• Device A checks its ARP cache to see if it already has a cached entry for Device B's IP address (e.g., 192.168.1.20).
• If there’s no cached mapping for 192.168.1.20, Device A sends out an ARP Request. This is a broadcast message to the entire local network asking: "Who has an IP address 192.168.1.20? Tell me your MAC address."
• The ARP Broadcast Request is sent to all devices on the local network because Device A doesn't know which device has the IP address. It's sent to the Ethernet broadcast address (e.g., FF:FF:FF:FF:FF:FF), which all devices in the local network can receive.

Step 2: ARP Reply

Device B, which has the IP address 192.168.1.20, will receive the ARP request.

• Upon receiving the request, Device B checks if the IP address matches its own. Since it does, Device B sends an ARP Reply to Device A.
• The ARP Reply is a unicast message (sent directly to Device A’s MAC address) containing Device B's MAC address (e.g., 00:1A:2B:3C:4D:6F).

Step 3: ARP Cache Update

Once Device A receives the ARP Reply, it stores the mapping of IP address 192.168.1.20 to the MAC address 00:1A:2B:3C:4D:6F in its ARP cache. This allows Device A to use this information for subsequent communication with Device B.

Step 4: Communication

Now that Device A has Device B’s MAC address, it can send an Ethernet frame containing the data and use Device B's MAC address as the destination address for the frame. The data is then delivered to Device B within the local network.

ARP Cache

Both Device A and Device B store IP-to-MAC address mappings in an ARP cache. This cache is maintained for a certain period (typically a few minutes) to avoid sending ARP requests repeatedly. If a device wants to send data to another device, it first checks its ARP cache to see if the mapping already exists.

• Example entry in the ARP cache:
  • IP Address: 192.168.1.20
  • MAC Address: 00:1A:2B:3C:4D:6F
• If the mapping has expired or the cache is empty, a new ARP request will be initiated.

ARP Request and ARP Reply Packets

ARP Request Packet

The ARP request is sent as a broadcast packet to the entire network. The ARP packet contains:

• Sender's IP address (Device A's IP)
• Sender's MAC address (Device A's MAC)
• Target's IP address (Device B's IP)
• Target's MAC address (unknown at this point)

ARP Reply Packet

The ARP reply is sent as a unicast message to the requesting device (Device A) and contains:

• Sender's IP address (Device B's IP)
• Sender's MAC address (Device B's MAC)
• Target's IP address (Device A’s IP)

Types of ARP Protocol

• Dynamic ARP: Automatically resolves an IP address to a MAC address by sending an ARP request and receiving an ARP reply.
• Static ARP: Manually configured mapping of an IP address to a MAC address that does not expire or change automatically.
• Proxy ARP: A router responds to ARP requests on behalf of another device not directly accessible in the same subnet.
• Gratuitous ARP: A device sends an ARP message to announce its IP-to-MAC mapping to the network, often used to refresh ARP tables or detect IP conflicts, even when no ARP request is sent.
• Inverse ARP (InARP): Resolves a MAC address to an IP address. InARP is used in Frame Relay and ATM networks where MAC addresses are already known, but IP addresses need to be discovered.

What is ARP Cache Poisoning?

ARP Poisoning or ARP Cache Spoofing is a type of cyber attack that manipulates the ARP cache of a device on the network by sending fraudulent ARP replies, causing the device to associate an incorrect MAC address with an IP address. This attack is possible because the ARP protocol itself has no built-in security mechanisms to authenticate the sender of ARP requests or replies.

In simpler terms, ARP poisoning occurs when an attacker sends false ARP messages over the network to trick a device (or multiple devices) into believing that the attacker's MAC address is associated with the IP address of another device (such as a router or another computer). Once this happens, the attacker can intercept, modify, or block network traffic causing security threats.

ARP Cache Spoofing: The Attack Process

• The attacker, often on the same local network, sends a fake ARP reply to Device A.
• This fake reply claims that the attacker’s MAC address is associated with the IP address of Device B (the target).
• Device A updates its ARP cache, thinking that the attacker's MAC address is the correct one for Device B's IP address.
• Now, when Device A tries to send data to Device B, the traffic is instead sent to the attacker.

ARP Poisoning: The Impact

• Man-in-the-Middle (MitM) Attack: The attacker can intercept the communication between Device A and Device B, allowing them to eavesdrop, modify, or even inject malicious data.
• Denial of Service (DoS): The attacker can also cause a DoS by dropping or blocking the intercepted packets, effectively preventing communication between devices.
• Traffic Redirecting: In more sophisticated attacks, the attacker may redirect traffic to external malicious servers (e.g., redirecting all traffic from a device to a fake gateway).
• VLAN Hopping: ARP poisoning can be combined with VLAN hopping to extend the attack across VLAN boundaries.

ARP Poisoning Vulnerabilities:

• No Authentication in ARP: Since the ARP protocol lacks an authentication or validation mechanism, any device on the same network can send an ARP reply, including malicious devices.
• Easily Targeted: Devices with incorrect ARP mappings (caused by spoofing) will unknowingly send data to the attacker, leading to malicious movements.

Mitigation Measures Against ARP Poisoning

• Static ARP Entries: Manually configuring ARP mappings on devices ensures that ARP tables can’t be altered by spoofing. However, this approach is not scalable in large networks.
• ARP Spoofing Detection Tools: Network administrators can use tools like ARPwatch, XArp, or Snort to monitor and detect unusual ARP activity or changes in ARP tables.
• Dynamic ARP Inspection (DAI): Managed switches support DAI, which can verify ARP packets based on known, trusted IP-to-MAC bindings, ensuring that only valid ARP replies are accepted.
• IPSec/TLS Encryption: Encrypting the traffic between devices using protocols like IPSec or TLS prevents an attacker from easily reading or modifying intercepted data.
• Segmentation and VLANs: Network segmentation through VLANs can help limit the ARP broadcast domain and reduce the attack surface available to an attacker attempting ARP cache spoofing.
• Using HTTPS for Communication: Secure web traffic (HTTPS) and other encrypted communication protocols (like SSH) can protect data integrity even if an attacker intercepts it.

Closing Notes

The ARP is essential for efficient local network communication. ARP is a vital protocol for resolving IP addresses to MAC addresses. It improves network efficiency by caching these mappings and reducing the need for repeated ARP requests. Although ARP operates in a simple, connectionless manner, it plays a fundamental role in ensuring seamless data transmission between devices on a subnet.
