The Ultimate Guide to LTE Cat 1 bis Technology

LTE Cat 1bis modules, also known as LTE Category 1 bis, is a recent development in wireless communication standards that is emerging as a frontrunner in IoT and M2M communication. As part of the 3GPP Release 14 specifications, it represents an evolution of the original LTE Cat 1 technology , which is designed to provide optimized and power-efficient connectivity for IoT devices.

One of the key features of Cat 1 bis technology is its enhanced power efficiency. The beauty of Cat 1 bis based IoT devices are the features like extended discontinuous reception (eDRX) and power-saving mode (PSM) for longer sleep cycles. The improved power efficiency of Cat 1.bis helps in achieving this objective, making it highly suited to applications like smart metering, asset tracking, and environmental monitoring, where devices may be deployed in remote or hard-to-reach locations.

In this blog, we will dive deeper into the LTE Cat 1 bis technology, applications, advantages and industry impacts.

What is LTE Cat 1 bis?

LTE Cat 1 bis, an evolved version of the LTE Cat 1 standard, introduces a significant advancement in cellular communication for Internet of Things (IoT) and Machine to Machine (M2M) applications. What sets LTE Cat 1 bis apart is its support for a single antenna design for IoT devices. Unlike LTE Cat 1, which typically employs two antennas, LTE Cat 1 bis allows IoT devices to operate efficiently with just one antenna. This advancement in antenna design enables IoT device manufacturers to streamline their designs and reduce costs while still benefiting from the capabilities of LTE Cat 1. Let's discuss this in detail further below.

Technical Features and Specifications of Cat 1 bis technology



The antenna configuration of LTE Cat 1 bis

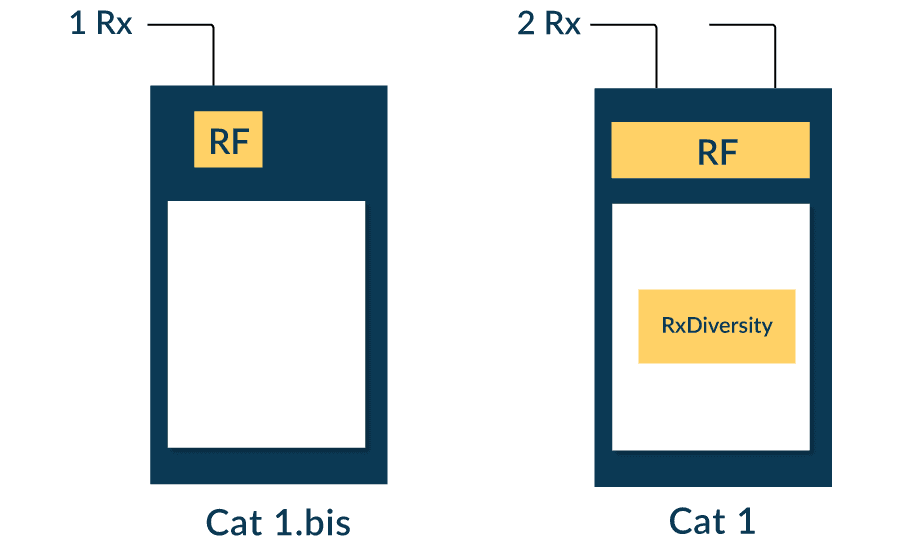

Difference in antenna configuration between Cat 1 bis and Cat 1

The difference in antenna configuration between Cat 1 bis and Cat 1

LTE Cat 1 bis has been specifically tailored to address the need for simplified antenna configurations in IoT deployments. By offering the same level of network capability as LTE Cat 1, IoT devices adopting LTE Cat 1 bis can seamlessly connect to cellular networks while utilizing a single antenna. This advancement opens up new possibilities for IoT device manufacturers,

  • Cost-effective
  • Compact design
  • Simplified antenna design

The Cat 1 bis technology is also known for its superior data rates compared to traditional LPWAN technologies. It provides downlink speeds of up to 10 Mbps and uplink speeds of up to 5 Mbps, which means it offers data speeds similar to Cat 1.

With 2G networks facing lesser acceptance and LPWAN technologies often falling short in terms of bandwidth and latency, LTE Cat 1 bis presents a far more compelling proposition. This makes it a more versatile solution that can cater to a wide range of IoT applications beyond just data transfer.

Lower power consumption of Cat 1 bis

The advent of LTE Cat 1 bis technology is revolutionizing the wireless communication landscape, offering a robust and energy-efficient alternative to the aging 2G networks and low-power wide-area network (LPWAN) technologies. This technology is particularly suited for IoT and M2M applications, marking a new era of connectivity that balances power consumption, performance, and cost.

 Cat 1 bisLTE-M
Power-Saving Mode (PSM)1.7µA1.4µA
e-DRX=81.92s, PTW=2.56s<50µA< /p>120µA

A significant advantage of Cat 1 bis lies in its power consumption, which aligns with LPWAN levels, thereby ensuring longevity for IoT devices operating in the field. This is particularly beneficial for IoT devices such as energy meters and trackers, which remain inactive most of the time and wake up only occasionally to send and receive data.

3GPP has introduced features like extended discontinuous reception (eDRX) and power-saving mode (PSM) for longer sleep cycles, which are commonly used in NB-IoT and LTE-M networks. These features are also applicable to Cat 1 bis devices. However, Cat 1 bis devices have an edge when it comes to the time a device must be in active mode to complete a data transaction or ON time.

For instance, to upload or receive 500 bytes of data on NB-IoT and LTE-M, the device ON time is 400 milliseconds and 40 ms respectively. In contrast, a Cat 1 bis device can complete the same data transaction in just 8 ms at 500 Kbps of throughput. This indicates that Cat 1 bis devices can achieve the same tasks in a fraction of the time, thereby conserving energy.

The combination of reduced power consumption, space efficiency, and competitive data rates underscores the potential of Cat 1 bis technology as a game-changer in the realm of IoT connectivity. As such, LTE Cat 1 bis is increasingly becoming the preferred choice for IoT and M2M applications.

Cat 1 bis aligns its power consumption with LPWAN levels, providing the much-needed longevity for IoT devices operating in the field. This combination of reduced power consumption, space efficiency, and competitive data rates underscores the potential of Cat 1 bis technology as a game-changer in the realm of IoT connectivity.

Comparison between NBIoT, LTE-M and Cat 1 bis

FeatureNB-IoTLTE-MCat 1 bis
Bandwidth200 KHz1.4 MHz1.4 MHz
Downlink Peak Speed27 kbps1 Mbps10 Mbps
Uplink Peak Speed66 kbps1 Mbps5 Mbps
Duplex ModeHalf DuplexFull or Half DuplexFull Duplex
Frequency DeploymentIn-band, guard-band, standaloneIn-bandIn-band
Number of Antennae1 (SISO)1 (SISO)1 (SISO)
Transmission Power23 dBm23 dBm23 dBm
Indoor PenetrationExcellentGoodGood
Cells Capacity50,000 - 100,000 devices per cell1,000 devices per cell1,000 devices per cell
Data and VoiceData only

Data and Voice

*Capable of Voice if there is VoLTE license.

Data and Voice

*Capable of Voice if there is VoLTE license. Data also supports Video

MobilityLimitedFull mobility and handoverFull mobility and handover
Module CostLower costHigher costModerate cost
Coverage/PenetrationGreat coverage and penetrationGreat coverage and penetrationGreat coverage and penetration
Global AvailabilityGood availability. Requires new infrastructure. Cheaper to roll out than LTEGreat availability where LTE already exists. Built on existing LTE technologyGreat availability where LTE already exists. Built on existing LTE technology
Roaming CapabilityTechnically possible, but basically non-existent in realityGood roaming availabilityGood roaming availability
Power Saving FeaturesPSM and eDRX supportPSM and eDRX supportPSM and eDRX support
Freedom to LeaveTypically no SMS support. Not good for freedom to leave and eUICC (eSIM)Supports freedom to leave and eUICC (eSIM)Supports freedom to leave and eUICC (eSIM)
Use CasesFits in static monitoring applications where a low data transmission is requiredBest for tracking and mobility applications with moderate data transmission requirementsBest for tracking and mobility applications with higher data transmission requirements

LTE Cat 1 bis provides higher bandwidth compared to LTE-M and NB-IoT, making it suitable for applications with more demanding data requirements, including voice or video. LTE-M offers mobility support and voice capabilities, while NB-IoT excels in coverage, power efficiency, and long-range connectivity. The choice between these technologies depends on the specific requirements of the IoT application, such as data rates, power consumption, mobility, and coverage needs.

Applicable Industries

Automotive -Logistics.svg

Automotive & Logistics

Agriculture

Agriculture

Health Care

Health Care &
E-Health

Retail

Retail

Smart Home

Smart Home

Smart City

Smart City

Energy Utilities

Energy & Utilities

Safety Security

Safety & Security

Manufacturing

Manufacturing

LTE Cat 1 bis IoT module - Cavli C16QS

The Cavli C16QS, an LTE Cat 1 bis IoT module, is a standout product in the IoT market. It's designed to meet the diverse needs of global IoT applications, offering a perfect blend of performance, affordability, and advanced features.

The C16QS module operates on the LTE Cat 1 bis technology, which provides a peak speed of 10 Mbps downlink and 5 Mbps uplink and comes with the option of an integrated eSIM & GNSS capability. This ensures efficient data transmission and makes it ideal for tracking and mobility applications that require higher data transmission rates.

C16QS LTE Cat 1bis IoT ModuleCavli C16QS Cat 1.bis module

One of the key features of the C16QS module is its affordability. Priced competitively, it offers businesses a cost-effective solution for their IoT needs without compromising on performance or features. This affordability is a significant factor in promoting IoT adoption across various industries.

Integrated e-SIM on C16QS enables global connectivity. This means devices equipped with the C16QS module can operate seamlessly across different countries and networks, making it a truly global IoT solution.

Furthermore, the C16QS module is enhanced by the Cavli Hubble IoT platform. Cavli Hubble provides a suite of services, including connectivity management, device management, and data management, that boost the module's functionality and ease of use. With the Hubble platform, businesses can manage their IoT devices more efficiently and make data-driven decisions.

CavliC16QS comes with 3 region-specific variants each for

  • EA - EMEA + APAC
  • NA - North America
  • WW - Global

Key Highlights

Integrated eSIM

Integrated Hubble eSIM

Powered by Cavli Hubble

Powered by Cavli Hubble



Applicable regions - (APAC, EMEA, N.America and Global)

GNSS Support

GNSS Support

Technical details

FeatureDescription
Cellular Bands Supported

E.A (EMEA/ APAC Variant) bands: 1/3/5/8/20

N.A (North America Variant) bands: 2/4/5/12/13/66
WW(GLOBAL Variant)bands: /2/3/5/7/8/12/18/19/20/25/26/28/39/40/41

Supported Location ServicesGPS, GLONASS, BEIDOU, GALILEO, QZSS, and NAVIC
SpeedDownload speed: 10Mbps
Upload speed: 5Mbps
Package Dimensions26.5mm x 22.5mm x 2.3mm



Interfaces of Cavli C16QS

InterfaceDescription
Power Interface

Voltage range: 3.4V to 4.2V

Optimal operating voltage: 3.7V

Switching Machine Reset ModeAllows seamless switching and resetting, enhancing operational flexibility and reducing potential downtime
USB InterfaceUSB2.0 interface for high-speed data transfer, facilitating quick communication between C16QS and other devices
UART InterfaceThree UART lines for seamless AT command, debug and data transfer capabilities
uSIM InterfaceSupports 3.0V/1.8V SIM cards, enabling flexible network connectivity options
GPIO InterfaceFour GPIO interfaces for extended functionality and customization based on specific application requirements
Network Status Indicator InterfaceProvides real-time network status information
Power On Indication InterfaceProvides information of module power status
I2S Interface*Compliant with I2S bus protocol, offering high-quality audio connectivity for IoT devices with audio functionality
I2C Bus*Compatible with I2C bus protocol, supports high-speed mode with data transfer rate of up to 3.3Mbps
SWD InterfaceSerial Wire Debug interface for efficient debugging and development, promoting better performance and faster troubleshooting
AntennaMAIN and GNSS antennas for robust wireless communication and precise positioning capabilities
Control InterfaceAllows smooth operation and precise control, enabling customization of module operation to fit specific requirements
ADC Interface*Two analog-to-digital converters for accurate translation of analog inputs into digital data
GNSS InterfaceSupports GPS, GLONASS, BEIDOU, GALILEO, QZSS, and NAVIC global navigation satellite systems
SPI Interface*Standard SPI interface for high-speed data transfer, suitable for various IoT applications

*Requires SDK - Not available for C16QS



GNSS feature of C16QS

Another important aspect of C16QS's design is its robust GNSS functionality. It supports multiple global navigation satellite systems, including GPS, GLONASS, BEIDOU, GALILEO, QZSS, and NAVIC. This feature, coupled with SBAS Ranging support, enhances its capability for precise positioning and tracking, making it an ideal solution for logistics and tracking applications.

Conclusion

The development of the IoT landscape has been marked by an insatiable demand for innovation, flexibility, efficiency, and affordability. The advent of LTE Cat 1 bis technology, as exemplified by Cavli Wireless' C16QS module, has underscored a crucial shift in the IoT narrative, paving the way for robust, power-efficient, and affordable connectivity solutions.

The C16QS module is a testament to this evolution, embodying the best of cutting-edge technology and affordability. Its efficient pricing structure, combined with high-end features, enables businesses of all sizes to leverage IoT technology, democratizing access and spurring innovation across industries.

The C16QS is a triumph in the field of IoT, merging high performance, superior connectivity, and compact design with cost-effectiveness. With integrated features such as the single-mode LTE Cat 1 bis Cellular Module, eSIM, and GNSS, it offers a comprehensive solution for global IoT requirements. Furthermore, the integration of Cavli Hubble Global Connectivity and Stack Intelligence ensures seamless global deployment and cost-effective maintenance, respectively, thereby bolstering the proposition of the C16QS as a versatile, global solution for IoT applications.

As we look towards a future where IoT is ubiquitous, the C16QS will undoubtedly play a critical role in shaping this reality, fostering a new era of connectivity that is efficient, reliable, and inclusive.
