The Role of Smart Grids in Providing a Sustainable, Resilient, and Connected World

As the demand for reliable and sustainable power grows, traditional power grids are reaching their limits. Conventional grids, with one-way electricity flow from power plants to consumers, struggle integrating modern energy sources to meet increasing demands. This setup leads to inefficiencies, frequent outages, and high transmission losses.

Smart grids represent the next step in energy distribution. These smart energy grids integrate digital technology and two-way communication to enable real-time monitoring, automation, and dynamic energy management. They offer a decentralized approach to electricity flow, allowing homes, businesses, and even electric vehicles (EVs) to become both consumers and producers of energy.

Smart grid technology is necessary for a sustainable energy future. Here, we explore its core components, benefits, and how they intersect with smart city solutions to transform electricity distribution.

The Evolution of Smart Grid Technology: What is a Smart Grid?

A smart grid is an advanced power delivery network that combines traditional grid infrastructure with digital communication, automation, and control systems to manage energy flow. Unlike conventional grids, where electricity flows in a single direction, smart power grids enable bidirectional energy and data transfer, allowing a more dynamic and efficient energy flow.

Conventional grid power flows only one way: from power plants to homes and businesses, with little flexibility or insight into how it’s used. Now, as energy needs grow and new sources like solar and wind join the mix, the grid faces a fresh challenge.

Smart grids are technology-driven smart energy systems turning the conventional grids into a dynamic, and responsive network. Today’s smart power grid talks back, sensing and adapting in real-time, managing energy flow intelligently. It’s more than just power delivery—it’s an interactive system built for a sustainable, connected future.

Smart grids integrate renewable energy sources, adapt to fluctuations in demand, and provide real-time monitoring and control. They enable features like automated fault detection, optimized voltage levels, and distributed energy resources (DERs).

Through this intelligence, smart grids support the transition to a more resilient, eco-friendly smart power grid system. They also lay the foundation for integrating modern technologies such as electric vehicles and smart cities, enhancing energy efficiency and sustainable living.

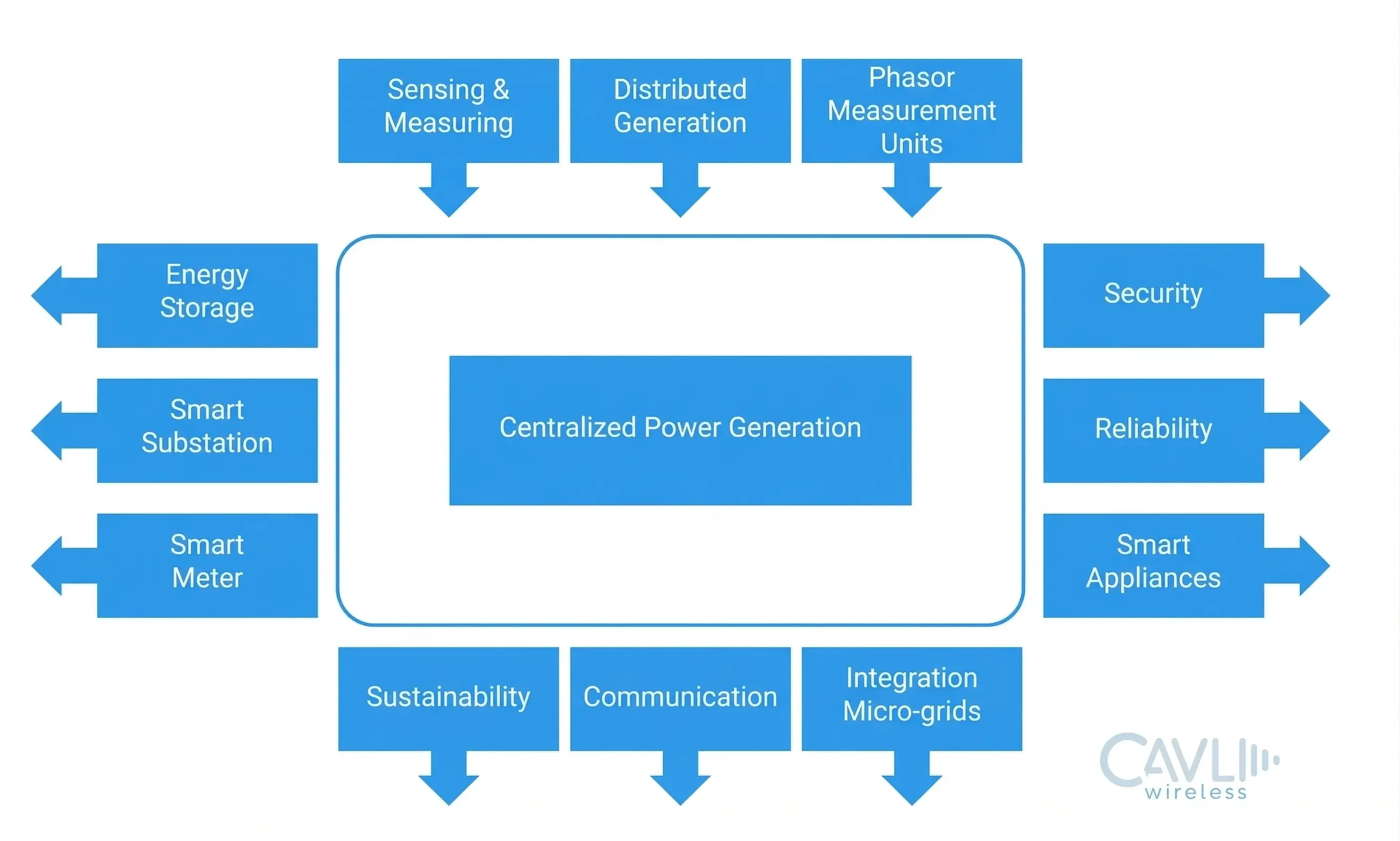

Functioning of Smart Power Grid Systems

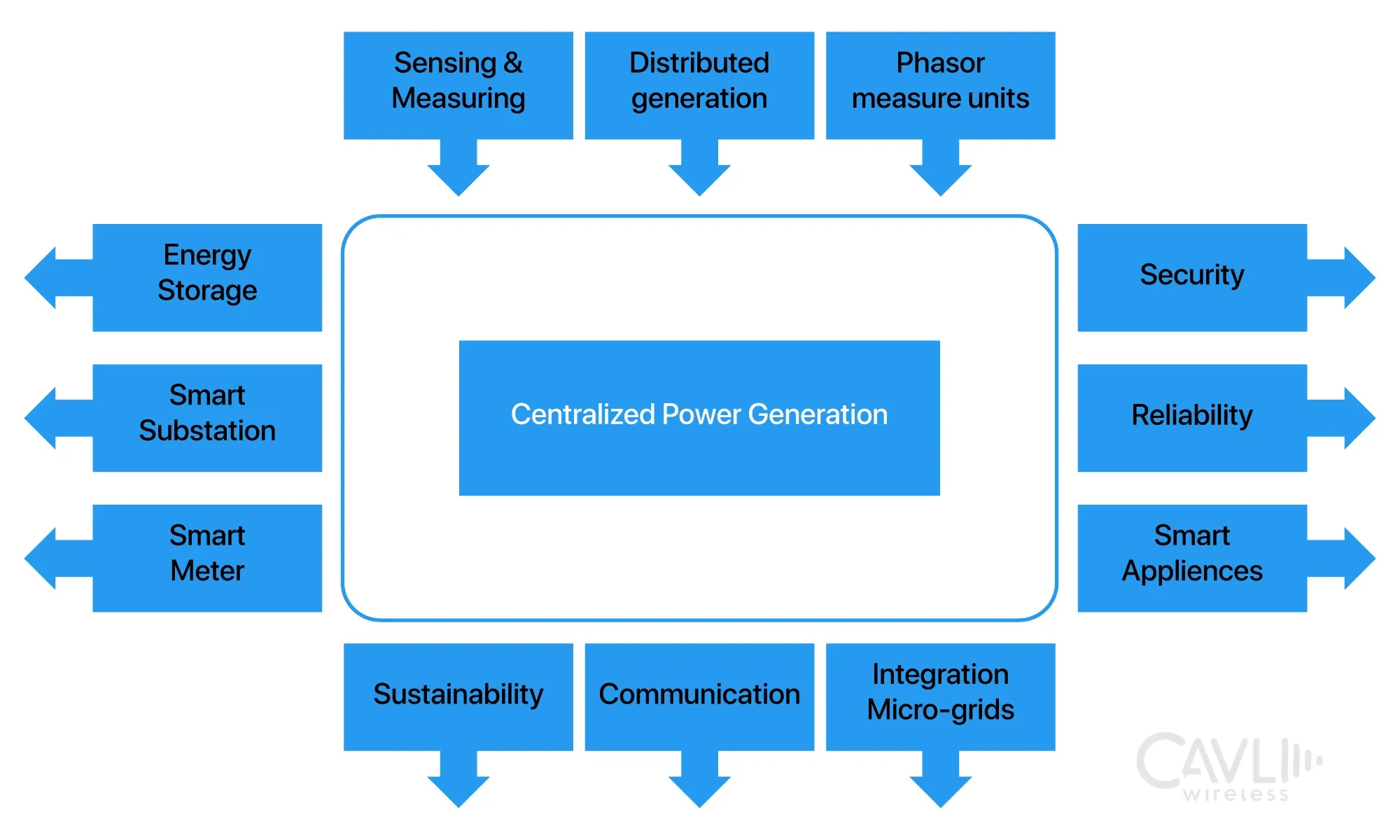

Core Components of Smart Grid Solutions

Smart grid technology relies on a network of interconnected components that work together to monitor, control, and optimize electricity distribution. Here are the main components involved:

1. Smart Meters

Smart meters track electricity usage in real time and communicate this data to both consumers and utility companies. Smart energy grid meters provide precise information about energy consumption patterns, enabling dynamic pricing and helping consumers make informed energy-saving choices.

2. Sensors and Intelligent Electronic Devices (IEDs)

Sensors and IEDs monitor various parameters on the grid, such as voltage, current, and frequency. Intelligent Electronic Devices (IEDs), such as digital relays and controllers, provide localized monitoring and protection, autonomously responding to grid disturbances. These IEDs ensure stable operation by adjusting power flow, managing voltage levels, and isolating faults to reduce outages and their impact on equipment.

To know more about sensors, refer to our blog on sensors in IoT.

3. Advanced Metering Infrastructure (AMI)

AMI is the entire network of smart meters, data collectors, and communication systems in the smart grid infrastructure that transmits usage information to utilities. It enables two-way communication, allowing utilities to receive detailed data and send signals to meters for tasks like remote disconnections or firmware updates.

4. SCADA Systems (Supervisory Control and Data Acquisition)

SCADA systems serve as the control centers, gathering real-time data from across the smart grid network, analyzing it, and facilitating remote control of devices. They allow utilities to monitor grid health, detect issues quickly, and manage power flow, contributing to smart grid management. SCADA identifies potential issues, enabling operators to respond quickly to minimize disruptions and downtime.

5. Communication Networks

These communication networks include cellular IoT (LTE-M, NB-IoT), Field Area Networks (FAN), Wide Area Networks (WAN), and Home Area Networks (HAN). They connect all components of the smart electric grid, including meters, sensors, substations, and control centers. They enable real-time, two-way communication, allowing for constant monitoring, remote control, and fast response to grid events.

6. Distribution Automation (DA)

DA systems automate the control of distribution-level devices such as reclosers, transformers, and voltage regulators. DA enhances the grid’s self-healing capabilities by quickly isolating faults and restoring power, improving reliability and reducing downtime.

7. Energy Storage Systems

Battery Energy Storage Systems (BESS), including lithium-ion and emerging solid-state batteries, store excess energy generated during low-demand periods, which can then be released during peak demand. They balance supply and demand, store energy, and provide backup power during peak times, stabilizing the grid.

8. Renewable Energy Integration Systems

These systems manage the integration of solar, wind, and other renewable energy sources into the grid. They help balance the variability of renewables by adjusting power flow, using storage, and integrating predictive analytics to maintain smart electric grid stability.

9. Substation Automation

Substation automation involves digital relays, sensors, and controllers that monitor and control power flow within substations. It enhances reliability by detecting issues and automatically adjusting settings to keep power flowing in the smart electric grids.

10. Demand Response Programs

Demand response programs encourage consumers to reduce or shift their electricity usage during peak times. They help prevent smart electric grid overloads, reduce energy costs, and allow consumers to participate in stabilizing the grid by adjusting their consumption in response to signals from utilities.

11. Consumer Engagement Platforms

These apps or websites give consumers access to their energy usage data, bill forecasts, and energy-saving tips. They empower consumers to make informed choices, participate in demand response, and even produce their own power if they have renewable sources like solar panels.

12. Cybersecurity Systems

Cybersecurity systems protect smart grid solutions from digital threats by encrypting data, monitoring for intrusions, and enforcing access controls. They ensure the safety, privacy, and integrity of data and operations, which is crucial for a grid that depends heavily on real-time digital communication.

Working of Smart Energy Grid

Monitoring and Data Collection

• Smart meters in homes and businesses collect real-time data on electricity usage with smart grid systems. This information is sent to utility companies, helping them understand how much electricity each area is using.
• Sensors placed on power lines, transformers, and substations gather data about the grid’s condition, like voltage levels and potential faults.

Two-Way Communication

• Unlike traditional grids, where power flows in one direction (from power plant to consumer), a smart grid system enables two-way communication. This means that data can flow from the consumer back to the utility, allowing for more responsive and dynamic energy management.
• With this communication, utility companies can monitor energy needs and grid conditions in real time and send control signals to devices on the grid.

Automation and Control

• Smart grids use automation to make quick adjustments. For example, if there’s a fault on a power line, the smart grid system automatically reroutes electricity to prevent an outage.
• Automated systems like FLISR (Fault Location, Isolation, and Service Restoration) detect faults, isolate the affected area, and restore power elsewhere, often without human intervention.

Consumer Empowerment

• Smart grid solutions allow consumers to monitor and control their energy use. Through apps or websites, consumers can see real-time data on their electricity consumption, costs, and even environmental impact.
• Some consumers with solar panels or electric vehicles can also generate and feed electricity back to the smart energy grid when they have excess.

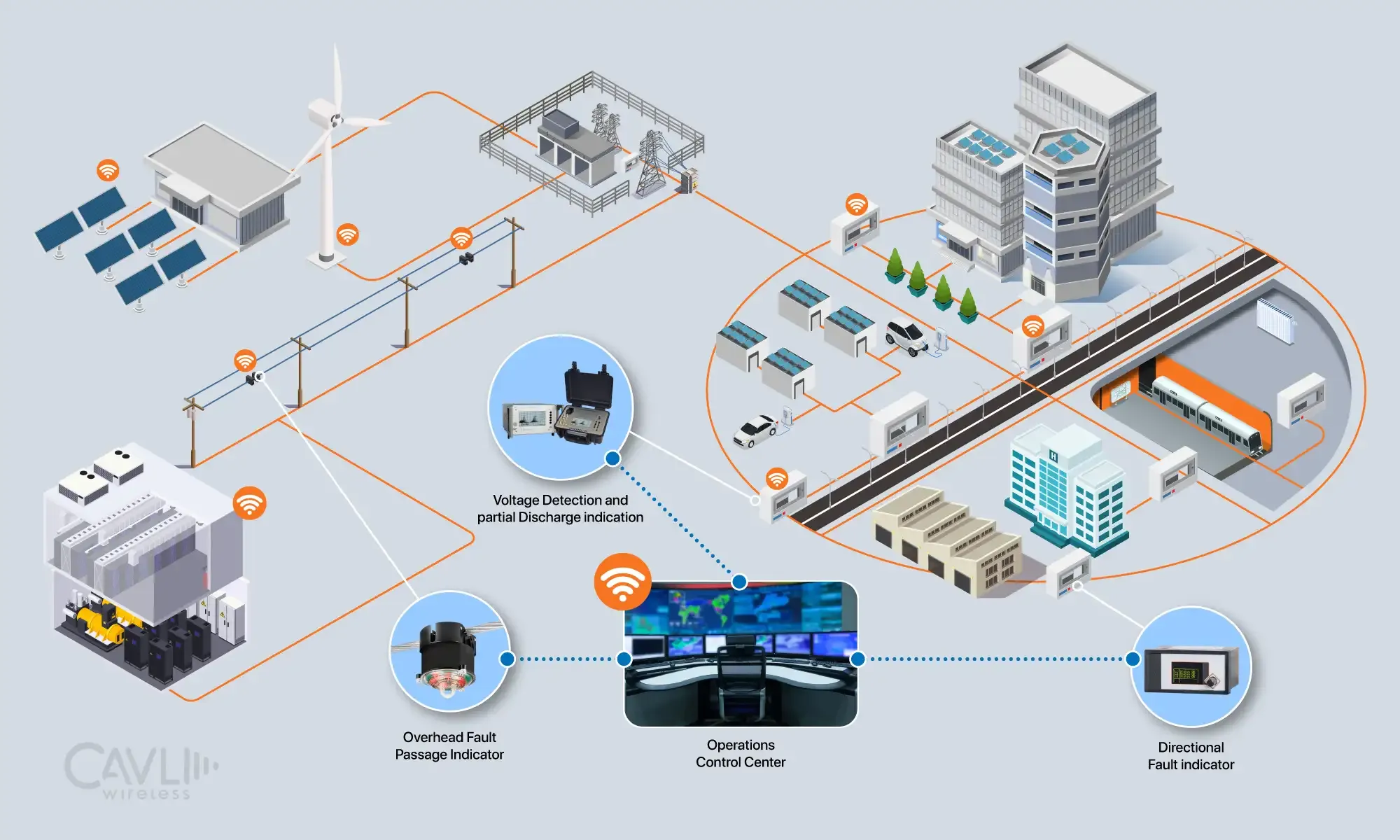

Smart Grid Power Distribution Architecture

Power Generation Layer

• The power generation layer produces electricity, which is the foundation of the grid.
• It comprises traditional power plants (coal, gas, nuclear), renewable sources (solar, wind, hydro), and distributed energy resources (DERs) like small solar installations and backup generators.
• This layer provides the power supply and integrates diverse sources, allowing a mix of traditional and renewable energy. It’s the first step in the energy flow, and it’s designed to respond dynamically to demand by balancing supply with distributed resources.

Transmission Layer

• This layer moves electricity over long distances from generation facilities to local distribution networks.
• It comprises high-voltage transmission lines, substations, transformers, and circuit breakers.
• The transmission layer ensures efficient and reliable power delivery over large areas. It incorporates smart transmission systems that monitor smart grid utilities, adjust voltage, and reroute electricity if needed. Automated substations within this layer gather data on power quality, outages, and grid health, sending this information to control centers for real-time adjustments.

Distribution Layer

• The distribution layer delivers electricity from transmission networks to homes, businesses, and industries.
• It includes local transformers, distribution lines, smart meters, sensors, and other control devices.
• This layer includes distribution automation with technologies like Fault Location, Isolation, and Service Restoration (FLISR), which quickly identifies and isolates faults to minimize outages. Volt/VAR Optimization helps control voltage and reduce energy losses, while smart meters collect real-time data on energy use, enabling dynamic pricing and consumer feedback.

Consumer Layer

• The consumer layer represents the end-users of the smart electric grid technology, including households, businesses, and industrial facilities.
• It includes smart appliances, electric vehicles, energy management systems, and consumer engagement platforms.
• Consumers in a smart grid aren’t just passive recipients of electricity; they can also generate power through rooftop solar panels or contribute stored energy from electric vehicles (through Vehicle-to-Grid or V2G systems). Smart grids enable demand response programs, allowing consumers to adjust usage during peak times, contributing to grid stability and reducing costs.

Communication Layer

• The communication layer enables two-way data transfer between the grid’s components, ensuring information flows between consumers, distribution systems, and control centers.
• It consists of cellular IoT networks (LTE-M, NB-IoT), Field Area Networks (FAN), Wide Area Networks (WAN), and Home Area Networks (HAN).
• This layer provides secure, real-time communication across the grid. FANs and WANs connect devices within a city or region, while HANs connect home devices to the grid, enabling smart meters, remote monitoring, and control of household appliances. By facilitating two-way communication, this layer enables real-time adjustments and supports consumer participation in grid management.

Control and Data Management Layer

• This layer is responsible for monitoring, analyzing, and controlling grid operations through data collected from the entire system.
• It has SCADA (Supervisory Control and Data Acquisition) systems, data analytics platforms, control centers, and cybersecurity systems.
• SCADA systems act as the grid’s central nervous system, continuously monitoring grid health, usage, and performance. Data analytics platforms analyze data from smart meters, sensors, and grid devices, enabling predictive maintenance, load forecasting, and demand response management. Cybersecurity protocols protect data and infrastructure, ensuring the grid is resilient to cyber threats.

Energy Storage Layer

• The energy storage layer stores excess power for future use, especially during peak demand or fluctuations in renewable energy output.
• It contains Battery Energy Storage Systems (BESS), pumped hydro storage, Vehicle-to-Grid (V2G) technology, and hydrogen storage.
• Energy storage systems capture surplus energy when demand is low or renewable generation is high. During peak times, stored energy is released to maintain stability and avoid overloading the grid. This layer is crucial for integrating renewable energy sources, ensuring they provide a consistent power supply even when sun or wind is not available.

Comparison between Conventional and Smart Power Grids

Role of IoT in Smart Grid Management: Protocols and Communication Channels Used in IoT for Smart Grid

IoT in smart grid technology relies on a variety of communication protocols and channels to transmit data reliably and securely across vast areas. These protocols are chosen based on factors like range, data rate, latency, and power consumption.

Communication Protocols

DNP3 (Distributed Network Protocol)

It is ideal for monitoring and controlling components in smart grid integration. It is widely used for SCADA and grid automation in smart grids. It provides robust, reliable data transmission over long distances in smart grid distribution.

IEC 61850

It is designed for substation automation and protection systems. It supports interoperability between different devices, facilitating efficient communication across substations in the smart grid distribution.

Modbus

Modbus is commonly used in industrial applications, including smart grid utilities, for device-to-device communication. It works over TCP/IP, enabling integration with IoT devices for data exchange and control.

MQTT (Message Queuing Telemetry Transport)

MQTT is a lightweight protocol ideal for low-power IoT devices, for efficient data transmission in smart grid networks. It is suitable for sending real-time data from sensors and meters to control systems with low bandwidth and low latency requirements.

To learn more about the role of MQTT in IoT applications, refer to our blog on the MQTT protocol.

CoAP (Constrained Application Protocol)

It is a web-based protocol for low-power devices operating over IP networks. It supports machine-to-machine (M2M) communication and is often used for smart metering and remote control applications in smart grid utilities.

OpenADR (Open Automated Demand Response)

It is a protocol for demand response programs, allowing utilities to communicate with IoT-enabled devices at the consumer level. It enables real-time load adjustments by sending signals to smart meters and smart home devices.

Communication Channels and Networks

Cellular IoT (LTE-M and NB-IoT)

LTE-M provides high bandwidth and low latency, suitable for real-time data from smart meters and sensors.

NB-IoT has lower bandwidth but greater range and building penetration, making it ideal for deep indoor installations and remote devices.

RF Mesh Networks

RF Mesh networks are commonly used for connecting smart meters and sensors within neighborhoods. Mesh networks create a self-healing network where data can hop between devices, ensuring resilience and coverage in local areas.

Field Area Networks (FAN)

FANs connect grid devices within a specific geographic area, often used for applications like distribution automation. WiMAX, private LTE, and RF mesh are technologies used to offer secure, high-bandwidth communication for localized smart grid management.

Wide Area Networks (WAN)

WANs connect larger grid areas, linking substations and control centers over high-capacity fiber optic or microwave links. They support large data volumes with low latency, making them essential for reliable data flow across the smart grid network.

Home Area Networks (HAN)

HANs help connect smart meters to consumer devices, allowing real-time monitoring and control of home appliances. Common protocols used include Zigbee, Wi-Fi, and Bluetooth Low Energy, which enable demand response programs and consumer engagement.

Smart Grid Security Protocols

Public Key Infrastructure (PKI) for encryption and authentication to secure communication between IoT devices.

TLS/SSL for data encryption in transit, ensuring that data transferred over the network remains confidential and unaltered.

VPNs and network segmentation to protect sensitive data and prevent unauthorized access are critical for IoT devices in the smart grid.

The Importance of Smart Grid Security When Interconnecting with IoT Applications

Smart grids are integral to smart city development, connecting energy systems with transportation, waste, and water management. Smart transportation benefits from smart grids by supporting EV charging infrastructure and vehicle-to-grid systems, allowing electric vehicles to serve as mobile storage for the smart grid network.

As smart grids integrate with IoT applications—such as smart cities, electric vehicles (EVs), and home energy management systems—security becomes even more critical due to the expanded network and the diverse range of devices and systems interconnected within it.

Smart grid security encompasses the practices, technologies, and protocols designed to protect the digital and physical infrastructure of smart grids from cyber threats, unauthorized access, and potential disruptions.

Data Protection and Privacy

Smart grids collect extensive data from consumers, including usage patterns, which help optimize energy distribution but also hold sensitive information. When interconnected with applications in smart cities or smart homes, this data becomes part of a larger network, making it a potential target for cyber threats.

Protecting this data through encryption and authentication protocols is essential to maintain privacy and secure smart grids from data leaks, and ensure that only authorized entities can access critical information.

Preventing Unauthorized Control of Grid Systems

In a smart city environment, IoT devices like street lights, traffic signals, EV charging stations, and building systems may connect to the grid. If any of these devices are compromised, it could allow attackers to gain access to the grid’s control systems.

Network segmentation and firewalls limit access points and help secure each system within its domain, preventing unauthorized control over the grid and minimizing the spread of any potential breach.

Maintaining Grid Stability and Reliability

Smart grids depend on a stable network to manage energy flow, balance supply and demand, and integrate renewables. However, when integrated with IoT applications like EV charging, load fluctuations can increase as devices connect and disconnect.

Intrusion Detection Systems (IDS) and Intrusion Prevention Systems (IPS) continuously monitor grid traffic for anomalies or threats, ensuring a quick response to disruptions that could destabilize the grid.

Mitigating the Risk of Cyber Attacks

With increased interconnectivity, each IoT device represents a potential entry point for cyber threats. Attackers could exploit these entry points to cause disruptions, like grid overloads or power outages, that could affect an entire city or region.

Public Key Infrastructure (PKI) and multi-factor authentication protect access to grid systems, while encryption protocols secure data in transit, significantly reducing the risk of cyberattacks spreading from IoT devices into the core grid.

Resilience Against Physical and Digital Threats

Smart grids connected to IoT systems in smart cities or with renewable sources face both physical (e.g., tampering with infrastructure) and digital (e.g., malware, phishing) threats. A multi-layered security approach, with tamper detection, access control systems, and encrypted communication channels, builds resilience by securing both the physical and digital components of the grid.

Support for Decentralized Energy Management

With smart grid technology, consumers can become prosumers by generating and sharing energy through solar panels, EV batteries, and microgrids. However, this decentralized energy flow adds complexity and security needs.

Security protocols like IEC 61850 (for substation automation) and OpenADR (for demand response) support secure, standardized communication between devices and the grid, ensuring safe and controlled interaction between decentralized energy sources and the central grid.

Benefits of Smart Grid Power Systems

Optimized Load Management

Automated load balancing and demand response ensure efficient energy distribution, lowering peak load pressures and reducing the need for additional infrastructure.

Reduced Transmission Losses

Smart grids minimize energy losses through Volt/VAR optimization and real-time adjustments, improving overall energy efficiency and reducing operational costs.

Energy Theft Detection

Enhanced monitoring capabilities make it easier to detect and prevent energy theft, which can significantly reduce revenue losses.

Automated Fault Detection and Restoration

Smart grids can automatically detect, isolate, and address faults, resulting in reduced outage durations and improved reliability metrics (e.g., SAIDI and SAIFI scores).

Personalized Services and Pricing

Smart grids support dynamic pricing models, allowing customers to save by using energy during off-peak times.

Electric Vehicle (EV) Integration and Services

Smart grids facilitate EV charging and Vehicle-to-Grid (V2G) services, allowing grid operators to leverage EV batteries for energy storage and balancing, providing new revenue streams.

Lower Carbon Footprint

With real-time load balancing and optimized energy distribution, smart grids reduce reliance on fossil fuel-based generation and enhance grid efficiency, contributing to sustainability targets.

Closing Notes

Smart grids represent a transformative leap in energy management, driven by the growing demand for efficiency, reliability, and sustainability. With IoT integration, automated fault detection, and renewable energy support, smart grids enhance resilience and empower consumers. Looking ahead, advancements like AI-driven predictive analytics, decentralized energy markets, and blockchain-based P2P trading promise even smarter, more adaptive grids. Ultimately, smart grids play a crucial role in creating a sustainable, carbon-neutral energy future, supporting global climate goals and resilient communities.
