What is IoT Architecture?

IoT architecture is the framework that connects devices, networks, data processing, user interfaces, and applications so data moves securely and efficiently from sensors to insights at scale. A sound architecture defines layers, components, and data flow to create a cohesive system with reliability, performance, robust security, and scalability—powering use cases from smart cities to industrial automation.

By integrating hardware (sensors, gateways) and software (analytics, applications), IoT architecture enables seamless communication and intelligent decision-making. Imagine IoT as the Wakanda empire, with IoT architecture as its vibranium network—the technological marvel that powers and connects all devices in the tech world.

We’ve all heard about the Internet of Things (IoT). When you hear the word 'IoT,' what comes to your mind? Autonomous cars, smart homes, automated industrial machinery, or smart lighting? The list goes on. IoT refers to a network of connected devices that communicate seamlessly through the internet, sharing data and enabling automation across industries like healthcare, agriculture, and smart cities. The architecture of IoT is the backbone that makes this connectivity possible, ensuring devices, sensors, and applications work together to deliver intelligent solutions.

Ever imagined coming home after a hectic day to find your space perfectly set instantly? Picture this: your lights adjust as you enter, the thermostat sets the perfect temperature, and your favorite music plays in the background. This is the magic of IoT in smart home automation. Beyond homes, IoT powers connected vehicles, smart agriculture, and robotic surgery, revolutionizing industries with data-driven innovation. Learn more about Cavli’s IoT solutions at our About Us page.

IoT Market Size

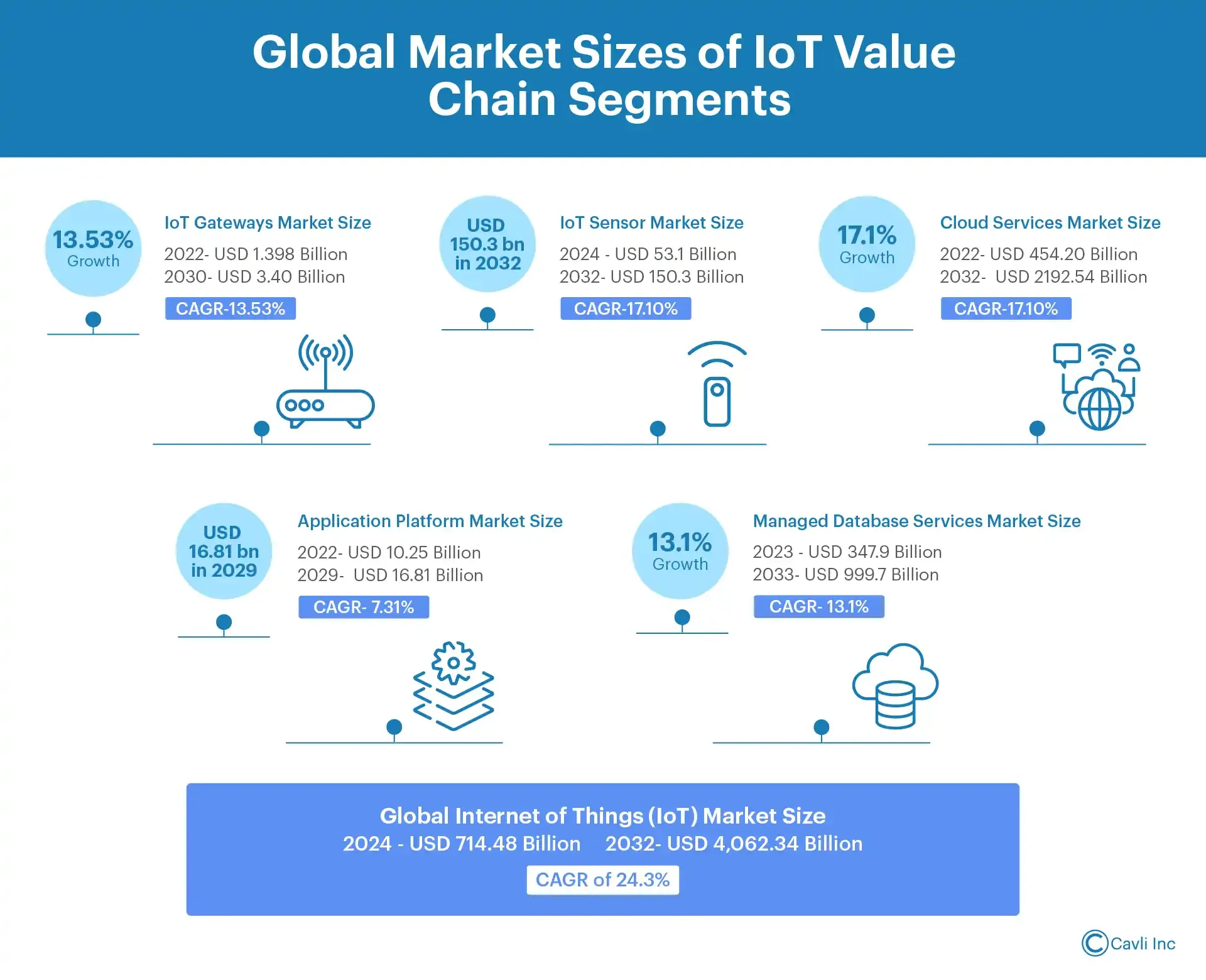

According to Fortune Business Insights, the global IoT market was valued at USD 714.48 billion in 2024 and is expected to grow to USD 4,062.34 billion by 2032, with a CAGR of 24.3% during the forecast period (2024-2032).

IoT architecture layers: 3-, 5-, and 7-layer models

Understanding IoT architecture layers is fundamental to designing efficient systems. The architecture can be simplified into a 3-layer model (Perception, Network, Application) or expanded into a 5-layer or 7-layer model for complex applications, based on the Open System Interconnection (OSI) model.

3-Layer IoT Architecture

• Perception Layer: Collects data using sensors (e.g., temperature, motion) and actuators (e.g., smart lights). Technologies like Bluetooth, ZigBee, and Wi-Fi are common.
• Network Layer: Transmits data securely using protocols like MQTT, CoAP, or 5G, with gateways ensuring connectivity to the cloud.
• Application Layer: Delivers user interfaces, such as mobile apps or dashboards, for controlling devices and visualizing data.

5-Layer IoT Architecture

For advanced applications, two additional layers are included:

• Data Processing Layer: Analyzes and processes data, often at the edge, to reduce latency and cloud dependency.
• Middleware Layer: Manages device communication, security, and interoperability using standardized protocols.

7-Layer IoT Architecture

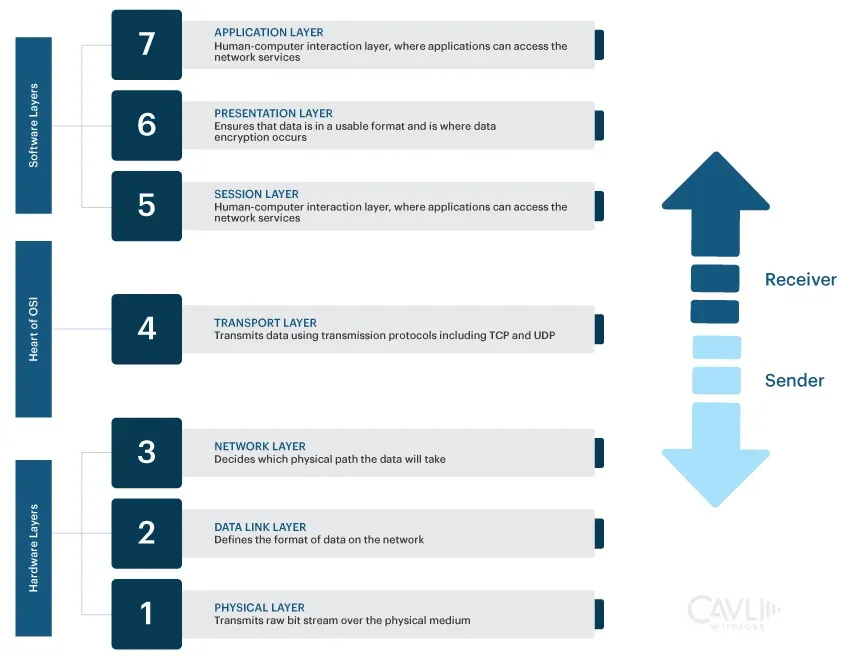

The 7-layer architecture provides a detailed framework, as shown below:

• Physical Layer

  Includes devices and transmission mediums, converting data into binary form for wireless communication (e.g., LoRaWAN, satellite).

• Data Link Layer

  Manages data transfer with protocols like MACsec and LLC for security and error control.

• Network Layer

  Routes data packets using IP addressing for efficient transmission across networks. Learn more about network communication in our ARP networking blog.

• Transport Layer

  Ensures reliable data transfer with protocols like TCP and UDP, handling errors and acknowledgments.

• Session Layer

  Manages communication sessions, determining session duration between systems.

• Presentation Layer

  Translates data into a usable format for the Application Layer, ensuring compatibility.

• Application Layer

  Provides user interfaces (e.g., HTTP, HTTPS, FTP) for end-user interaction and control.

Components of IoT: devices, gateway, platform, applications

In today’s connected world, understanding the journey from IoT data collection to actionable business insights is crucial. By optimizing IoT components, businesses can leverage raw data to make informed decisions and drive efficiencies across operations.

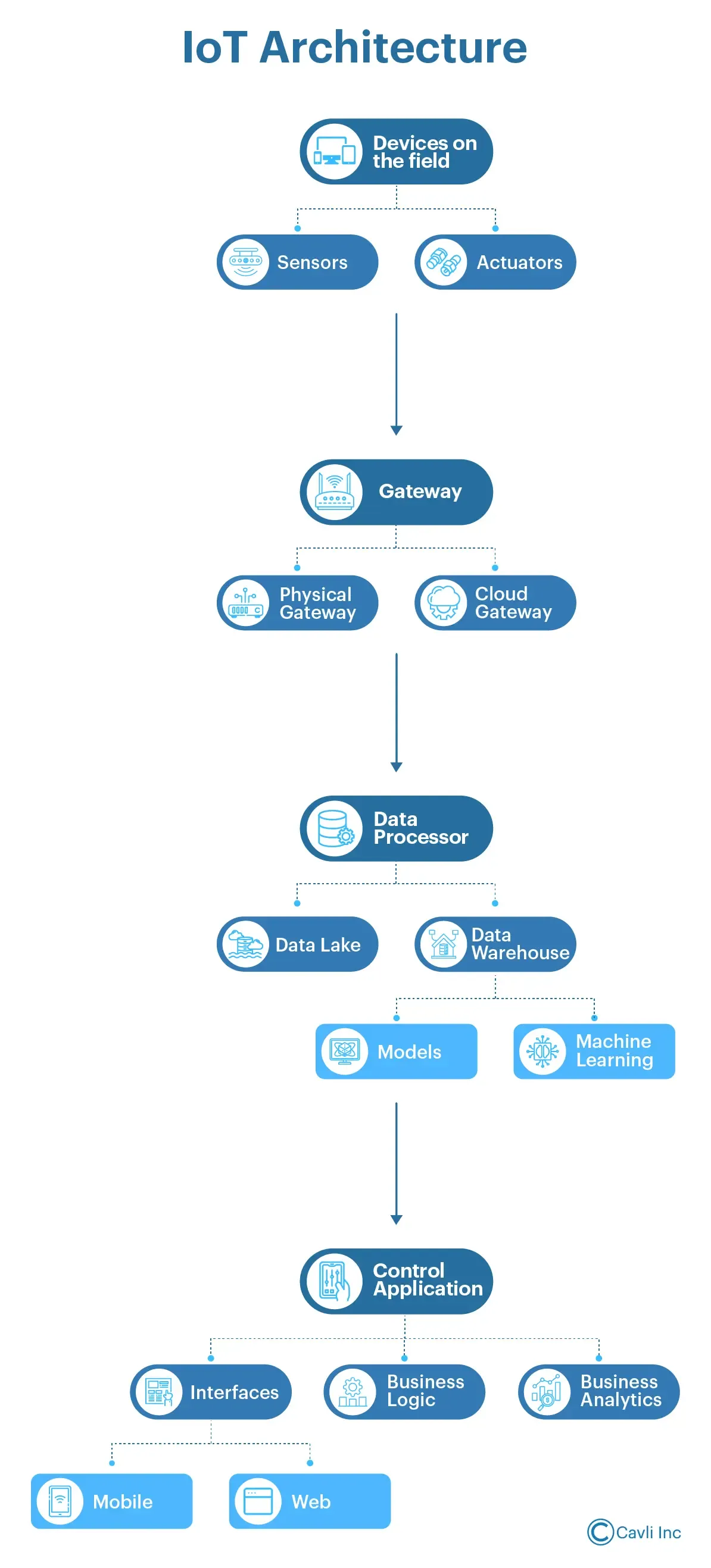

Components of IoT Architecture

1. Devices on the Field

Devices equipped with sensors and actuators collect and act on critical data, enabling real-time decision-making. These components of IoT support bidirectional communication, sending data to the cloud and receiving instructions.

1.1. Sensors

Sensors detect environmental metrics like temperature, humidity, pressure, or motion (e.g., smoke detectors in smart homes). Examples include:

• Temperature sensors
• Humidity sensors
• Pressure sensors
• Motion sensors

1.2. Actuators

Actuators perform actions like opening valves or controlling lights (e.g., smart locks). Examples include:

• Valves
• Motors
• Lights
• Pumps

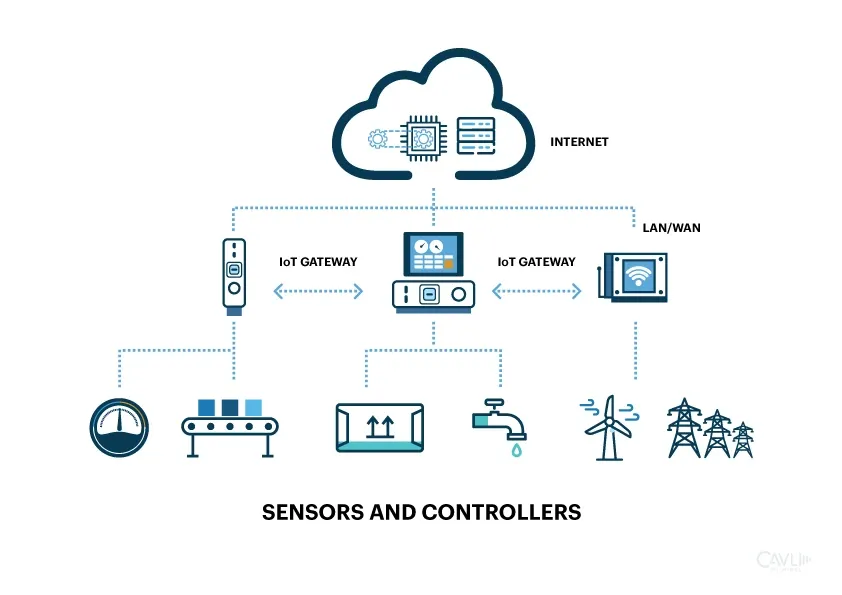

2. Physical Gateways

Gateways connect devices to cloud platforms, ensuring data security and integrity. They aggregate data, reduce cloud load, and filter raw data for efficient processing.

2.1. Cloud Gateways

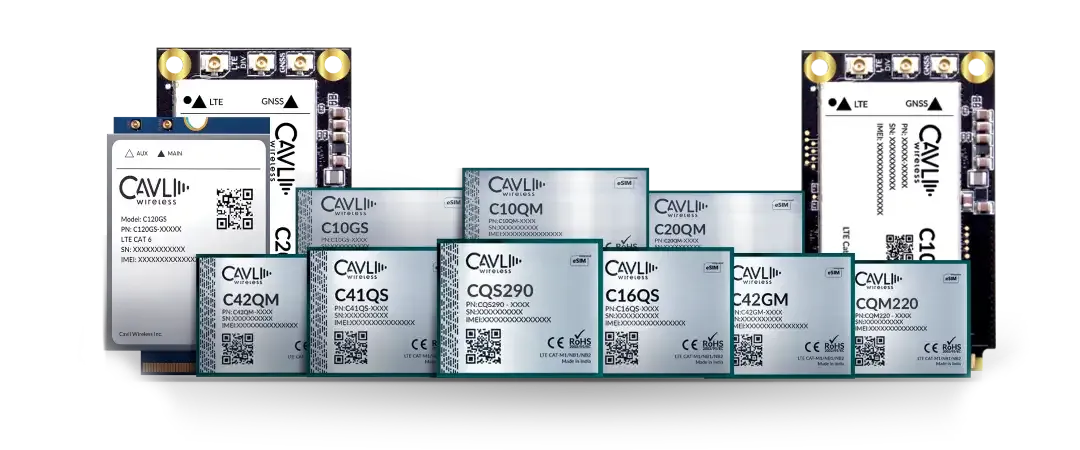

Cloud gateways transform and route data to platforms like AWS IoT Core or Azure IoT Hub, adding security. Cavli’s CQS290 module supports eSIM integration for seamless connectivity. Functions include:

• Transforming data into suitable formats.
• Routing data to data lakes, warehouses, or analytics platforms.
• Implementing security measures for data transmission.

3. Data Lake

Data lakes store large volumes of unstructured data (e.g., images, videos) from IoT devices, offering flexibility for analysis.

3.1. Data Warehouse

Data warehouses organize processed data for business intelligence and high-speed querying. Functions include:

• Structured schema for efficient querying.
• High-speed data retrieval and analysis.
• Integrating data from multiple sources.

3.1.1. Machine Learning and Models

Machine learning leverages data for predictive analytics, anomaly detection, and automation (e.g., predicting equipment failures in industry 4.0).

• Anticipating equipment failures.
• Identifying anomalies for security or malfunctions.
• Enabling autonomous decisions.

4. Control Applications

Control applications automate device behavior based on sensor data, enabling efficient remote management.

• Automating processes with real-time data.
• Enabling remote device control.
• Optimizing operations autonomously.

4.1. User Interfaces

User interfaces, available on mobile and web platforms, facilitate interaction:

• 4.1.1. Mobile

  Smartphones and tablets for IoT control (e.g., patient monitoring apps).

• 4.1.2. Web

  Web browsers for system access.

4.2. Business Logic

Business logic defines rules and algorithms for efficient decision-making:

• Defining automation rules.
• Implementing intelligent algorithms.
• Designing process workflows.

4.3. Business Analytics

Business analytics improves performance with:

• Performance Monitoring: Tracking KPIs.
• Trend Analysis: Predicting trends.
• Optimization: Enhancing processes.

Challenges and Solutions in IoT Architecture

Implementing the architecture of IoT involves challenges, but strategic solutions ensure success:

• Scalability

  With billions of devices, architectures must handle growing data volumes. Solutions include edge computing, IPv6, and data reduction techniques. For instance, Singapore’s smart city uses edge computing to process traffic data locally, reducing latency.

• Security

  Vulnerabilities require zero-trust architecture, AES/RSA encryption, blockchain (BIoT), and hardware-rooted identities to protect data.

• Privacy and Data Protection

  Balancing data collection with user consent involves anonymization and GDPR compliance.

• Interoperability

  Standardized protocols like MQTT, CoAP, AMQP, and DDS ensure seamless communication.

• Data Management and Analytics

  Data lakes, warehouses, and tools like Kafka or TimescaleDB handle massive IoT data efficiently. See our ARP networking blog for network communication insights.

• Resource Constraints

  Edge computing, caching, and sleep scheduling optimize constrained devices.

• Real-Time Analysis

  Edge computing and low-latency protocols reduce delays for applications like autonomous vehicles.

• Heterogeneity

  Flexible architectures with standardized frameworks integrate diverse devices.

Emerging Trends in IoT Architecture

The IoT architecture landscape is evolving with technological advancements:

• AIoT (AI and IoT Integration): Combines AI with IoT for predictive maintenance and anomaly detection (e.g., optimizing industrial equipment).
• Edge Computing: Processes data at the edge for low latency, critical for autonomous vehicles.
• 5G and Advanced Connectivity: High-speed 5G networks support massive IoT deployments, as seen in Barcelona’s smart cities, with 6G on the horizon. Explore our CQS315/CQS325 modules for 5G connectivity.
• Digital Twins: Virtual models improve urban planning (e.g., traffic simulation).
• Blockchain in IoT (BIoT): Ensures secure data transactions in supply chains.
• Smart Cities: Cities like Singapore optimize traffic and waste management.
• Wearables Beyond Fitness: Healthcare wearables monitor patient vitals.
• Connected Vehicles and Smart Mobility: Enable real-time traffic updates and autonomous driving.
• Sustainability: Optimizes energy and waste in smart cities.
• Ambient Intelligence: Creates adaptive environments in smart homes.
• Quantum Computing: Emerging for complex analytics and security.

The Strategic Edge: Why a Robust IoT Architecture is Crucial

A robust IoT architecture ensures scalability, flexibility, and reliability for businesses:

• Scalability

  Handles growing device and data volumes without performance degradation. For example, a smart city’s traffic system scales to manage increasing sensors and cameras.

• Flexibility

  Accommodates diverse devices and protocols like MQTT, CoAP, and HTTP. In manufacturing, it integrates machinery from different vendors.

• Reliability

  Ensures continuous operation and minimal downtime in critical applications like healthcare IoMT, processing real-time patient data securely.

Closing Notes

The architecture of IoT is the foundation of connected systems, driving innovation across industries like healthcare, smart cities, and manufacturing. By addressing challenges like scalability and security, and embracing trends like AIoT and 5G, businesses can build robust, future-proof IoT solutions. Explore more IoT resources in our Learning Hub or contact us for tailored IoT solutions.
